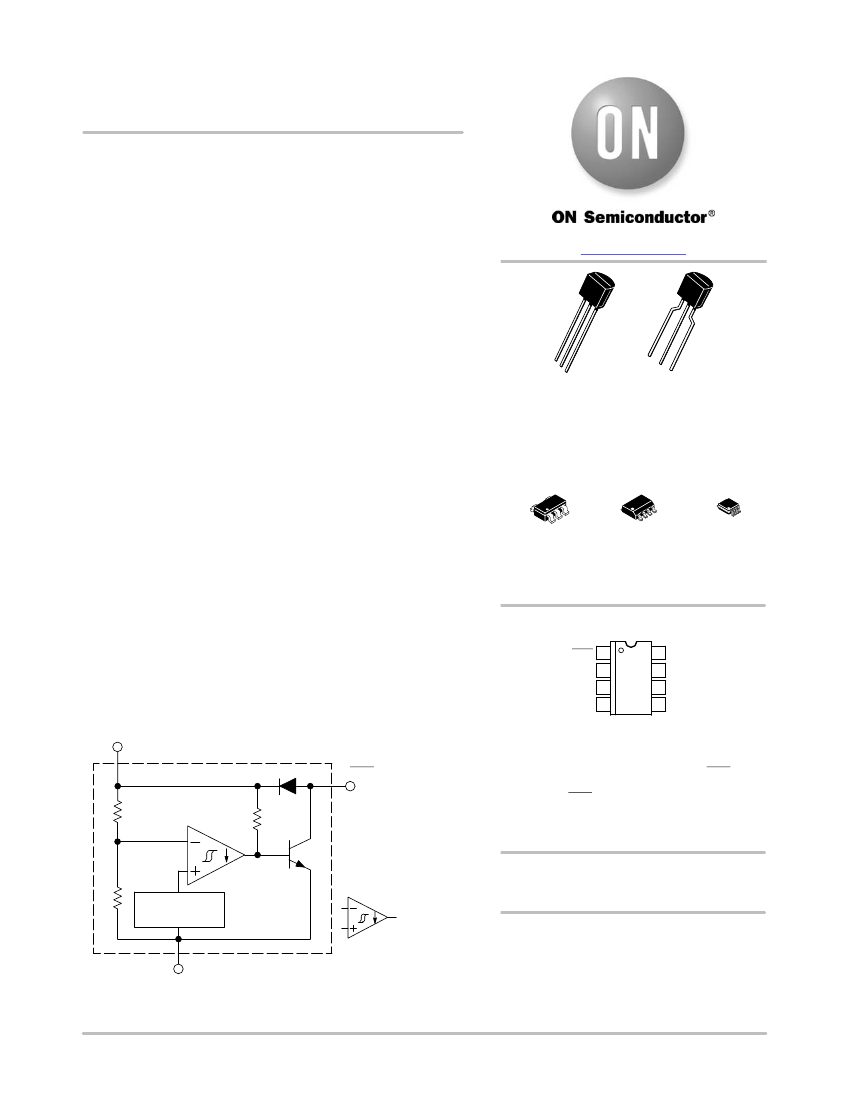

MC34164, MC33164,
NCV33164
Micropower Undervoltage
Sensing Circuits
The MC34164 series are undervoltage sensing circuits specifically
designed for use as reset controllers in portable microprocessor based
systems where extended battery life is required. These devices offer
the designer an economical solution for low voltage detection with a
single external resistor. The MC34164 series features a bandgap
reference, a comparator with precise thresholds and built−in hysteresis
to prevent erratic reset operation, an open collector reset output
capable of sinking in excess of 6.0 mA, and guaranteed operation
down to 1.0 V input with extremely low standby current. The MC
devices are packaged in 3−pin TO−92 (TO−226AA), micro size
TSOP−5, 8−pin SOIC−8 and Micro8™ surface mount packages. The
NCV device is packaged in SOIC−8.
Applications include direct monitoring of the 3.0 V or 5.0 V
MPU/logic power supply used in appliance, automotive, consumer,
and industrial equipment.
Features
www.onsemi.com
3
STRAIGHT LEAD
BULK PACK
12
1
3
BENT LEAD
TAPE & REEL
AMMO PACK
2
TO−92 (TO−226AA)
P SUFFIX
CASE 29
•
•
•
•
•
•
•
•
•
Temperature Compensated Reference
Monitors 3.0 V (MC34164−3) or 5.0 V (MC34164−5) Power Supplies
Precise Comparator Thresholds Guaranteed Over Temperature
Comparator Hysteresis Prevents Erratic Reset
Reset Output Capable of Sinking in Excess of 6.0 mA
Internal Clamp Diode for Discharging Delay Capacitor
Guaranteed Reset Operation With 1.0 V Input
Extremely Low Standby Current: As Low as 9.0
mA
Economical TO−92 (TO−226AA), TSOP−5, SOIC−8 and Micro8
Surface Mount Packages
•
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
•
These Devices are Pb−Free and are RoHS Compliant
Input
Reset
5
1
TSOP−5
SN SUFFIX
CASE 483
8
1
SOIC−8
D SUFFIX
CASE 751
8
1
Micro8
DM SUFFIX
CASE 846A
PIN CONNECTIONS
Reset 1
Input 2
N.C. 3
Ground 4
(Top View)
8 N.C.
7 N.C.
6 N.C.
5 N.C.
TSOP−5
Pin 1.
2.
3.
4.
5.
Ground
Input
Reset
NC
NC
TO−92
Pin 1. Reset
2. Input
3. Ground
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
1.2 V
ref
= Sink Only
Positive True Logic
DEVICE MARKING INFORMATION
See general marking information in the device marking
section on page 8 of this data sheet.
GND
Figure 1. Representative Block Diagram
This device contains 28 active transistors.
©
Semiconductor Components Industries, LLC, 2016
1
October, 2016 − Rev. 19
Publication Order Number:
MC34164/D
MC34164, MC33164, NCV33164
MAXIMUM RATINGS
Rating
Power Input Supply Voltage
Reset Output Voltage
Reset Output Sink Current
Clamp Diode Forward Current, Reset to Input Pin (Note 1)
Power Dissipation and Thermal Characteristics
P Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
D Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
DM Suffix, Plastic Package
Maximum Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Air
Operating Junction Temperature
Operating Ambient Temperature Range
MC34164 Series
MC33164 Series, NCV33164
Storage Temperature Range
Electrostatic Discharge Sensitivity (ESD)
Human Body Model (HBM)
Machine Model (MM)
Symbol
V
in
V
O
I
Sink
IF
Value
−1.0 to 12
−1.0 to 12
Internally
Limited
100
Unit
V
V
mA
mA
P
D
R
qJA
P
D
R
qJA
P
D
R
qJA
T
J
T
A
700
178
700
178
520
240
+150
0 to +70
− 40 to +125
mW
°C/W
mW
°C/W
mW
°C/W
°C
°C
T
stg
ESD
− 65 to +150
4000
200
°C
V
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
MC34164−3, MC33164−3 SERIES, NCV33164−3
ELECTRICAL CHARACTERISTICS
(For typical values T
A
= 25°C, for min/max values T
A
is the operating ambient temperature
range that applies [Notes 2 & 3], unless otherwise noted.)
Characteristic
COMPARATOR
Threshold Voltage
High State Output (V
in
Increasing)
Low State Output (V
in
Decreasing)
Hysteresis (I
Sink
= 100
mA)
RESET OUTPUT
Output Sink Saturation
(V
in
= 2.4 V, I
Sink
= 1.0 mA)
(V
in
= 1.0 V, I
Sink
= 0.25 mA)
Output Sink Current (V
in
, Reset = 2.4 V)
Output Off−State Leakage
(V
in
, Reset = 3.0 V)
(V
in
, Reset = 10 V)
Clamp Diode Forward Voltage, Reset to Input Pin (I
F
= 5.0 mA)
TOTAL DEVICE
Operating Input Voltage Range
Quiescent Input Current
V
in
= 3.0 V
V
in
= 6.0 V
V
in
I
in
−
−
9.0
24
15
40
1.0 to 10
−
−
V
mA
V
OL
−
−
I
Sink
I
R(leak)
Symbol
Min
Typ
Max
Unit
V
V
IH
V
IL
V
H
2.55
2.55
0.03
2.71
2.65
0.06
2.80
2.80
−
V
0.14
0.1
12
0.02
0.02
0.9
0.4
0.3
30
0.5
1.0
1.2
V
mA
mA
−
−
6.0
V
F
0.6
1. Maximum package power dissipation limits must be observed.
2. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
T
high
= +70°C for MC34164
3. T
low
= 0°C for MC34164
= − 40°C for MC33164, NCV33164
= +125°C for MC33164, NCV33164
www.onsemi.com
2
MC34164, MC33164, NCV33164
MC34164−5, MC33164−5 SERIES, NCV33164−5
ELECTRICAL CHARACTERISTICS
(For typical values T
A
= 25°C, for min/max values T
A
is the operating ambient temperature
range that applies [Notes 5 & 6], unless otherwise noted.)
Characteristic
COMPARATOR
Threshold Voltage
High State Output (V
in
Increasing)
Low State Output (V
in
Decreasing)
Hysteresis (I
Sink
= 100
mA)
RESET OUTPUT
Output Sink Saturation
(V
in
= 4.0 V, I
Sink
= 1.0 mA)
(V
in
= 1.0 V, I
Sink
= 0.25 mA)
Output Sink Current (V
in
, Reset = 4.0 V)
Output Off−State Leakage
(V
in
, Reset = 5.0 V)
(V
in
, Reset = 10 V)
Clamp Diode Forward Voltage, Reset to Input Pin (I
F
= 5.0 mA)
TOTAL DEVICE
Operating Input Voltage Range
Quiescent Input Current
V
in
= 5.0 V
V
in
= 10 V
V
in
I
in
−
−
12
32
20
50
1.0 to 10
−
−
V
mA
V
OL
−
−
I
Sink
I
R(leak)
Symbol
Min
Typ
Max
Unit
V
V
IH
V
IL
V
H
4.15
4.15
0.02
4.33
4.27
0.09
4.45
4.45
−
V
0.14
0.1
20
0.02
0.02
0.9
0.4
0.3
50
0.5
2.0
1.2
V
mA
mA
−
−
7.0
V
F
0.6
4. Maximum package power dissipation limits must be observed.
5. Low duty cycle pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
T
high
= +70°C for MC34164
6. T
low
= 0°C for MC34164
= − 40°C for MC33164, NCV33164
= +125°C for MC33164, NCV33164
7. NCV prefix is for automotive and other applications requiring site and change control.
10
R
L
= 82 k to V
in
T
A
= 25°C
10
R
L
= 82 k to V
in
T
A
= 25°C
VO , OUTPUT VOLTAGE (V)
VO , OUTPUT VOLTAGE (V)
4.0
6.0
8.0
10
8.0
6.0
4.0
2.0
0
0
8.0
6.0
4.0
2.0
0
2.0
0
2.0
4.0
6.0
8.0
10
V
in
, INPUT VOLTAGE (V)
V
in
, INPUT VOLTAGE (V)
Figure 2. MC3X164−3 Reset Output
Voltage versus Input Voltage
Figure 3. MC3X164−5 Reset Output
Voltage versus Input Voltage
www.onsemi.com
3
MC34164, MC33164, NCV33164
5.0
V O , OUTPUT VOLTAGE (V)
V O , OUTPUT VOLTAGE (V)
4.0
3.0
2.0
1.0
R
L
= 82 k to V
in
T
A
= 25°C
0
2.62
2.66
2.70
2.74
2.78
0
4.22
4.26
5.0
4.0
3.0
2.0
1.0
R
L
= 82 k to V
in
T
A
= 25°C
4.30
4.34
4.38
V
in
, INPUT VOLTAGE (V)
V
in
, INPUT VOLTAGE (V)
Figure 4. MC3X164−3 Reset Output
Voltage versus Input Voltage
Figure 5. MC3X164−5 Reset Output
Voltage versus Input Voltage
2.76
V in , THRESHOLD VOLTAGE (V)
V in , THRESHOLD VOLTAGE (V)
Upper Threshold
High State Output
2.72
4.36
4.32
Upper Threshold
High State Output
2.68
4.28
2.64
Lower Threshold
Low State Output
4.24
Lower Threshold
Low State Output
2.60
- 50
- 25
0
25
50
75
100
125
4.20
- 50
- 25
0
25
50
75
100
125
T
A
, AMBIENT TEMPERATURE (°C)
T
A
, AMBIENT TEMPERATURE (°C)
Figure 6. MC3X164−3 Comparator Threshold
Voltage versus Temperature
Figure 7. MC3X164−5 Comparator Threshold
Voltage versus Temperature
50
40
30
20
10
0
T
A
= 0°C
T
A
= 70°C
T
A
= 25°C
I in, INPUT CURRENT (
μ
A)
50
40
30
20
10
0
T
A
= 25°C
I in, INPUT CURRENT (
μ
A)
T
A
= 0°C
T
A
= 70°C
0
2.0
4.0
6.0
8.0
10
0
2.0
4.0
6.0
8.0
10
V
in
, INPUT VOLTAGE (V)
V
in
, INPUT VOLTAGE (V)
Figure 8. MC3X164−3 Input Current
versus Input Voltage
Figure 9. MC3X164−5 Input Current
versus Input Voltage
www.onsemi.com
4
MC34164, MC33164, NCV33164
4.0
V OL, OUTPUT SATURATION (V)
V OL, OUTPUT SATURATION (V)
V
in
= 2.4 V
3.0
T
A
= 70°C
T
A
= 25°C
2.0
T
A
= 25°C
T
A
= 0°C
1.0
T
A
= 70°C
0
0
4.0
8.0
12
16
20
V
Sink
, SINK CURRENT (mA)
T
A
= 0°C
4.0
V
in
, Reset = 4 V
3.0
T
A
= 25°C
T
A
= 25°C
T
A
= 70°C
T
A
= 0°C
2.0
T
A
= 0°C
1.0
T
A
= 70°C
0
0
4.0
8.0
12
16
20
I
Sink
, SINK CURRENT (mA)
Figure 10. MC3X164−3 Reset Output
Saturation versus Sink Current
Figure 11. MC3X164−5 Reset Output
Saturation versus Sink Current
32
I F , FORWARD CURRENT (mA)
Reset
24
V
in
= 0 V
T
A
= 25°C
90%
V
in
16
5.0 V
4.0 V
V
in
43k
Reset
V
in
= 5.0 V to 4.0 V
R
L
= 43 k
T
A
= 25°C
8.0
10
%
5.0V
4.0V
Ref
0
0
0.4
0.8
V
F
, FORWARD VOLTAGE (V)
1.2
1.6
5.0
ms/DIV
Figure 12. Clamp Diode Forward Current
versus Voltage
Figure 13. Reset Delay Time
(MC3X164−5 Shown)
Input
Power
Supply
Reset
R
Reset
C
DLY
Microprocessor
Circuit
1.2 V
ref
t
DLY
= RC
DLY
In
GND
1−
1
V
th(MPU)
V
in
A time delayed reset can be accomplished with the addition of C
DLY
. For systems with extremely fast power
supply rise times (< 500 ns) it is recommended that the RC
DLY
time constant be greater than 5.0
ms.
V
th(MPU)
is
the microprocessor reset input threshold.

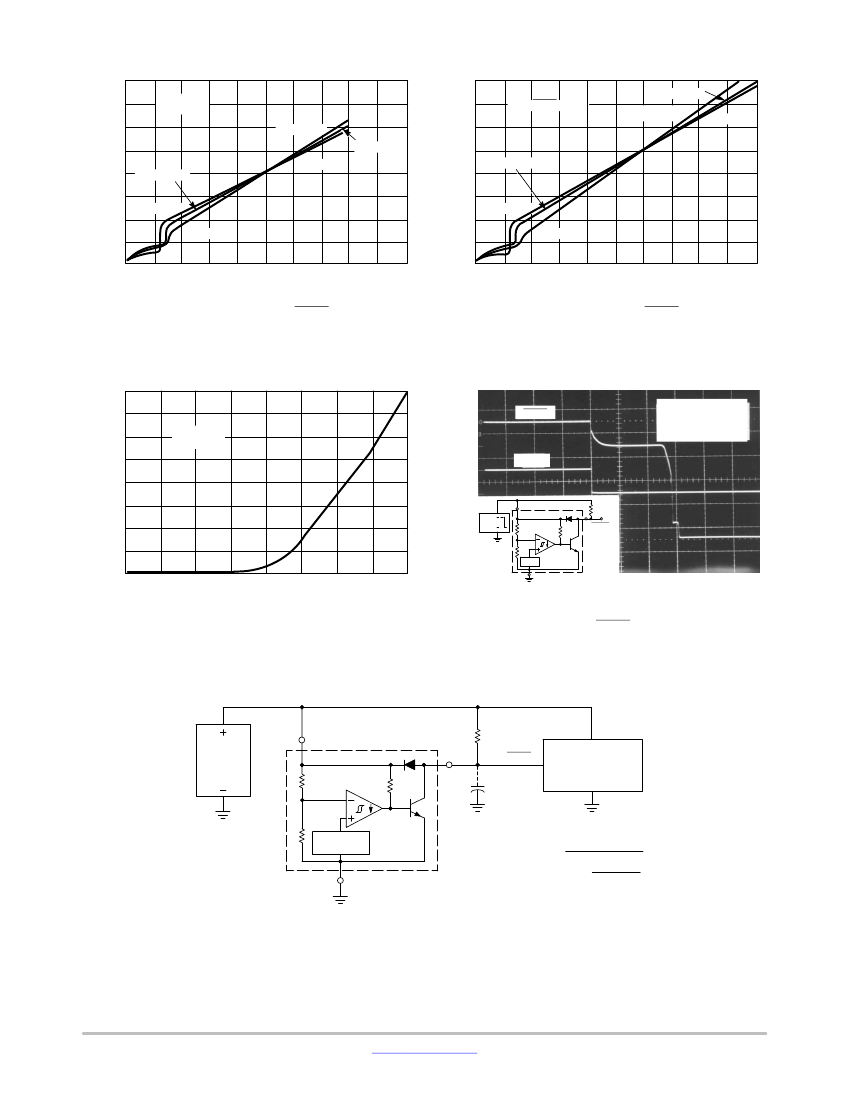

Figure 14. Low Voltage Microprocessor Reset
www.onsemi.com
5
京公网安备 11010802033920号
EEWORLD
