MC33389DDW

Description
System Basis Chip with Low Speed Fault Tolerant CAN
CategoryWireless rf/communication    Telecom circuit
File Size604KB,35 Pages
ManufacturerMotorola ( NXP )
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

MC33389DDW Online Shopping

Suppliers Part Number Price MOQ In stock
MC33389DDW - - View Buy Now

MC33389DDW Overview

System Basis Chip with Low Speed Fault Tolerant CAN

MC33389DDW Parametric

Parameter NameAttribute value
MakerMotorola ( NXP )
Parts packaging codeSOIC
package instructionSOP, SOP28,.4
Contacts28
Reach Compliance Codeunknow
data rate125 Mbps
JESD-30 codeR-PDSO-G28
length17.925 mm
Number of functions1
Number of terminals28
Transceiver quantity1
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Encapsulate equivalent codeSOP28,.4
Package shapeRECTANGULAR
Package formSMALL OUTLINE
power supply5.5/18 V
Certification statusNot Qualified
Maximum seat height2.65 mm
Maximum slew rate7 mA
Nominal supply voltage12 V
surface mountYES
Telecom integrated circuit typesINTERFACE CIRCUIT
Temperature levelAUTOMOTIVE
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width7.5 mm

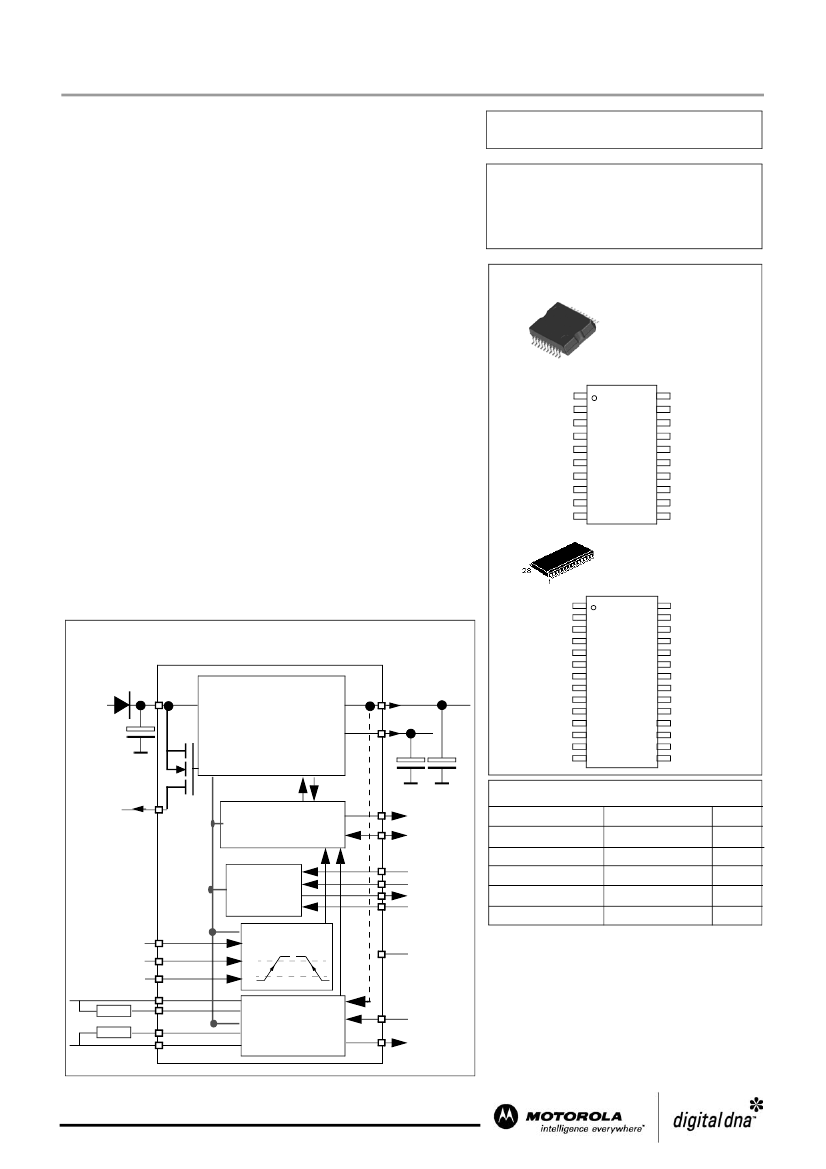

MOTOROLA
Freescale Semiconductor, Inc.
Semiconductor Technical Data
Order Number: MC33389/D
Rev 3.5, March 17th, 03
Advance Information
System Basis Chip with Low
Speed Fault Tolerant CAN
The MC33389 is a monolithic integrated circuit combining many functions
frequently used by automotive ECUs. It incorporates a low speed fault tolerant
CAN transceiver.
• Dual Low Drop Voltage Regulators, with Respectively 100mA and 200mA
Current Capabilities, Current Limitation and Over Temperature Detection with
Prewarning
• 5V Output Voltage for V1 Regulator
• Three Operational Modes (Normal, Standby and Sleep Mode) Separated
from the CAN Interface Operating Modes
• Low Speed 125kBaud Fault Tolerant CAN Interface, Compatible with
MC33388 Standalone Physical Interface
• V1 Regulator Monitoring and Reset Function
• Three External High Voltage Wake-up Inputs, Associated with V3 V
bat
Switch
• 100mA Output Current Capability for V3 V
bat
Switch Allowing Drive of
External Switches or Relays
• Low Standby and Sleep Current Consumption
• V
bat
Monitoring and V
bat
Failure Detection Capabilities
• DC Operating Voltage up to 27V
• 40V Maximum Transient Voltage
• Programmable Software Window Watchog and Reset
• Wake up Capabilities (CAN Interface, Local Programmable Cyclic Wake up)
• Interface with MCU through SPI
• Programmable Interupt Function
MC33389
AUTOMOTIVE SBC
SYSTEM BASIS CHIP
SILICON MONOLITHIC
INTEGRATED CIRCUIT
PIN CONNECTIONS
DH SUFFIX
POWER PACKAGE
CASE 979C
HSOP-20
TX
V1
RX
RSTB
INTB
MISO
MOSI
SCK
CSB
L2
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
Freescale Semiconductor, Inc...
V3
VBAT
RTL
V2
CANH
GND
CANL
RTH
L0
L1
DW SUFFIX
PLASTIC PACKAGE
CASE 751F
SO-28
TX
V1
RX
RSTB
INTB
GND
GND
GND
GND
MISO
MOSI
SCK
CSB
L2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
Simplified Block Diagram
VBAT
(+12V)
Dual Voltage Regulator
Voltage control
5V
Bat fail detect
VCC monitor
5V
VBAT switch supply
Mode control
V2
max 200mA
max 110mA
V1
V3
VBAT
RTL
V2
CANH
GND
GND
GND
GND
CANL
RTH
NC
L0
L1
I3 max. 100mA
ORDERING INFORMATION
V3
(Switch supply)
Interrupt control
Reset control
Watchdog & oscillator
INT
Reset
MOSI
SCK
MISO
CSB
Device and version
Operating
Temperature Range
Package
MC33389ADW (1) T
A
= -40 to 125°C
MC33389ADH (1)
SO-28
T
A
= -40 to 125°C
HSOP20
SO-28
MC33389CDW (2) T
A
= -40 to 125°C
SPI Interface
MC33389CDH (2) T
A
= -40 to 125°C
HSOP20
MC33389DDW (3) T
A
= -40 to 125°C
SO-28
L0
Wake-up
L1
inputs
Programmable
wake-up inputs
Gnd
L2
Fault tolerant
CAN
transceiver
(1) Version A: If device remains in reset greater than 100ms due
to V1 undervoltage, device switches to sleep mode to minimise
current consumption. Wake-up configuration active.
(2) Version C: In V1 undervoltage condition, device remains in
permanent reset state until V1 returns to nominal conditions. V1
protected by overcurrent and over temperature functions.
(3) Version D: In V1 undervoltage condition, device remains in
permanent reset state until V1 returns to nominal conditions. V1
protected by overcurrent and over temperature functions.
Change of undervoltage reset threshold. Refer to electrical pa-
rameter table, V1 PIn 5V.
CAN H
R1
R2
Rth
Rtl
TX
RX
CAN L
This document contains information on a new product under development.
www.freescale.com
Go to:
Motorola reserves the
right to change or discontinue this product without notice.
© Motorola, Inc., 2002. All rights reserved.
For More Information On This Product,

MC33389DDW Related Products

MC33389DDW MC33389ADW MC33389ADH MC33389CDH
Description System Basis Chip with Low Speed Fault Tolerant CAN System Basis Chip with Low Speed Fault Tolerant CAN System Basis Chip with Low Speed Fault Tolerant CAN System Basis Chip with Low Speed Fault Tolerant CAN
Maker Motorola ( NXP ) Motorola ( NXP ) - Motorola ( NXP )
package instruction SOP, SOP28,.4 SOP, SOP28,.4 - HSOP, SOP20,.56
Reach Compliance Code unknow unknown - unknow
data rate 125 Mbps 125 Mbps - 125 Mbps
JESD-30 code R-PDSO-G28 R-PDSO-G28 - R-PDSO-G20
length 17.925 mm 17.925 mm - 15.9 mm
Number of functions 1 1 - 1
Number of terminals 28 28 - 20
Transceiver quantity 1 1 - 1
Maximum operating temperature 125 °C 125 °C - 125 °C
Minimum operating temperature -40 °C -40 °C - -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY
encapsulated code SOP SOP - HSOP
Encapsulate equivalent code SOP28,.4 SOP28,.4 - SOP20,.56
Package shape RECTANGULAR RECTANGULAR - RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE - SMALL OUTLINE, HEAT SINK/SLUG
power supply 5.5/18 V 5.5/18 V - 5.5/18 V
Certification status Not Qualified Not Qualified - Not Qualified
Maximum seat height 2.65 mm 2.65 mm - 3.4 mm
Maximum slew rate 7 mA 7 mA - 7 mA
Nominal supply voltage 12 V 12 V - 12 V
surface mount YES YES - YES
Telecom integrated circuit types INTERFACE CIRCUIT INTERFACE CIRCUIT - INTERFACE CIRCUIT
Temperature level AUTOMOTIVE AUTOMOTIVE - AUTOMOTIVE
Terminal form GULL WING GULL WING - GULL WING
Terminal pitch 1.27 mm 1.27 mm - 1.27 mm
Terminal location DUAL DUAL - DUAL
width 7.5 mm 7.5 mm - 11 mm
