SP-1S1-GG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> SP-1S1-GG

SP-1S1-GG: DescriptionPCB Terminal; CategoryThe connector terminals; File Size87KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SP-1S1-GG Overview

PCB Terminal

SP-1S1-GG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	SP
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

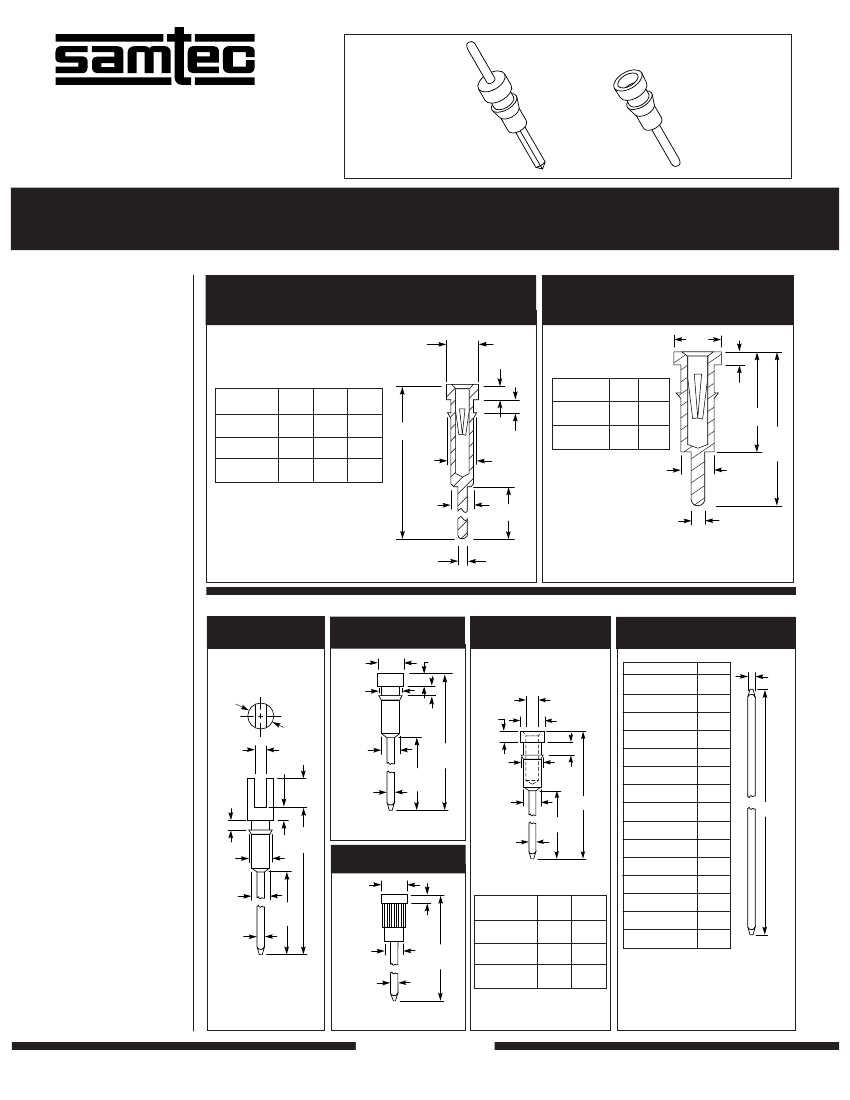

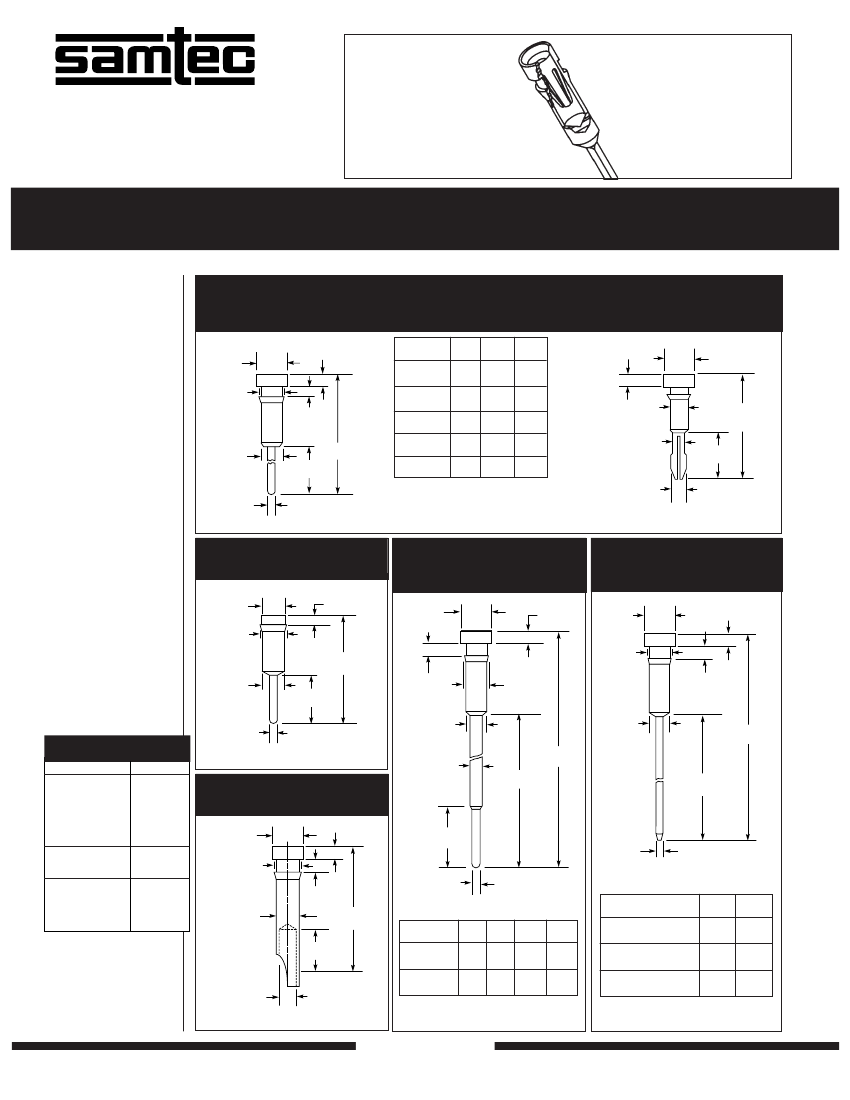

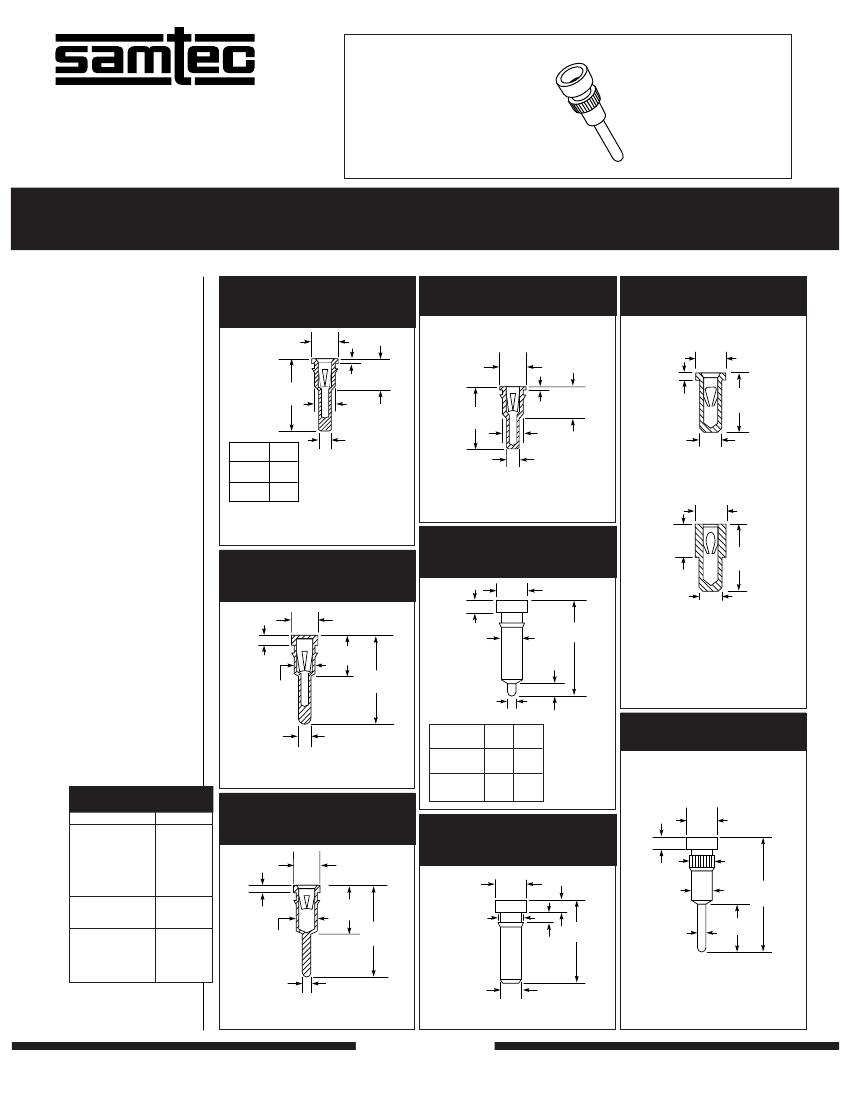

F-203 SUPPLEMENT

SC–7P1–GG

STANDARD, LOW PROFILE &

Specifications:

Contact:

BeCu

Shell:

Brass

-GG Plating:

30µ" (0,76µm) Au over 50µ"

(1,27µm) Ni on contact; 10µ"

(0,25µm) Au over 50µ"

(1,27µm) Ni on shell

-GT Plating:

30µ" (0,76µm) Au over 50µ"

(1,27µm) Ni on contact; Sn

over 50µ" (1,27µm) Ni on shell

-TT Plating:

Sn over 50µ" (1,27µm) Ni

on contact; Sn over 50µ"

(1,27µm) Ni on shell

-ST Plating:

10µ" (0,25µm) Au over 50µ"

(1,27µm) Ni on contact; Sn

over 50µ" (1,27µm) Ni on shell

Current Rating:

Contact Resistance:

10 mΩ max

Insertion Force (SC):

9 oz (2,50N) avg, 16 oz

(4,45N) max

Withdrawal Force (SC):

2.5 oz (0,70N) avg, 1.5 oz

(0,42N) min

Insertion Force (EZ):

2.5 oz (0,70N) avg, 5.5

(1,53N) oz max

Withdrawal Force (EZ):

2.0 oz (0,56N) avg, 0.35 oz

(0,10mm) min

Lead DIA Accepted:

.015" to .022" (0,38mm to

0,56mm) and most IC leads

RECOMMENDED

PC HOLE SIZE:

LEAD SIZE

(0,46) .018 DIA

(0,51) .020 DIA

(0,64) .025 DIA

(0,76) .030 DIA

(0,89) .035 DIA

(1,14) .045 DIA

(1,32) .052 DIA

(0,46) .018 SQ

(0,64) .025 SQ

(1,14) .045 SQ

(0,20) .008 x (0,71) .028

(0,25) .010 x (0,51) .020

(0,41) .016 x (0,51) .020

(0,41) .016 x (0,61) .024

(0,41) .016 x (0,79) .031

SC–1P1–, SC–6P1–, SC–1P3–, SC–2P1–

EZ–1P1–, EZ–6P1–, SC-7P1

(1,83)

.072

DIA

(1,52)

.061

DIA

(0,76)

.030

Part No.

SC–1L1–

EZ–1L1–

(1,83)

.072 DIA

DIA

(0,51)

.020

(0,51)

.020

.010

(3,18)

.125

(4,57)

.180

.015

(7,62)

.300

(8,89)

.350

(0,71)

.028

SC–1P1–

EZ–1P1–

SC–6P1–

EZ–6P1–

SC–1P3–

(0,64) (10,41) (15,24)

.025

.410

.600

(0,89) (12,95) (17,86)

.035

.510

.703

(0,51) (7,06) (11,25)

.020

.443

.278

(0,76)

.030

(0,76)

.030

DIA

(1.32)

.052

DIA (7,62)

.300

(3,43)

.135

(1,32)

.052

DIA

SC–2P1–

SC–7P1–

DIA

Insertion Depth (SC-1P1, SC-1L1, SC-6P1, SC-7P1)

= .95" to .145" (2,41mm to 3,68mm)

Insertion Depth (SC-2P1) = .125" to .157" (3,18mm to 3,99mm)

Insertion Depth (SC-1P3) = .095" to .138" (2,41mm to 3,51mm)

Plating Available (SC-1P1, SC-1L1) = GG, GT, TT, ST

Plating Available (SC-6P1, SC-2P1,SC-7P1) = GG, GT

(1,02)

.040

DIA

SC–1P2–

(1,45)

.057

DIA

(1,53)

.061

DIA

(7,37)

.290

(1,32)

.052

DIA

(3,18)

.125

(0,64)

.025

SC–2P3–, SC–2P2–

EZ–2P3–, EZ–2P2–

(1,83)

.072

DIA

(0,76)

.030

(1,83)

.072

DIA

(1,52)

.061

DIA

SC–1W1–

EZ–1W1–

(0,76)

.030

(0,71)

.028

(1,52)

.061

DIA

(1,32)

.052

DIA

(0,71)

.028

(0,51)

.020

DIA

Insertion Depth = .095" to .145" (2,41mm to 3,68mm)

Plating Available = GG, GT

(1,32)

.052

DIA

(0,89)

.035

DIA

HOLE SIZE

(0,61) .024 DIA

(0,66) .026 DIA

(0,79) .031 DIA

(0,91) .036 DIA

(1,04) .041 DIA

(1,30) .051 DIA

(1,47) .058 DIA

(0,76) .030 DIA

(1,02) .040 DIA

(1,75) .069 DIA

(0,89) .035 DIA

(0,71) .028 DIA

(0,79) .031 DIA

(0,89) .035 DIA

(1,04) .041 DIA

SC–2S1–

(1,83)

.072

DIA

(1,52)

.061

DIA

(0,71)

.028

(1,32)

.052 DIA

(2,30)

.090

(7,37)

.290

(0,76)

.030

(0,64)

.025

DIA

Part No.

Plating Available = GG, GT

.010

(12,95)

.510

(9,14)

.360

(6,60)

.260

.015

(17,86)

.703

(14,05)

.553

(11,51)

.453

Part No.

DIA

010

015

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(0,97)

.038 DIA

Insertion Depth = .095" to .145" (2,41mm to 3,68mm)

Plating Available = GG, GT

SC–2P3–

EZ–2P3–

SC–2P2–

EZ–2P2–

(0,51) (4,32)

.020 .170

(8,86) (13,77)

.349

.542

(0,46) (3,81) (12,95) (17,86)

.510

.018 .150

.703

SC–1W1–XX–1

EZ–1W1–XX–1

SC–1W1–XX–2

EZ–1W1–XX–2

SC–1W1–XX–3

EZ–1W1–XX–3

Insertion Depth (SC-2P2) =

.125" to .145" (3,18mm to 2,41mm)

Insertion Depth (SC-2P3) =

.125" to .170" (3,18mm to 4,32mm)

Insertion Depth=

.125" to .157" (3,18mm to 3,99mm)

Plating Available = GG, GT, TT

Due to technical progress, all designs, specifications and components are subject to change without notice.

WWW.SAMTEC.COM

SAMTEC USA

• Tel: 1-800-SAMTEC-9 or 812-944-6733 • Fax: 812-948-5047

SAMTEC UK

• Tel: 01236 739292 • Fax: 01236 727113

SAMTEC GERMANY

• Tel: +49 (0) 89 / 89460-0 • Fax: +49 (0) 89 / 89460-299

SAMTEC FRANCE

• Tel: 01 60 95 06 60 • Fax: 01 60 95 06 61

SAMTEC ITALY

• Tel: 39 039 6890337 • Fax: 39 039 6890315

SAMTEC ASIA PACIFIC

• Tel: 65 6745-5955 • Fax: 65 6841-1502

SAMTEC CHINA

• Tel: 86-21-5385-4089 • Fax: 86-21-5385-4047

SAMTEC JAPAN

• Tel: 81-424-42-8318 • Fax: 81-424-42-8319

SAMTEC TAIWAN

• Tel: 886-02-2364-6077 • Fax: 886-02-2367-9531

SAMTEC HONG KONG

• Tel: 852-26904858 • Fax: 852-26904842

SAMTEC ANZ •

Tel: 613 9512 7747 • Fax: 613 9512 7745
