5962-8686001EA: Description5962-8686001EA amplifier basic information: 5962-8686001EA is a COMPARATOR. Commonly used packaging methods are DIP, DIP16,.3 5962-8686001EA amplifier core information: The minimum operating temperature of 5962-8686001EA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.15 µA Its maximum average bias current is 0.2 µA When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962-8686001EA takes only 200 ns to respond. The maximum slew rate of the 5962-8686001EA given by the manufacturer is 20 mA. The nominal supply voltage of 5962-8686001EA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: 5, +-15 V. The input offset voltage of 5962-8686001EA is 5000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).) Related dimensions of 5962-8686001EA: 5962-8686001EA has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 16 5962-8686001EA amplifier additional information: Its temperature grade is: MILITARY. 5962-8686001EA is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-CDIP-T16. The corresponding JESD-609 code is: e0. The packaging code of 5962-8686001EA is: DIP. 5962-8686001EA packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962-8686001EA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size811KB，12 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Alternative parts：5962-8686001EA

Download Datasheet Parametric Compare View All

5962-8686001EA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-8686001EA	-	-	View	Buy Now

5962-8686001EA Overview

5962-8686001EA amplifier basic information:

5962-8686001EA is a COMPARATOR. Commonly used packaging methods are DIP, DIP16,.3

5962-8686001EA amplifier core information:

The minimum operating temperature of 5962-8686001EA is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum bias current at 25°C is: 0.15 µA Its maximum average bias current is 0.2 µA

When it comes to an amplifier's sensitivity, nothing is better than its nominal response time. 5962-8686001EA takes only 200 ns to respond. The maximum slew rate of the 5962-8686001EA given by the manufacturer is 20 mA.

The nominal supply voltage of 5962-8686001EA is 15 V, and its corresponding nominal negative supply voltage is -15 V. The power supply range is: 5, +-15 V. The input offset voltage of 5962-8686001EA is 5000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)

Related dimensions of 5962-8686001EA:

5962-8686001EA has 16 terminals. Its terminal position type is: DUAL. Terminal pitch is 2.54 mm. Total pins: 16

5962-8686001EA amplifier additional information:

Its temperature grade is: MILITARY. 5962-8686001EA is not Rohs certified. It contains lead. The corresponding JESD-30 code is: R-CDIP-T16. The corresponding JESD-609 code is: e0.

The packaging code of 5962-8686001EA is: DIP. 5962-8686001EA packaging materials are mostly CERAMIC, METAL-SEALED COFIRED. The package shape is RECTANGULAR. The 5962-8686001EA package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

5962-8686001EA Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Is Samacsys	N
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.2 µA
Maximum bias current (IIB) at 25C	0.15 µA
Maximum input offset voltage	5000 µV
JESD-30 code	R-CDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output type	TOTEM POLE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,+-15 V
Certification status	Not Qualified
Nominal response time	200 ns
Filter level	MIL-STD-883
Maximum slew rate	20 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

DATASHEET

HA-4902/883

Precision Quad Comparator

The HA-4902/883 is a monolithic, quad, precision comparator

offering fast response time, low offset voltage, low offset

current and virtually no channel-to-channel crosstalk for

applications requiring accurate, high speed, signal level

detection. This comparator can sense signals at ground level

while being operated from either a single +5V supply (digital

systems) or from dual supplies (analog networks) up to

15V.

The HA-4902/883 contains a unique current driven output

stage which can be connected to logic system supplies

LOGIC

+ and V

LOGIC

-) to make the output levels directly

compatible (no external components needed) with any

standard logic or special system logic levels. In combination

analog/digital systems, the design employed in the

HA-4902/883 input and output stages prevents troublesome

ground coupling of signals between analog and digital portions

of the system.

This comparators’ combination of features make it an ideal

component for signal detection and processing in data

acquisition systems, test equipment and

microprocessor/analog signal interface networks.

FN3929

Rev.1.00

May 3, 2012

Features

• This circuit is processed in accordance to MIL-STD-883 and

is fully conformant under the provisions of Paragraph 1.2.1

• Fast Response Time (+25°C

)

- Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215ns

- Typical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180ns

• Low Offset Voltage (+25°C)

- Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.0mV

- Typical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.0mV

• Low Input Sensitivity

- Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5mV

- Typical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.05mV

• Low Offset Current (+25°C)

- Maximum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35nA

- Typical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10nA

• Single or Dual Voltage Supply Operation

• Selectable Output Logic Levels

• Active Pull-Up/Pull-Down Output Circuit. No External

Resistors Required

Pin Configuration

HA-4902/883

(16 LD CERDIP)

TOP VIEW

OUT 1

-IN 1

+IN 1

V-

+IN 2

-IN 2

OUT 2

16 OUT 4

15 -IN 4

14 +IN 4

13 V+

12 +IN 3

11 -IN 3

10 OUT 3

9 V

Applications

• Threshold Detector

• Zero Crossing Detector

• Window Detector

• Analog Interfaces for Microprocessors

• High Stability Oscillators

• Logic System Interfaces

Ordering Information

PART

NUMBER

PART

MARKING

TEMP

RANGE (°C)

PACKAGE

PKG.

DWG.

HA1-4902/883 HA1-4902/883 -55 to +125 16 Ld CERDIP F16.3

FN3929 Rev.1.00

May 3, 2012

Page 1 of 12

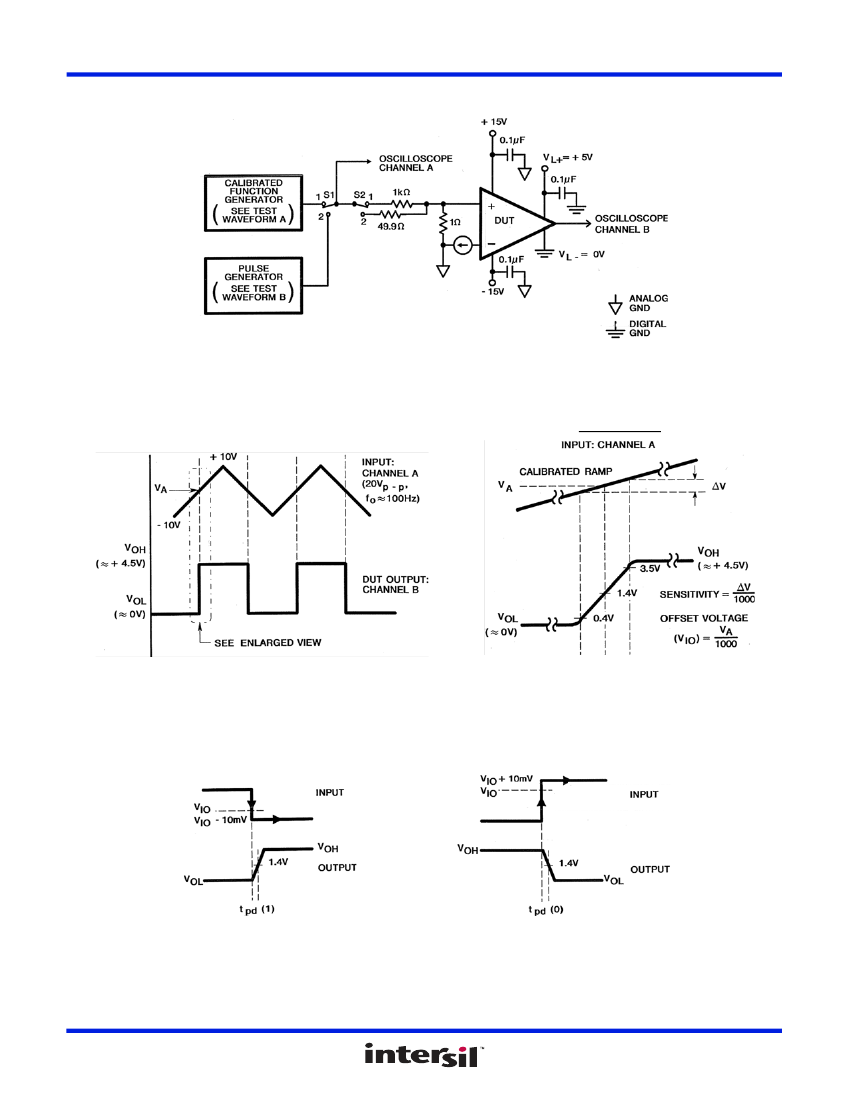

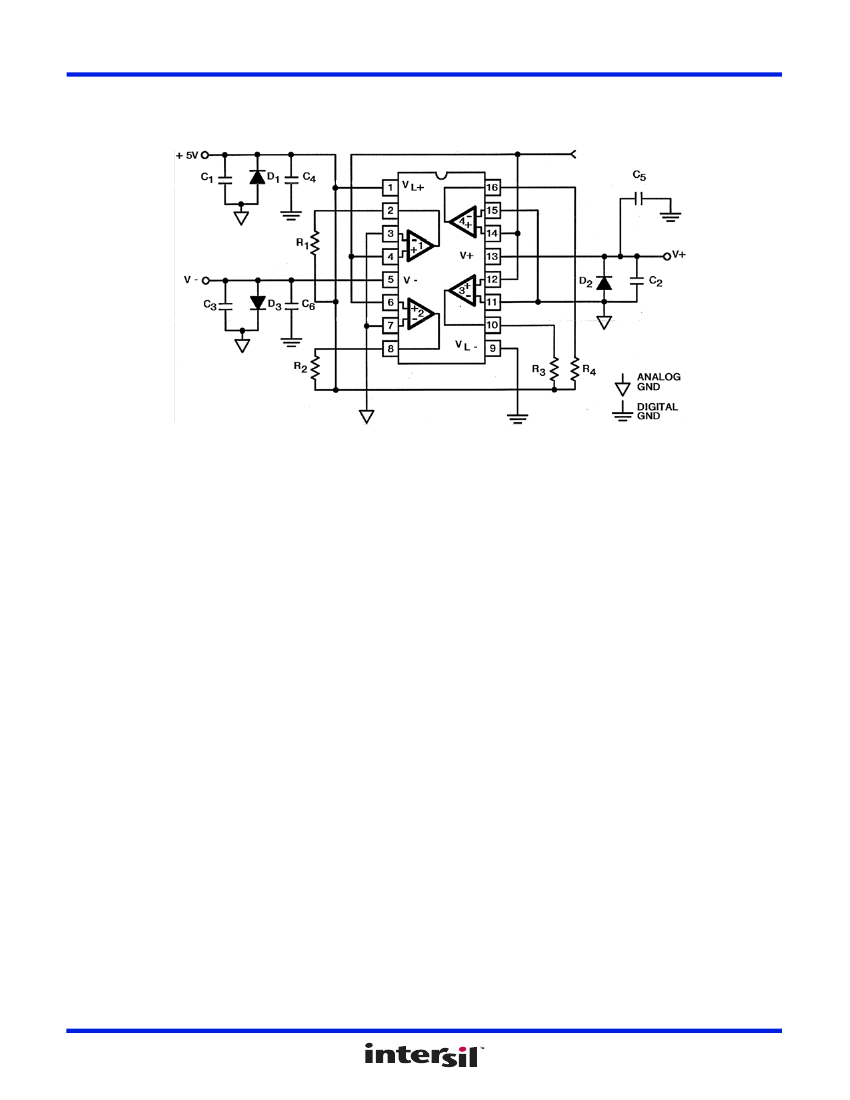

5962-8686001EA Related Products

	5962-8686001EA	5962-86860012A	HA1-4902/883
Description	QUAD COMPARATOR, 5000uV OFFSET-MAX, 200ns RESPONSE TIME, CDIP16, CERAMIC, DIP-16	QUAD COMPARATOR, 5000uV OFFSET-MAX, CQCC20, CERAMIC, QCC-20	QUAD COMPARATOR, 5000uV OFFSET-MAX, 200ns RESPONSE TIME, CDIP16, CERAMIC, DIP-16
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	DIP	QLCC	DIP
package instruction	DIP, DIP16,.3	QCCN, LCC20,.35SQ	DIP, DIP16,.3
Contacts	16	20	16
Reach Compliance Code	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99
Factory Lead Time	19 weeks	21 weeks	19 weeks
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR
Maximum bias current (IIB) at 25C	0.15 µA	0.15 µA	0.15 µA
Maximum input offset voltage	5000 µV	5000 µV	5000 µV
JESD-30 code	R-CDIP-T16	S-CQCC-N20	R-GDIP-T16
JESD-609 code	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	4	4	4
Number of terminals	16	20	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	DIP	QCCN	DIP
Encapsulate equivalent code	DIP16,.3	LCC20,.35SQ	DIP16,.3
Package shape	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B
Maximum slew rate	20 mA	20 mA	20 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	YES	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb) - hot dipped	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	NO LEAD	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Is Samacsys	N	N	-
Maximum average bias current (IIB)	0.2 µA	0.2 µA	-
Output type	TOTEM POLE	-	TOTEM POLE
Nominal response time	200 ns	-	200 ns
Base Number Matches	1	1	-
