BYT230PI-700 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYT230PI-700

BYT230PI-700: DescriptionRectifier Diode, 1 Phase, 2 Element, 30A, 700V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size93KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYT230PI-700 Overview

Rectifier Diode, 1 Phase, 2 Element, 30A, 700V V(RRM), Silicon,

BYT230PI-700 Parametric

Parameter Name	Attribute value
package instruction	R-XUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.9 V
JESD-30 code	R-XUFM-D4
Maximum non-repetitive peak forward current	240 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	30 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	700 V
Maximum reverse current	100 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

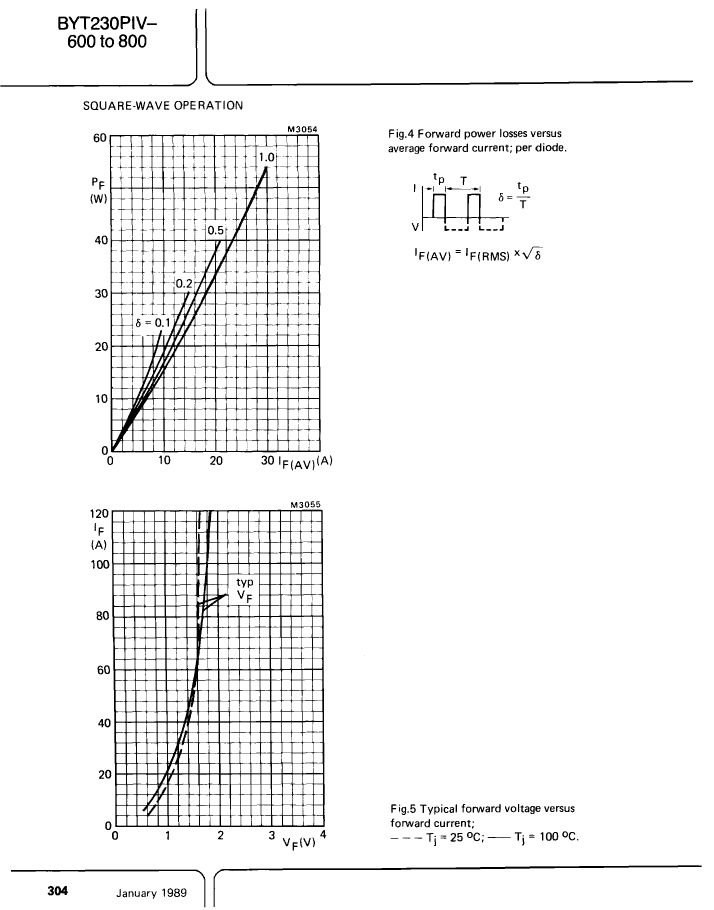

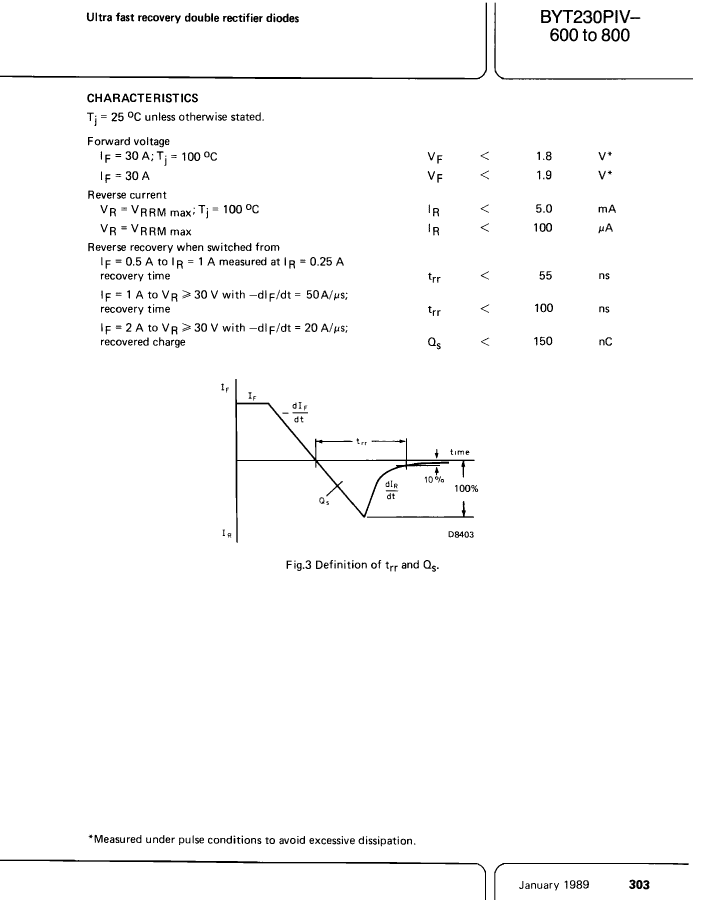

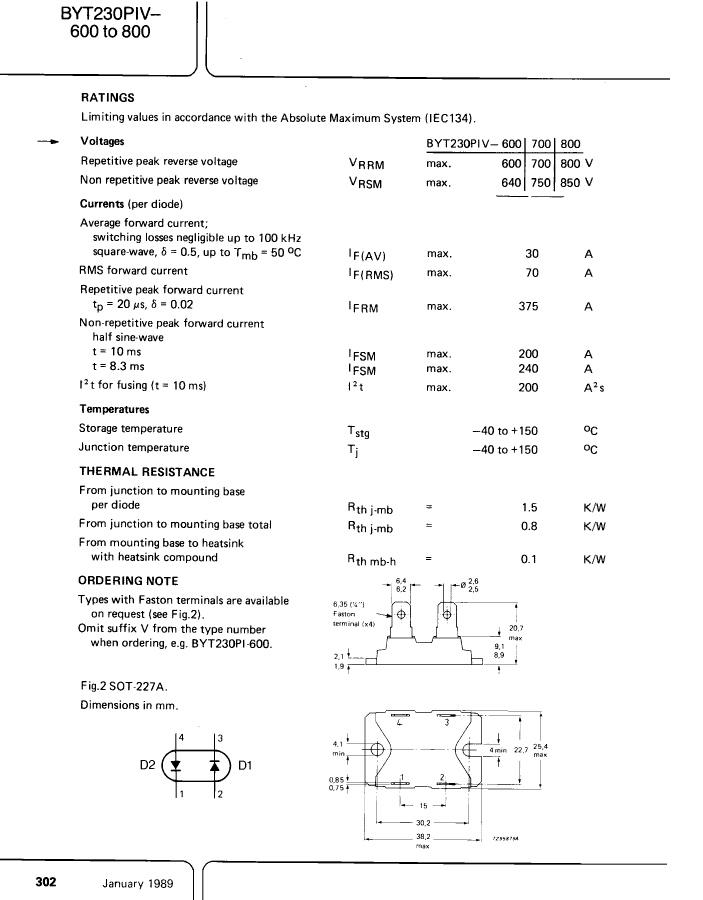

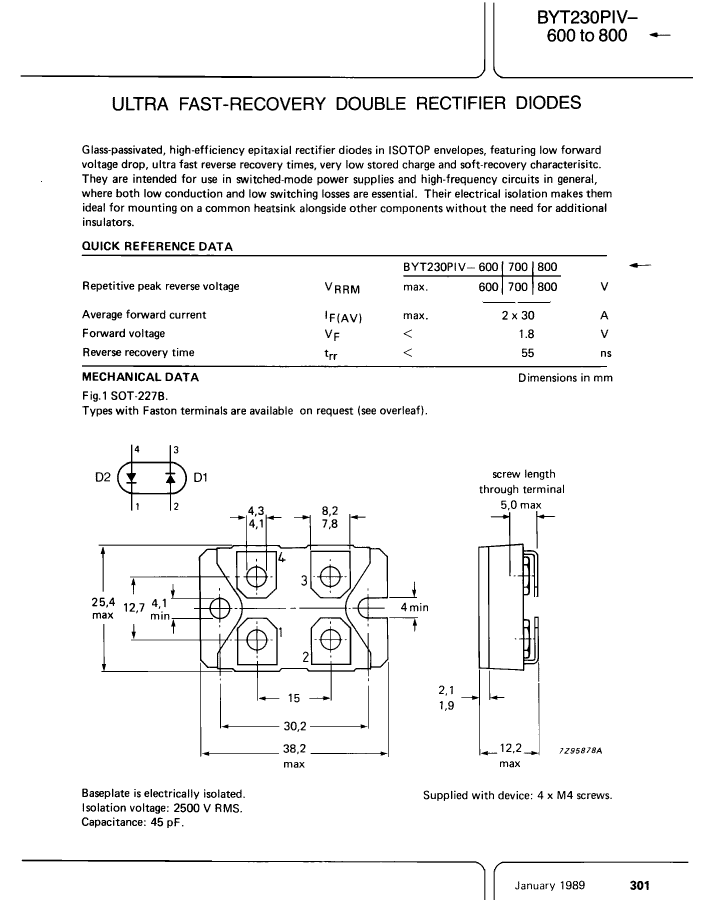

Preview

Download Datasheet

View All

BYT230PI-700 Related Products

	BYT230PI-700	BYT230PIV-600	BYT230PI-800	BYT230PIV-700	BYT230PIV-800	BYT230PI-600
Description	Rectifier Diode, 1 Phase, 2 Element, 30A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 600V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 30A, 700V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 2 Element, 30A, 800V V(RRM), Silicon	Rectifier Diode, 1 Phase, 2 Element, 30A, 600V V(RRM), Silicon
package instruction	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V	1.9 V
JESD-30 code	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4
Maximum non-repetitive peak forward current	240 A	240 A	240 A	240 A	240 A	240 A
Number of components	2	2	2	2	2	2
Phase	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	30 A	30 A	30 A	30 A	30 A	30 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	700 V	600 V	800 V	700 V	800 V	600 V
Maximum reverse current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	-	-	YAGEO	YAGEO	YAGEO	YAGEO
