8940-0-00-15-00-00-08-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size42KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8940-0-00-15-00-00-08-0 Overview

PCB Terminal

8940-0-00-15-00-00-08-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8940-0
terminal gender	MALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

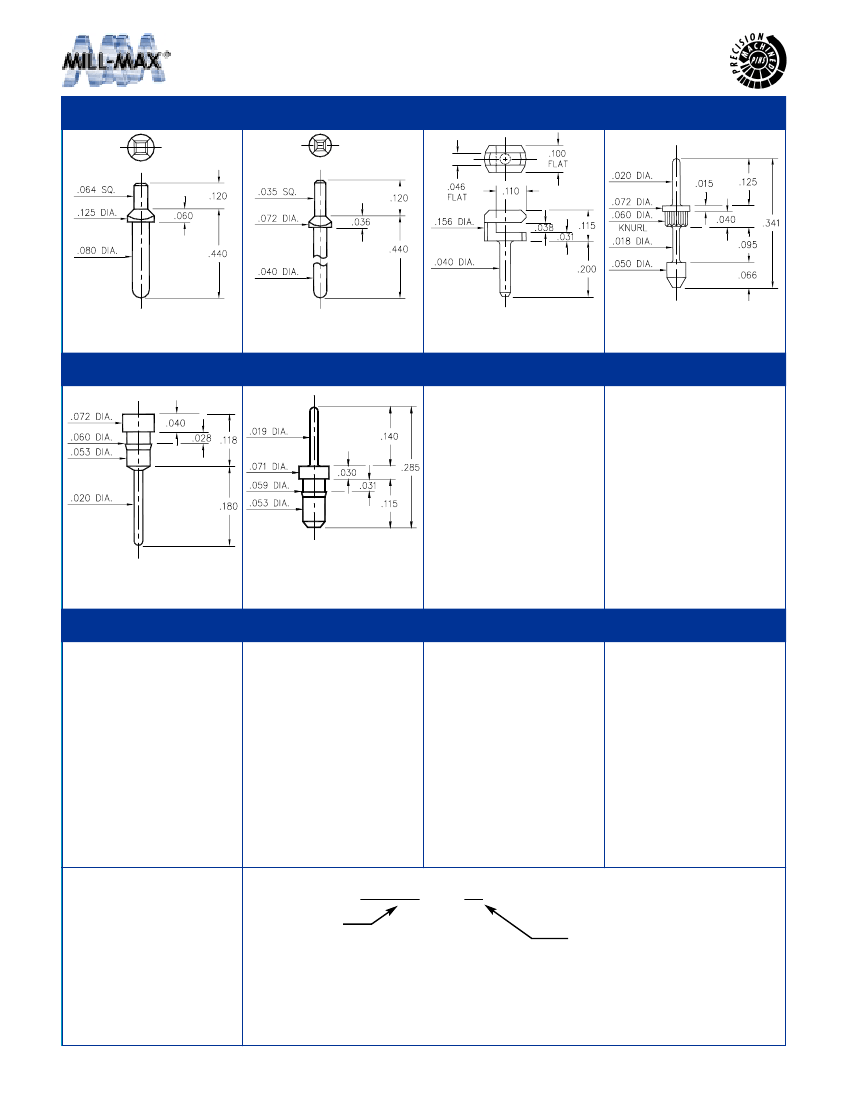

Preview

Download Datasheet

View All

PRINTED CIRCUIT PINS

8952

8953

7310

8816

8952-0-05-XX-00-00-03-0

Square press-fit in .087

plated thru hole

8953-0-05-XX-00-00-03-0

Square press-fit in .047

plated thru hole

7310-0-32-XX-00-00-08-0

Board edge press-fit

8816-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

8940

8876

8940-0-00-XX-00-00-08-0

Press-fit in .057 mounting hole

8876-0-00-XX-00-00-03-0

Press-fit in .057 mounting hole

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

(Except where noted)

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - 00 - 00 - 0X - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

21

20µ"

GOLD OVER

NICKEL

34

50µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

176

8940-0-00-15-00-00-08-0 Related Products

	8940-0-00-15-00-00-08-0	7310-0-32-15-00-00-08-0	7310-0-32-21-00-00-08-0	7310-0-32-34-00-00-08-0	7310-0-32-01-00-00-08-0	8940-0-00-34-00-00-08-0	8940-0-00-01-00-00-08-0	8940-0-00-21-00-00-08-0
Description	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Contains lead	Lead free	Contains lead	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	incompatible	conform to	incompatible	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8940-0	7310-0	7310-0	7310-0	7310-0	8940-0	8940-0	8940-0
terminal gender	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE	MALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Maker	-	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max	Mill-Max
