DSS-2718-820R: DescriptionGeneral Purpose Inductor, 82uH, 20%, 1 Element, SMD,; CategoryPassive components inductor; File Size94KB，1 Pages; ManufacturerWurth Elektronik

Download Datasheet Parametric View All

DSS-2718-820R Overview

General Purpose Inductor, 82uH, 20%, 1 Element, SMD,

DSS-2718-820R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
DC Resistance	0.71 Ω
Nominal inductance(L)	82 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	DSS-2718
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

TransformingMagnetics

TM

SwitchmodePower

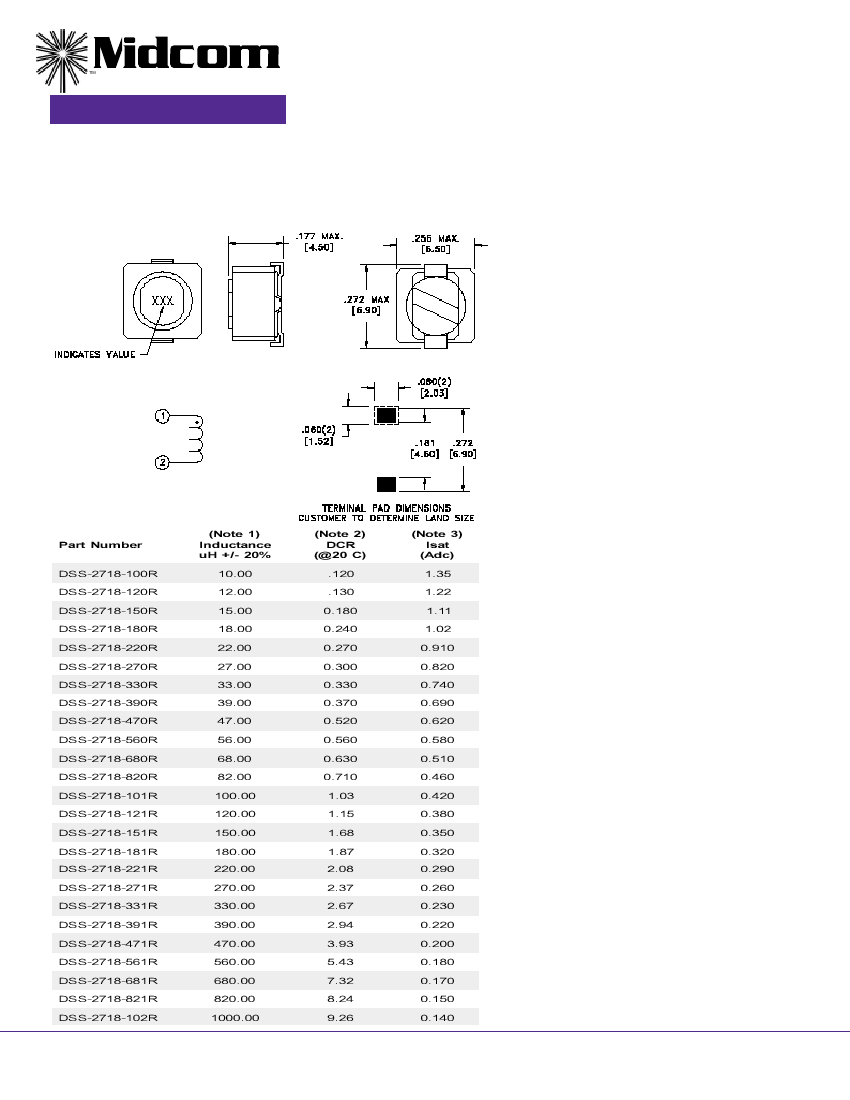

Surface Mount Drum Core

Power Inductors: DSS-2718 Series

Features

Magnetically shielded, SMD power

inductors

Small footprint with low-profile package

Inductance range: 10.0 uH to 1000uH

Saturating current to 1.35ADC

DC Resistances as low as 0.12 Ohm

High energy storage capability

Flat top for pick and place operations

Tape and reel packaging for automatic

handling

Applications

DC/DC Converters, high efficiency

shielded applications

Second stage filters

Environmental Specifications

Operating temperature range: -40°C to

85°C

Storage temperature range: -50° to

+125°C

Packaging

Parts are packaged in 16 mm embossed

carrier tape per EIA-481-2

DSS-2718 is packaged 1,000 pieces per

13 reel

NOTES

1 Open Circuit inductance test at 1000KHz, 0.1 Vrms, 0.0Adc

2 DCR Limits at 20°C

3 Saturating DC current for approximately 35% rolloff from initial

inductance

4 Continuous DC current for approcimate temperature rise of 40° C

from a 25° C ambient

6

Midcom, Inc. USA

121 Airport Drive - PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are ± .010/0,25 and electrical specifications are @ 25°C unless otherwise specified.

3/29/06

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

www.midcom.com.cn ~ email:sye@midcom-inc.com
