RJ11-6L1-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> RJ11-6L1-B

RJ11-6L1-B: DescriptionTELECOM AND DATACOM CONNECTOR; CategoryThe connector The connector; File Size130KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

RJ11-6L1-B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RJ11-6L1-B	-	-	View	Buy Now

RJ11-6L1-B Overview

TELECOM AND DATACOM CONNECTOR

RJ11-6L1-B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Manufacturer's serial number	RJ11-6L1-B
Base Number Matches	1

Preview

Download Datasheet

View All

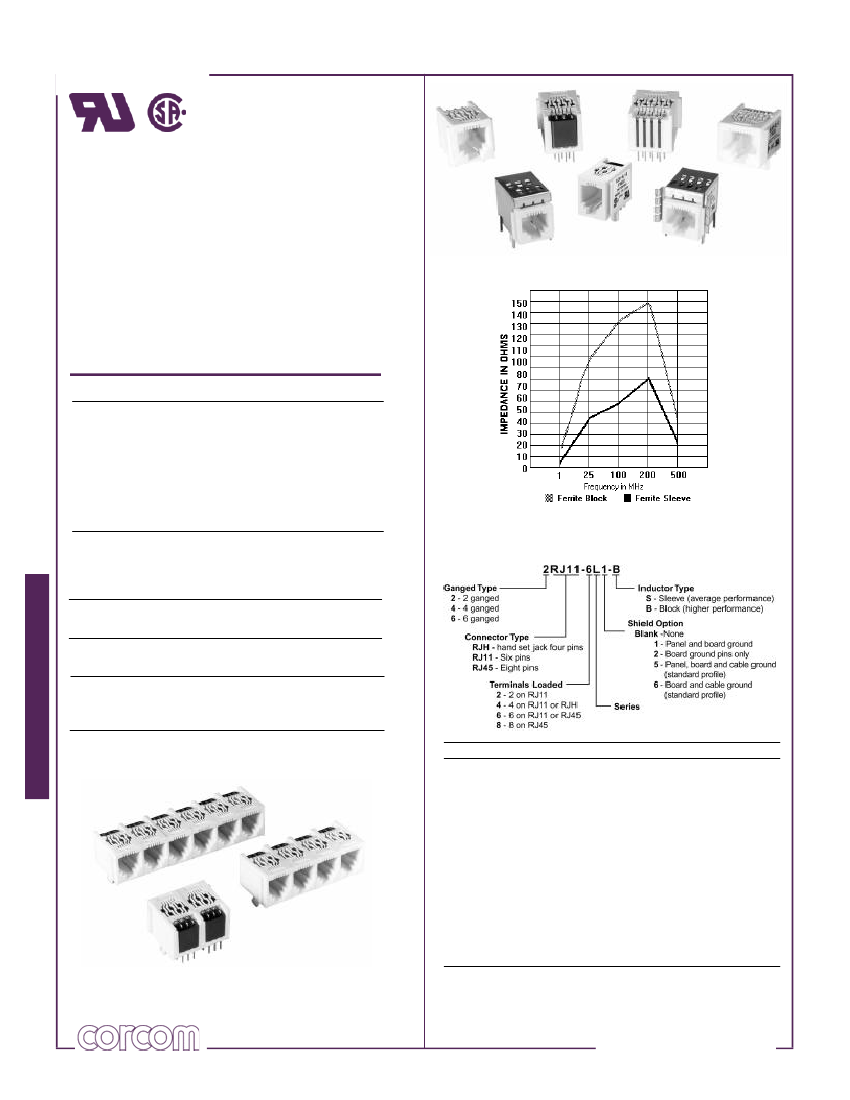

Series

UL Recognized

CSA Certified

Inductive filtering in a direct retrofit to standard

unfiltered RJ11, RJ45, or handset jacks. Offered

with standard ferrite sleeve inductors or higher

performance ferrite blocks, the L series is available

with or without a shield.

Ganged version of our L series filtered jacks.

Available in RJ11 models with block inductors in

gangs of 2, 4, or 6. Retrofits existing unfiltered

ganged jack footprints.

Typical Impedance in Ohms

Specifications

Contacts

Material:

Plating:

Barrier underplating:

Resistance:

Initial:

After durability testing

(500 mating cycles):

Ferrites

Type:

Sleeves:

Block:

Phosphor bronze

50 microinches gold

100 microinches nickel

20 milliohms maximum

30 milliohms maximum

High resistivity, nickel zinc ceramic

Single-aperature cylinders

Multi-aperature rectangular prism

Ordering Information

Consult your local Corcom sales representative for pricing.

Shield Material

Solder-plated copper alloy

Housing Material

Glass-filled polyester (UL94V-O)

Dielectric Withstanding Voltage

Line-to-line and line-to-ground

Printed Circuit Board Retention

Before soldering:

After soldering:

1000 VAC for

60 seconds

1 lb. minimum

20 lb. minimum

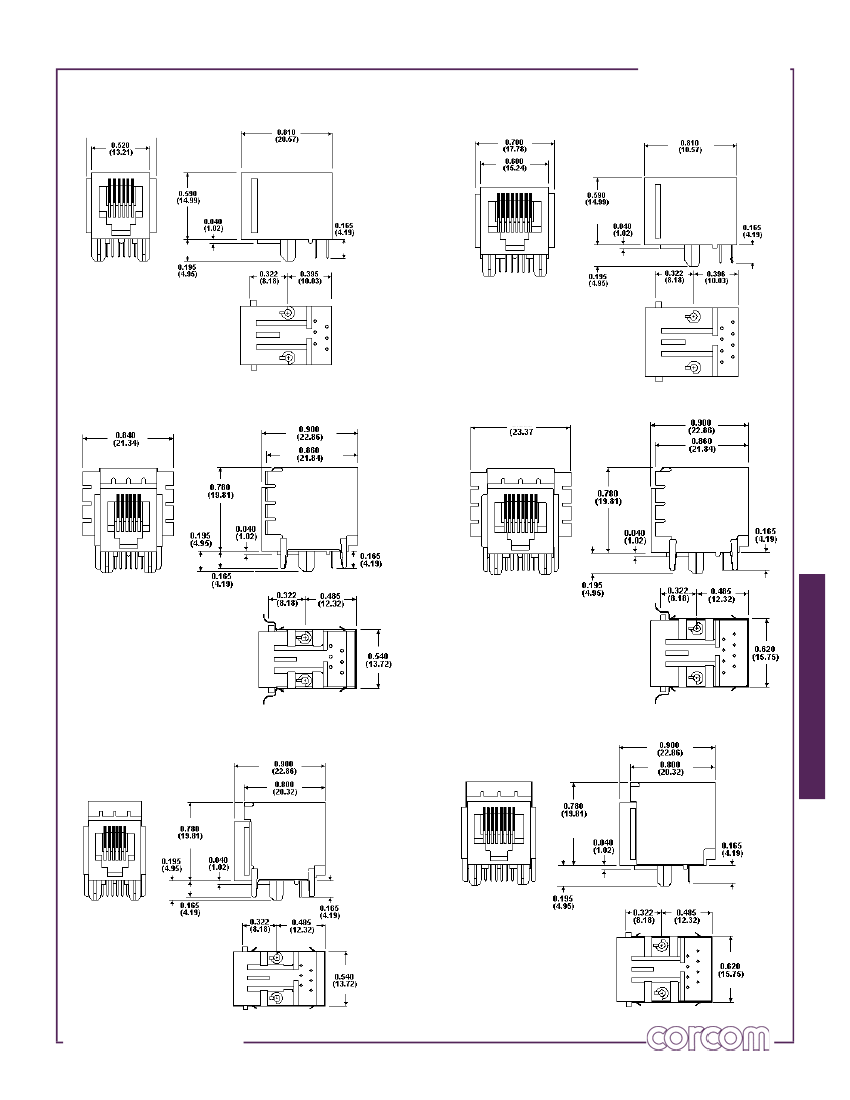

Available Part Numbers

RJ11-2L-B

RJ45-6L-S

RJ11-2L-S

RJ45-6L-B

RJ11-2L2-B

RJ45-6L1-S

RJ11-4L-B

RJ45-6L1-B

RJ11-4L-S

RJ45-6L2-S

RJ11-4L1-S

RJ45-6L2-B

RJ11-4L1-B

RJ45-8L-S

RJ45-8L-B

RJ11-4L2-S

RJ45-8L1-S

RJ11-4L2-B

RJ45-8L1-B

RJ11-6L-B

RJ45-8L2-S

RJ11-6L-S

RJ11-6L1-S

RJ45-8L2-B

RJ11-6L1-B

RJ11-6L2-S

RJ11-6L2-B

2RJ11-6L-B

4RJ11-6L-B

6RJ11-6L-B

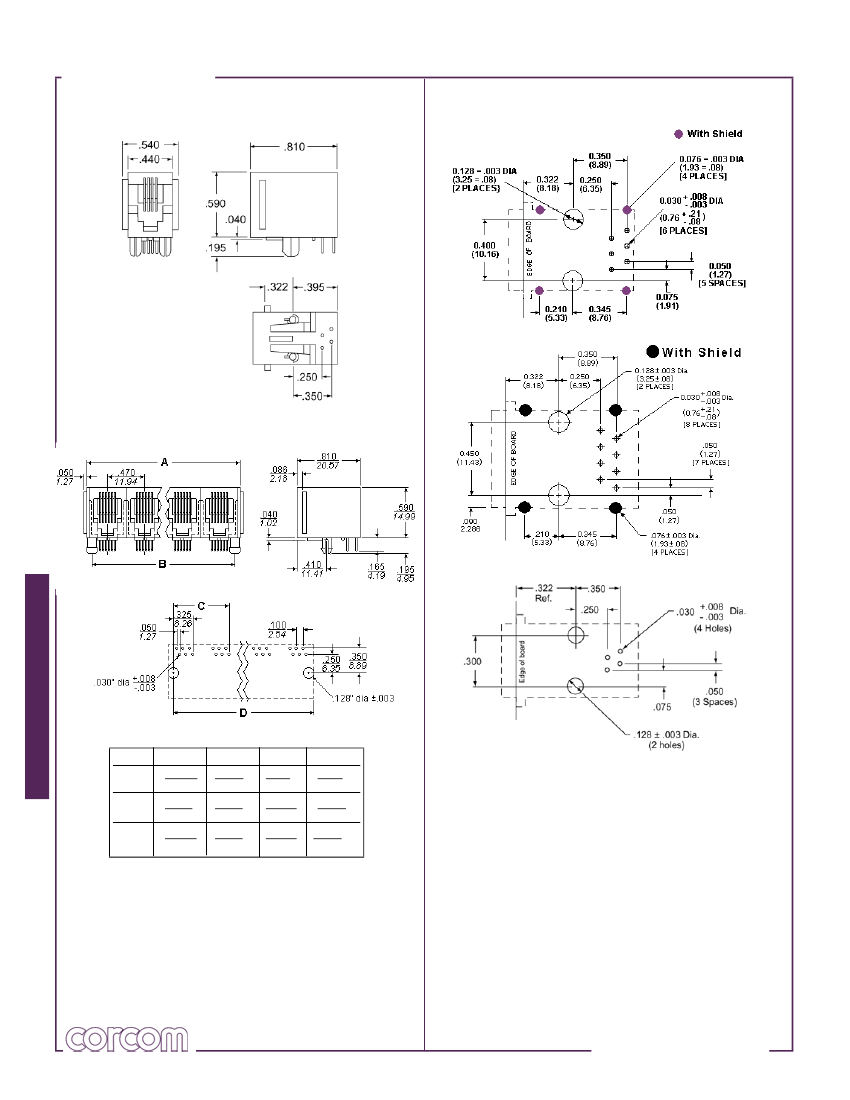

L Series Ganged Version

Libertyville, IL (847) 680-7400
