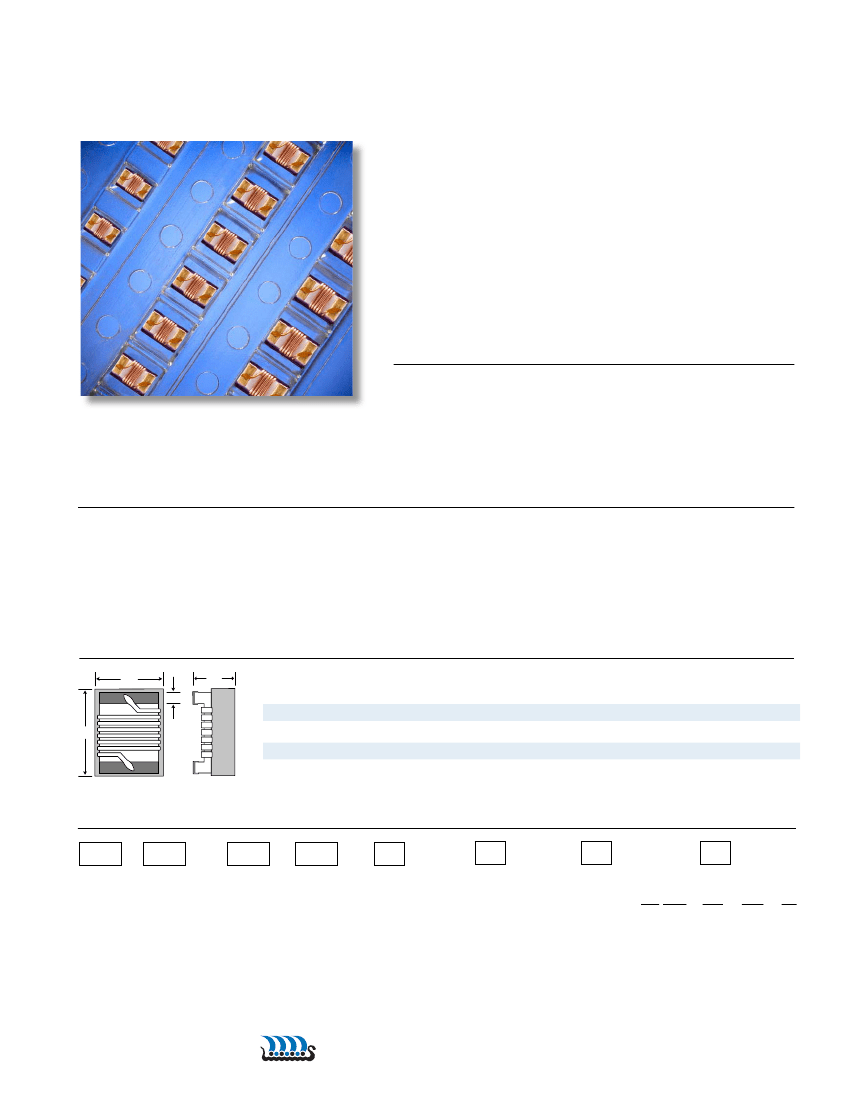

These high frequency High-Q chip inductors feature a
monolithic body made of low loss ceramic wound with wire to
achieve optimal high frequency performance.
These RF chip inductors are compact in size and are provided on
tape and reel packaging which makes them ideal for high volume RF
applications. They feature a nickel barrier with a top plating of gold
for the ceramic core types (all 0402, all 0603, and most 0805 types),
and with a top plating of 100% tin for the ferrite core types (0805
size, 470 nH and higher). Most inductance values between those
listed are available on request.
A
PPLICATIONS
• CELL/PCS Modules
• Broadband Components
• RF Tranceivers
• Cable Modem
• Bluetooth
• Wireless LAN
• RFID
• Cordless Phone
• Computer Peripherals
• ASDL
P
RODUCT
R
ANGE
S
UMMARY
EIA SIZE (mm)
0402 (1005)
0603 (1608)
0805 (2012)
SIZE CODE
L-07
L-14
L-15
L RANGE
1.0 - 120 nH
2.0 - 270 nH
2.2 - 10,000 nH
Q FACTOR (Typ.)
55 (900 MHz)
60 (900 MHz)
60 (500 MHz)
SRF (Typ.)
>11 GHz (1.0 nH)
>13 GHz (2.0 nH)
>11 GHz (2.2 nH)
TEMPERATURE
-40°C to + 125°C
-40°C to + 125°C
-40°C to + 125°C*
*-40 deg. C to +85 deg. C for ferrite core types
M
ECHANICAL
C
HARACTERISTICS
W
S
T
0402 (1005)
Inches
mm
0603 (1608)
Inches
mm
0805 (2012)
Inches
mm
L
Length
Width
Thickness
End Band
.039 ±.004” (1.00 ±.10)
.022 ±.004” (0.55 ±.10)
.020 ±.004” (0.50 ±.10)
.008 ±.004” (0.20 ±.10)
.063 ±.008”
.041 ±.008”
.041 ±.008”
.014 ±.004”
(1.60 ±.20)
(1.05 ±.20)
(1.05 ±.20)
(0.35 ±.10)
.079 ±.008”
.049 ±.008”
.047 ±.008”
.016 ±.004”
(2.00 ±.20)
(1.25 ±.20)
(1.20 ±.20)
(0.40 ±.10)
H
OW TO
O
RDER
L-
DEVICE
Inductor
07
SIZE
07 = 0402
14 = 0603
15 = 0805
W
TYPE
W = Wirewound on
Ceramic Core
F = Wirewound on
Ferrite Core
4N3
VALUE
See Table
B
S
G
J
K
=
=
=
=
=
S
TOLERANCE*
± 0.2 nH
± 0.3 nH
± 2%
± 5%
± 10%
V
TERMINATION
V =
Ni / Au for “W”types,
4
MARKING
4 = No Marking
T
TAPE & REEL
Size Code
Tape
Reel
Qty
0402 T
Paper
7” 10,000
0603 E Embossed 7”
3,000
0805 E Embossed 7”
2,000
and V = Ni / Sn for “F” types
Example Part Number:
L-07W4N3SV4T
is: 0402 Wirewound, 4.3 nanohenry, +/- 0.3 nH tolerance, Ni / Au termination, No Marking, Paper tape on a 7” reel.
*
See selection chart on the following pages for available tolerances of each value.
1
www.johansontechnology.com
0603 I
NDUCTANCE
R
ANGE
/ E
LECTRICAL
C
HARACTERISTICS
Part Number
L-14W1N6SV4E
L-14W2N0SV4E
L-14W3N6SV4E
L-14W3N9SV4E
L-14W4N3SV4E
L-14W4N7SV4E
L-14W5N1SV4E
L-14W6N8JV4E
L-14W8N2JV4E
L-14W8N7JV4E
L-14W10NJV4E
L-14W12NJV4E
L-14W15NJV4E
L-14W18NJV4E
L-14W22NJV4E
L-14W27NJV4E
L-14W33NJV4E
L-14W39NJV4E
L-14W47NJV4E
L-14W56NJV4E
L-14W68NJV4E
L-14W72NJV4E
L-14W82NJV4E
L-14WR10JV4E
L-14WR12JV4E
L-14WR15JV4E
L-14WR18JV4E
L-14WR22JV4E
L-14WR27JV4E
Inductance
@ L/Q Freq.
1.6 nH
2.0 nH
3.6 nH
3.9 nH
4.3 nH
4.7 nH
5.1 nH
6.8 nH
8.2 nH
8.7 nH
10.0 nH
12.0 nH
15.0 nH
18.0 nH
22.0 nH
27.0 nH
33.0 nH
39.0 nH
47.0 nH
56.0 nH
68.0 nH
72.0 nH
82.0 nH
100.0 nH
120.0 nH
150.0 nH
180.0 nH
220.0 nH
270.0 nH
L/Q Test
Freq.
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
200 Mhz
200 Mhz
200 Mhz
150 Mhz
150 Mhz
150 Mhz
150 Mhz
150 Mhz
100 Mhz
100 Mhz
100 Mhz
Tolerance
@L/Q Freq
±0.2 nH, ±0.3 nH
±0.2 nH, ±0.3 nH
±0.2 nH, ±0.3 nH
±0.2 nH, ±0.3 nH
±0.2 nH, ±0.3 nH
±0.2 nH, ±0.3 nH
±0.2 nH, ± 5%, ±10%
±0.2 nH, ± 5%, ±10%
±0.2 nH, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
±2%, ± 5%, ±10%
Q (min.)
@L/Q Freq
14
16
20
22
22
20
23
30
30
30
31
35
35
38
38
40
43
43
40
40
40
35
35
35
35
35
30
30
30
SRF (min.)
7.0 GHz
6.9 Ghz
6.0 Ghz
5.9 Ghz
5.8 Ghz
5.8 Ghz
5.4 Ghz
4.6 Ghz
4.8 Ghz
4.6 Ghz
4.0 Ghz
4.0 Ghz
3.1 Ghz
3.0 Ghz
3.0 Ghz
2.8 Ghz
2.3 Ghz
2.2 Ghz
2.0 Ghz
1.9 Ghz
1.7 Ghz
1.7 Ghz
1.7 Ghz
1.4 Ghz
1.3 Ghz
1.0 Ghz
1.0 Ghz
1.0 Ghz
1.0 Ghz
DC Resistance
(max.)
0.080
Ω
0.080
Ω
0.080
Ω
0.080
Ω
0.060
Ω
0.110
Ω
0.110
Ω
0.110
Ω
0.100
Ω
0.120
Ω
0.130
Ω
0.130
Ω
0.170
Ω
0.170
Ω
0.220
Ω
0.220
Ω
0.220
Ω
0.250
Ω
0.280
Ω
0.310
Ω
0.340
Ω
0.490
Ω
0.540
Ω
0.630
Ω
0.650
Ω
0.920
Ω
1.25
Ω
1.70
Ω
1.80
Ω
Rated Current
(max.)
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
700 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
400 mA
400 mA
400 mA
300 mA
280 mA
240 mA
200 mA
170 mA
Parts shown are for one tolerance only. Tolerances available are as shown in the “Tolerance” column.
NOTE: Most inductance values between those listed above are available on request.
3
www.johansontechnology.com
0805 I
NDUCTANCE
R
ANGE
/ E
LECTRICAL
C
HARACTERISTICS
Part Number
L-15W2N2SV4E
L-15W2N7SV4E
L-15W3N3SV4E
L-15W3N9SV4E
L-15W4N7SV4E
L-15W5N6JV4E
L-15W6N8JV4E
L-15W8N2JV4E
L-15W10NJV4E
L-15W12NJV4E
L-15W15NJV4E
L-15W18NJV4E
L-15W22NJV4E
L-15W27NJV4E
L-15W33NJV4E
L-15W39NJV4E
L-15W47NJV4E
L-15W56NJV4E
L-15W68NJV4E
L-15W82NJV4E
L-15WR10JV4E
L-15WR12JV4E
L-15WR15JV4E
L-15WR18JV4E
L-15WR22JV4E
L-15WR27JV4E
L-15WR33JV4E
L-15WR39JV4E
L-15FR47JV4E
L-15FR56JV4E
L-15FR68JV4E
L-15FR82JV4E
L-15F1R0JV4E
L-15F1R2JV4E
L-15F1R5JV4E
L-15F1R8JV4E
L-15F2R2JV4E
L-15F2R7JV4E
L-15F3R3JV4E
L-15F3R9JV4E
L-15F4R7JV4E
L-15F5R6JV4E
L-15F6R8JV4E
L-15F8R2JV4E
L-15F10RJV4E
Inductance
@L Test Freq.
2.2 nH
2.7 nH
3.3 nH
3.9 nH
4.7 nH
5.6 nH
6.8 nH
8.2 nH
10.0 nH
12.0 nH
15.0 nH
18.0 nH
22.0 nH
27.0 nH
33.0 nH
39.0 nH
47.0 nH
56.0 nH
68.0 nH
82.0 nH
100 nH
120 nH
150 nH
180 nH
220 nH
270 nH
330 nH
390 nH
470 nH
560 nH
680 nH
820 nH
1000 nH
1200 nH
1500 nH
1800 nH
2200 nH
2700 nH
3300 nH
3900 nH
4700 nH
5600 nH
6800 nH
8200 nH
10000 nH
L Test
Freq.
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
200 Mhz
200 Mhz
200 Mhz
150 Mhz
150 Mhz
150 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
25 Mhz
25 Mhz
25 Mhz
25 Mhz
25 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 MHz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
Tolerance
Q (min.)
@ L Test Freq.
@Q Test Freq.
±0.2 nH, ±0.3 nH
50
±0.2 nH, ±0.3 nH
35
±0.2 nH, ±0.3 nH
60
±0.2 nH, ±0.3 nH
60
±0.2 nH, ±0.3 nH
60
±0.2 nH, ± 5%, ±10%
60
±0.2 nH, ± 5%, ±10%
60
±0.2 nH, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
60
±2%, ± 5%, ±10%
50
±2%, ± 5%, ±10%
50
±2%, ± 5%, ±10%
50
±2%, ± 5%, ±10%
50
±2%, ± 5%, ±10%
45
±2%, ± 5%, ±10%
45
±2%, ± 5%, ±10%
45
± 5%, ±10%
45
± 5%, ±10%
45
± 5%, ±10%
35
± 5%, ±10%
35
± 5%, ±10%
35
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
15
± 5%, ±10%
10
Q Test
Freq.
1000 Mhz
1000 Mhz
1000 Mhz
1000 Mhz
1000 Mhz
1000 Mhz
1000 Mhz
1000 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
500 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
250 Mhz
100 Mhz
100 Mhz
100 Mhz
100 Mhz
50 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
8 Mhz
SRF (min.)
>6000 Mhz
>6000 Mhz
>6000 Mhz
>6000 Mhz
5800 Mhz
5800 Mhz
5500 Mhz
5500 Mhz
4800 Mhz
4100 Mhz
3600 Mhz
3400 Mhz
3300 Mhz
2600 Mhz
2400 Mhz
2100 Mhz
1700 Mhz
1600 Mhz
1450 Mhz
1350 Mhz
1200 Mhz
1100 Mhz
950 Mhz
900 Mhz
860 Mhz
850 Mhz
800 Mhz
780 Mhz
375 Mhz
340 Mhz
188 Mhz
215 Mhz
200 Mhz
200 Mhz
200 Mhz
120 Mhz
110 Mhz
100 Mhz
70 Mhz
60 Mhz
50 Mhz
45 Mhz
45 Mhz
40 Mhz
40 Mhz
DC Resistance
(max.)
0.06
Ω
0.08
Ω
0.08
Ω
0.06
Ω
0.06
Ω
0.08
Ω
0.06
Ω
0.06
Ω
0.08
Ω
0.08
Ω
0.08
Ω
0.08
Ω
0.10
Ω
0.12
Ω
0.15
Ω
0.18
Ω
0.15
Ω
0.25
Ω
0.27
Ω
0.32
Ω
0.43
Ω
0.48
Ω
0.56
Ω
0.78
Ω
1.00
Ω
1.46
Ω
1.65
Ω
2.20
Ω
0.95
Ω
1.10
Ω
1.20
Ω
1.50
Ω
2.13
Ω
2.38
Ω
2.90
Ω
3.00
Ω
3.10
Ω
3.50
Ω
2.30
Ω
2.50
Ω
2.80
Ω
3.00
Ω
3.20
Ω
3.50
Ω
5.00
Ω
Rated Current
(max.)
800 mA
800 mA
800 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
600 mA
500 mA
500 mA
500 mA
500 mA
500 mA
500 mA
500 mA
500 mA
400 mA
400 mA
400 mA
350 mA
300 mA
210 mA
500 mA
450 mA
400 mA
300 mA
180 mA
150 mA
130 mA
120 mA
110 mA
100 mA
210 mA
200 mA
180 mA
160 mA
130 mA
120 mA
80 mA
Parts shown are for one tolerance only. Tolerances available are as shown in the “Tolerance” column.
NOTE: Most inductance values between those listed above are available on request.
www.johansontechnology.com
4
RF C
HARACTERISTICS
C
HARACTERISTICS
(T
YPICAL
)

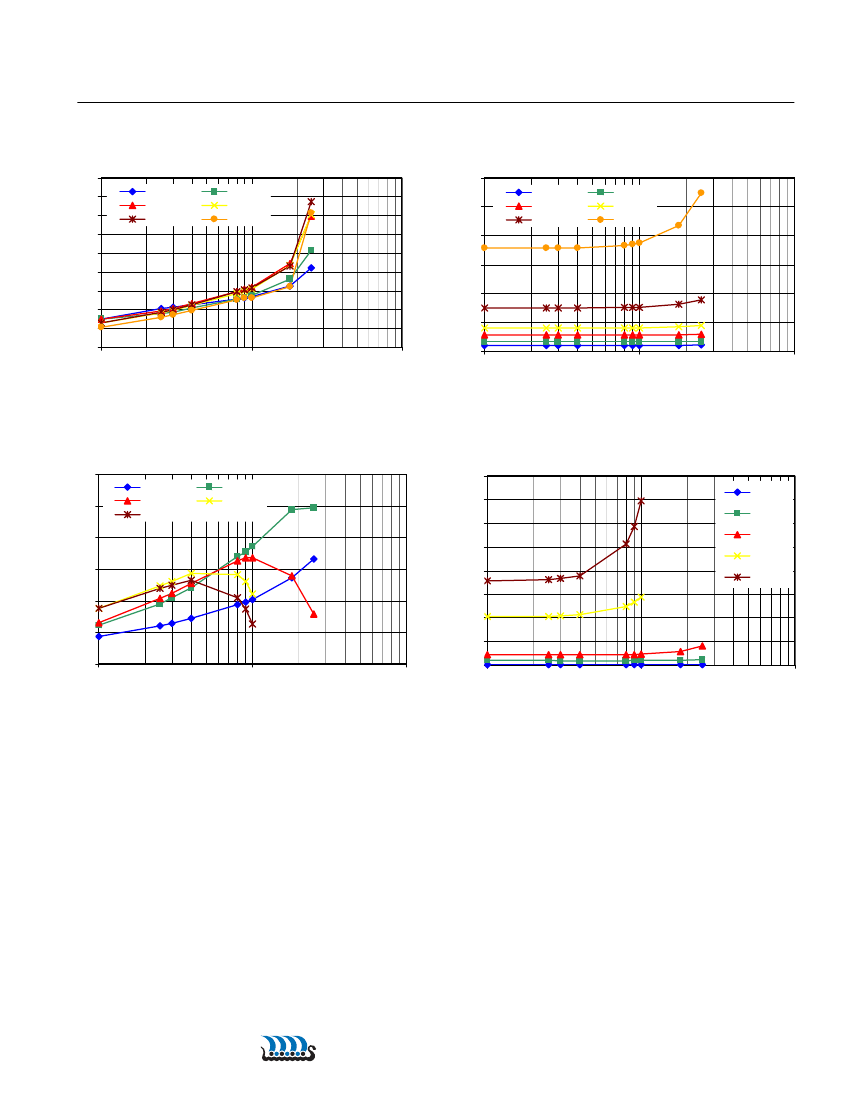

Q vs Frequency for 0402 Size
180
160
140
120
Q
100
80
60
40
20
0
100
1000
Frequency (MHz)
10000
10
0
100
2.2 nH
5.6 nH
15 nH
3.3 nH
8.2 nH
36 nH
Inductance (nH)
60
50
40
30
20
L vs Frequency for 0402 Size
2.2 nH
5.6 nH
15 nH
3.3 nH
8.2 nH
36 nH
1000
Frequency (MHz)
10000
Q vs Frequency for 0603 Size
120
100
80
Q
60
40
20
0
100
1000
Frequency (MHz)
10000
2.0 nH
22 nH
180 nH
10 nH
100 nH
400
350
300
Inductance (nH)
L vs Frequency for 0603 Size
2.0nH
10 nH
22 nH
250
200
150
100
50
0
100
1000
Frequency (MHz)
10000
100 nH
180 nH
Q / ESR measured with an Agilent 4287A Impedance Analyzer and a 16193A fixture.
SRF measured with a HP 8720C Vector Network Analyzer using a Series-Through fixture.
5
www.johansontechnology.com
京公网安备 11010802033920号
EEWORLD
