543603 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 543603

543603: DescriptionBoard Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug; CategoryThe connector The connector; File Size148KB，6 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

543603 Overview

Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug

543603 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARDS: DIN 41612; IEC 603-2
body width	0.417 inch
subject depth	0.453 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	YES
maximum insertion force	.9452 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	543603
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.512 inch
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	32
UL Flammability Code	94V-0
Evacuation force-minimum value	.9452 N
Base Number Matches	1

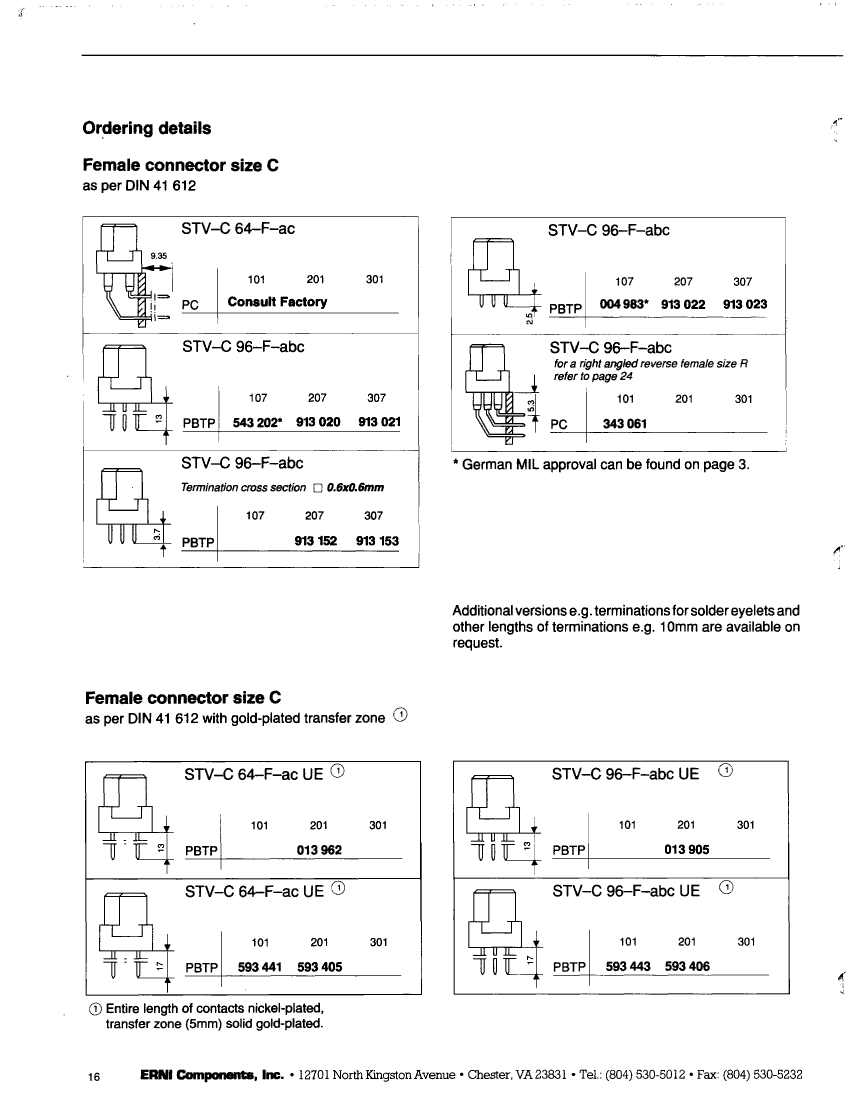

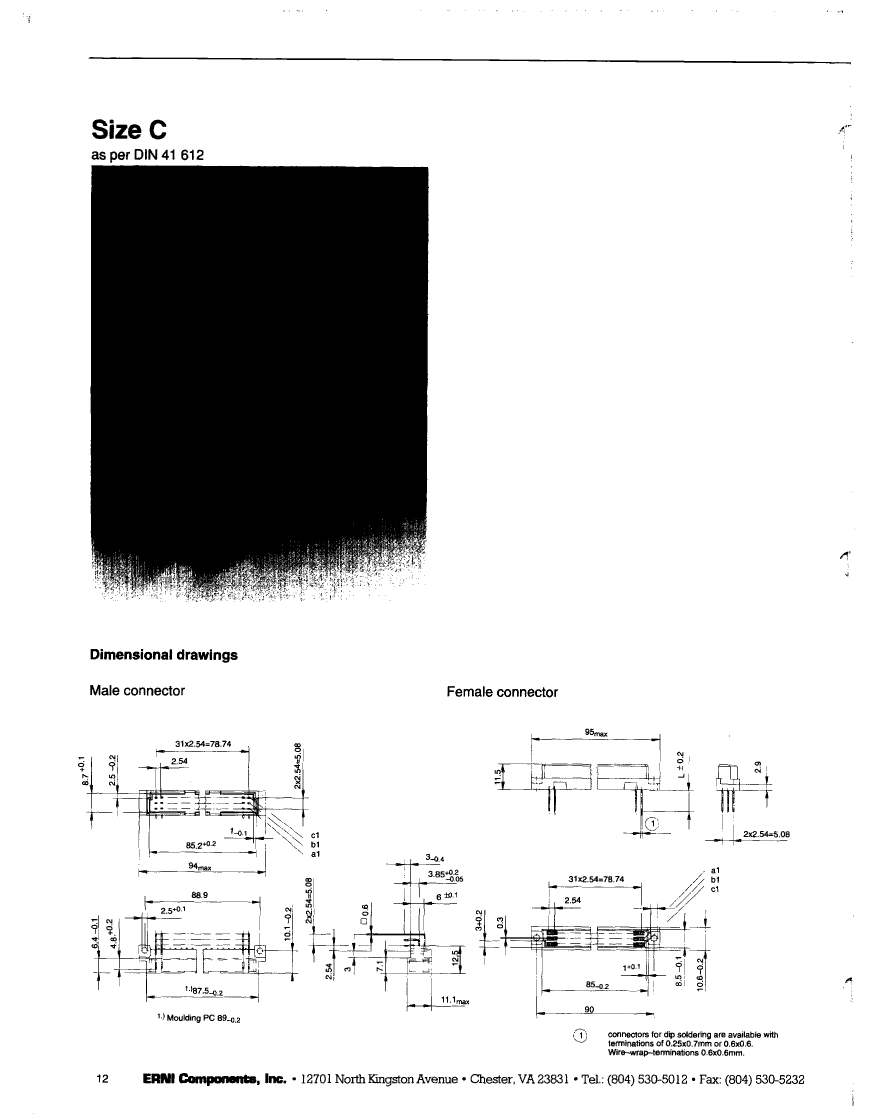

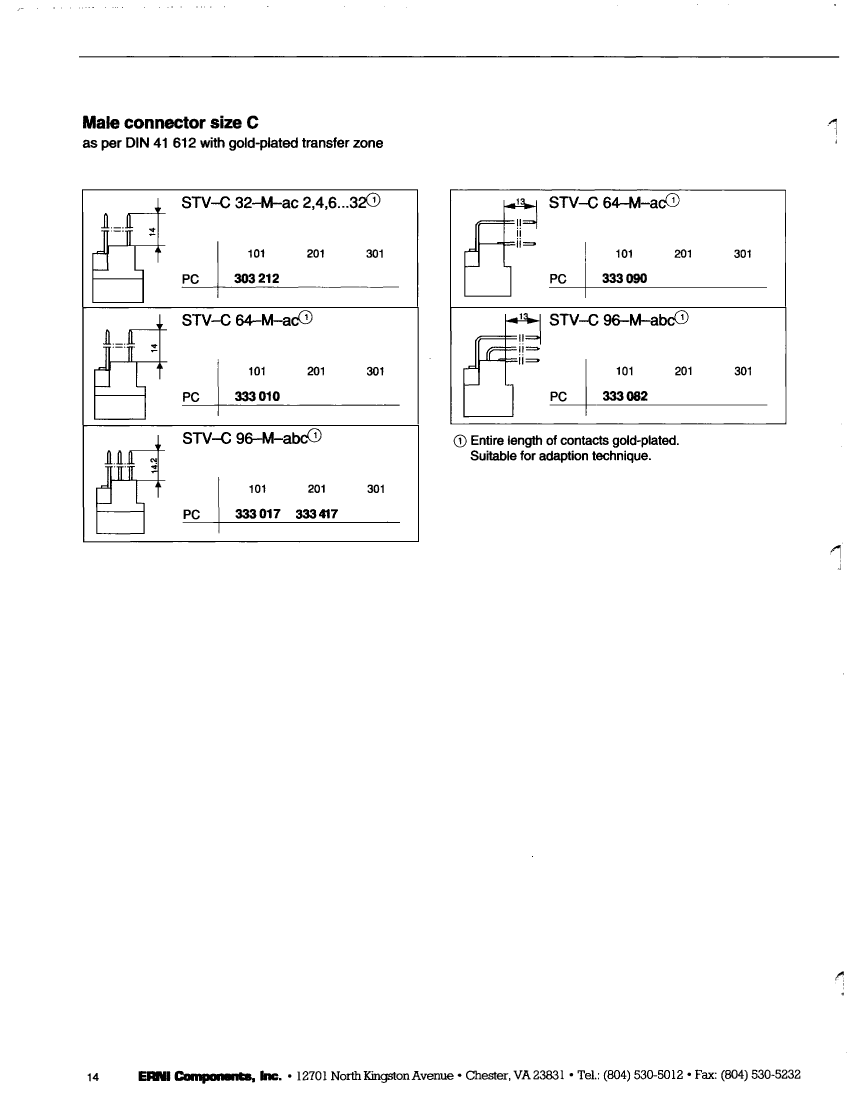

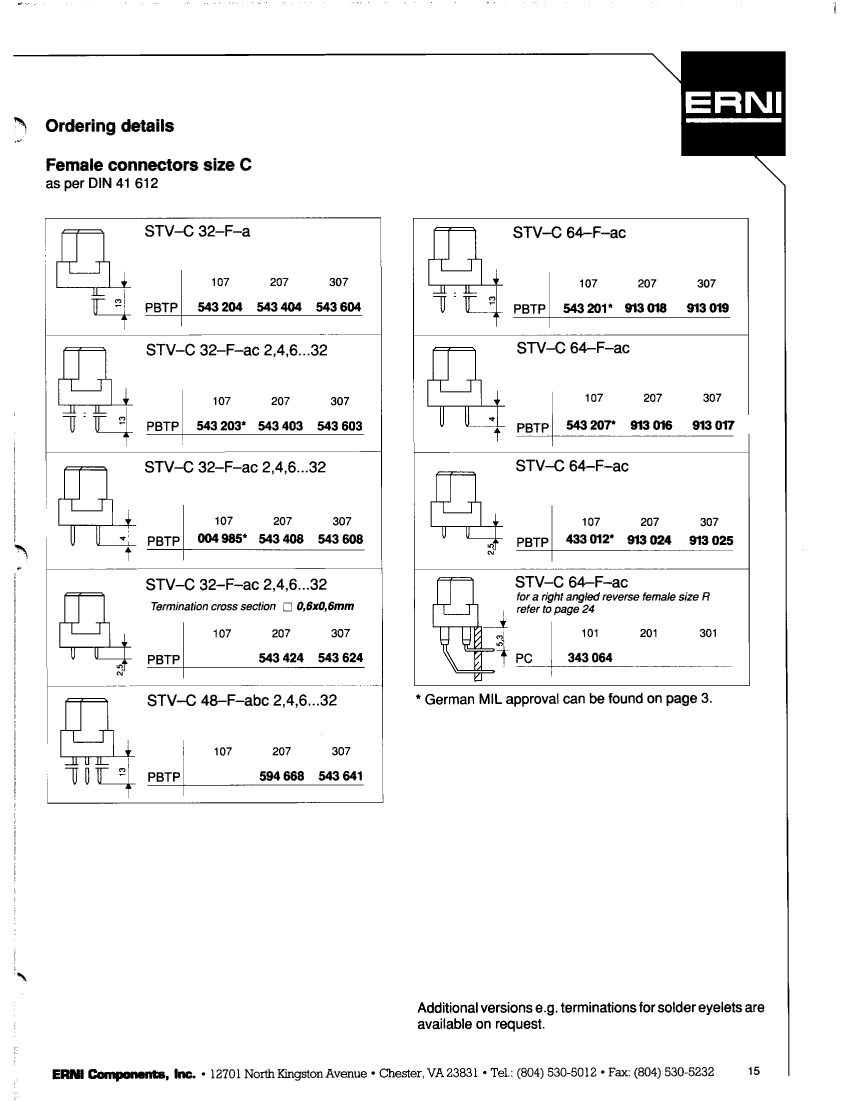

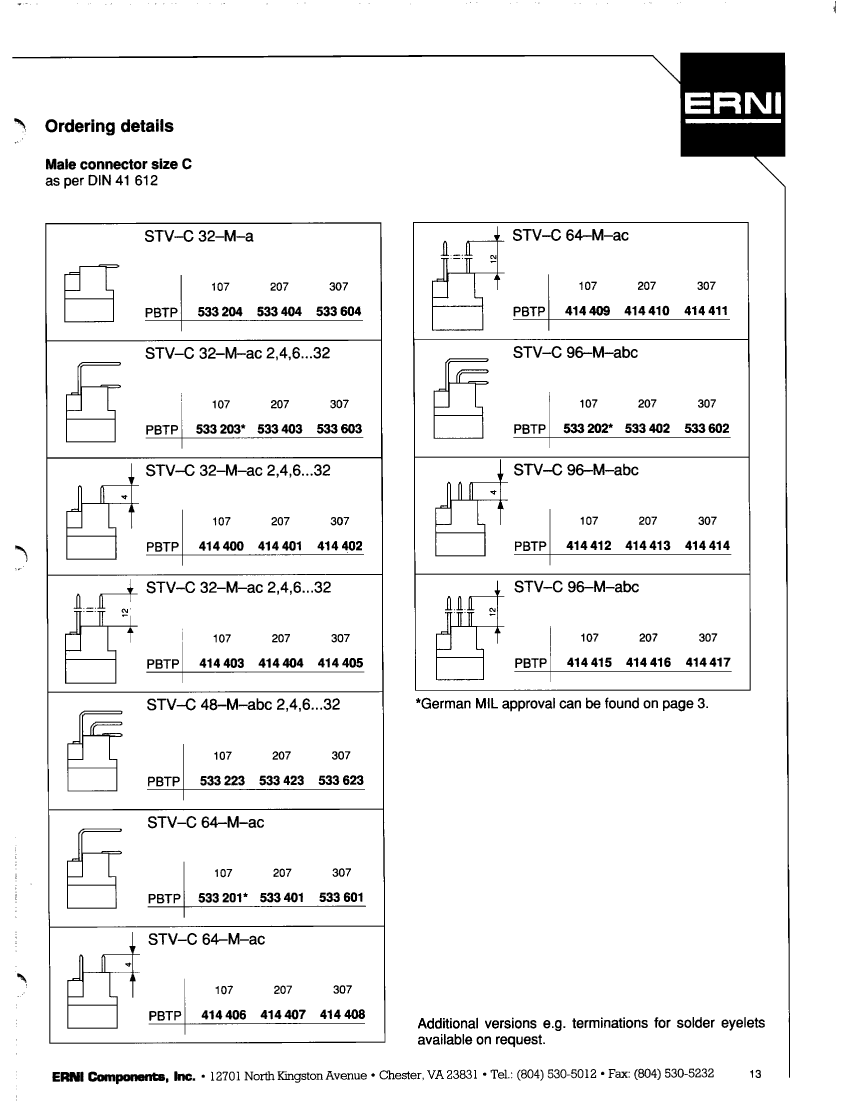

Preview

Download Datasheet

View All

543603 Related Products

	543603	543424	333417	543408	533604	543608	533623	543604	543624
Description	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Straight, Solder Terminal,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,	Board Euro Connector, 32 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug	Board Euro Connector, 48 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,	Board Euro Connector, 32 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug,	Board Euro Connector, 32 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2, WIRE WRAP TERMINATION ALSO AVAILABLE	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2	STANDARDS: DIN 41612; IEC 603-2, WIRE WRAP TERMINATION ALSO AVAILABLE
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact point gender	FEMALE	FEMALE	MALE	FEMALE	MALE	FEMALE	MALE	FEMALE	FEMALE
DIN compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	RIGHT ANGLE	STRAIGHT	RIGHT ANGLE	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	3	2	1	2	3	1	2
Terminal pitch	5.08 mm	5.08 mm	2.54 mm	5.08 mm	2.54 mm	5.08 mm	5.08 mm	2.54 mm	5.08 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	32	96	32	32	32	48	32	32
UL Flammability Code	94V-0	94V-0	94V-1	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.417 inch	0.417 inch	-	0.417 inch	0.437 inch	0.417 inch	0.437 inch	0.417 inch	0.417 inch
subject depth	0.453 inch	0.453 inch	-	0.453 inch	0.492 inch	0.453 inch	0.692 inch	0.453 inch	0.453 inch
body length	3.74 inch	3.74 inch	-	3.74 inch	3.701 inch	3.74 inch	3.701 inch	3.74 inch	3.74 inch
Body/casing type	PLUG	PLUG	-	PLUG	RECEPTACLE	PLUG	RECEPTACLE	PLUG	PLUG
Contact to complete cooperation	AU	AU	-	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	-	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact resistance	20 mΩ	20 mΩ	-	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	-	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Durability	50 Cycles	400 Cycles	-	400 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
maximum insertion force	.9452 N	.9452 N	-	.9452 N	.9452 N	.9452 N	-	.9452 N	.9452 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	-	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	-	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Loaded row name	A,C	A,C	-	A,C	A	A,C	A,B,C	A	A,C
PCB row number	3	3	-	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
polarization key	ENDS	ENDS	-	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	1 A	1 A	-	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL, CSA	UL, CSA	-	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.512 inch	0.098 inch	-	0.157 inch	0.118 inch	0.157 inch	0.118 inch	0.512 inch	0.098 inch
Evacuation force-minimum value	.9452 N	.9452 N	-	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N	.9452 N
Base Number Matches	1	1	1	1	1	1	1	-	-
Maker	-	ERNI	-	ERNI	ERNI	-	-	ERNI	ERNI
