2SC5161: DescriptionHigh Voltage Switching Transistor(400V, 2A); CategoryDiscrete semiconductor The transistor; File Size114KB，4 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SC5161 Overview

High Voltage Switching Transistor(400V, 2A)

2SC5161 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	compli
Maximum collector current (IC)	2 A
Configuration	Single
Minimum DC current gain (hFE)	16
JESD-609 code	e2
Polarity/channel type	NPN
Maximum power dissipation(Abs)	10 W
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Base Number Matches	1

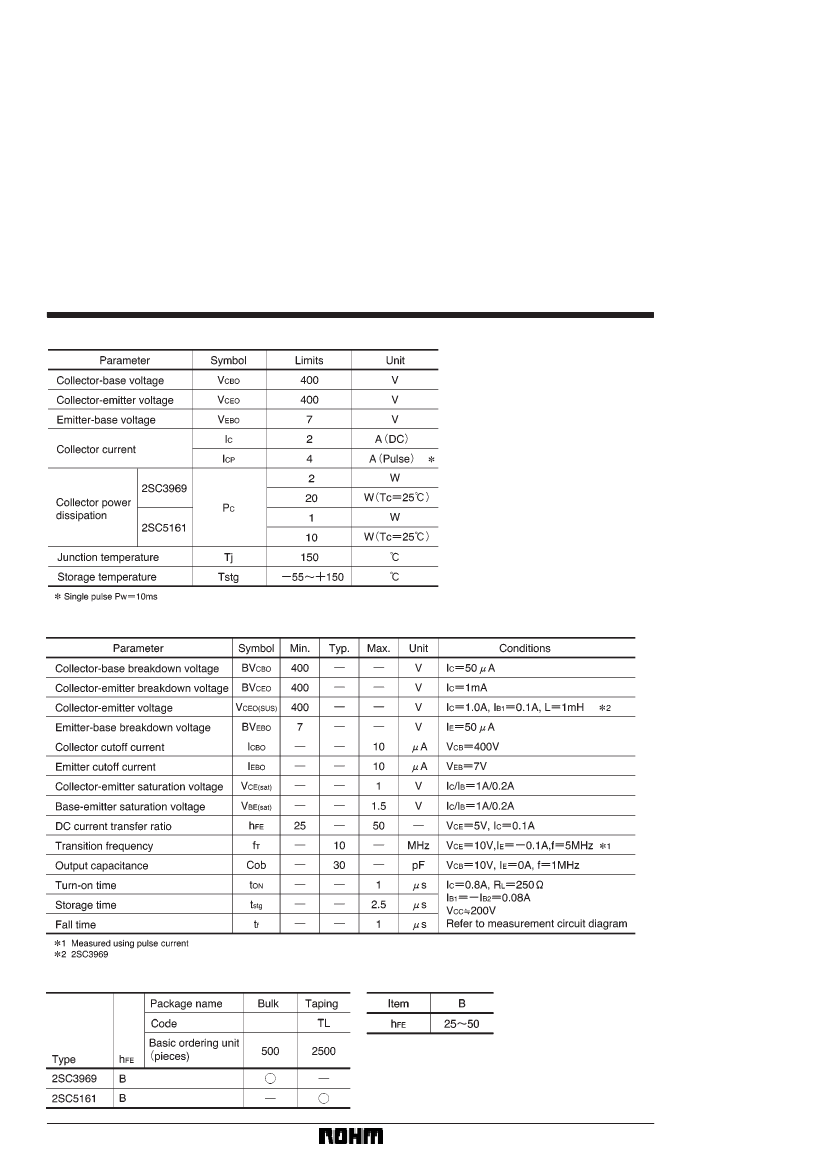

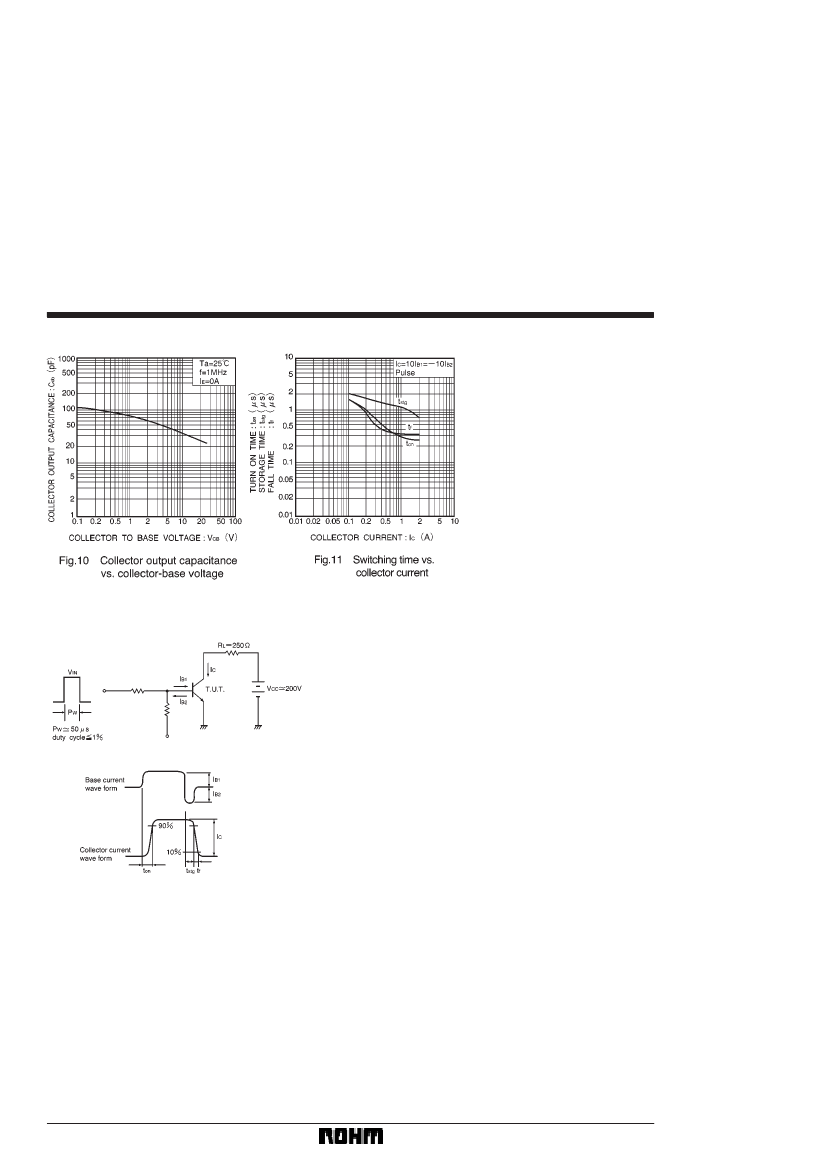

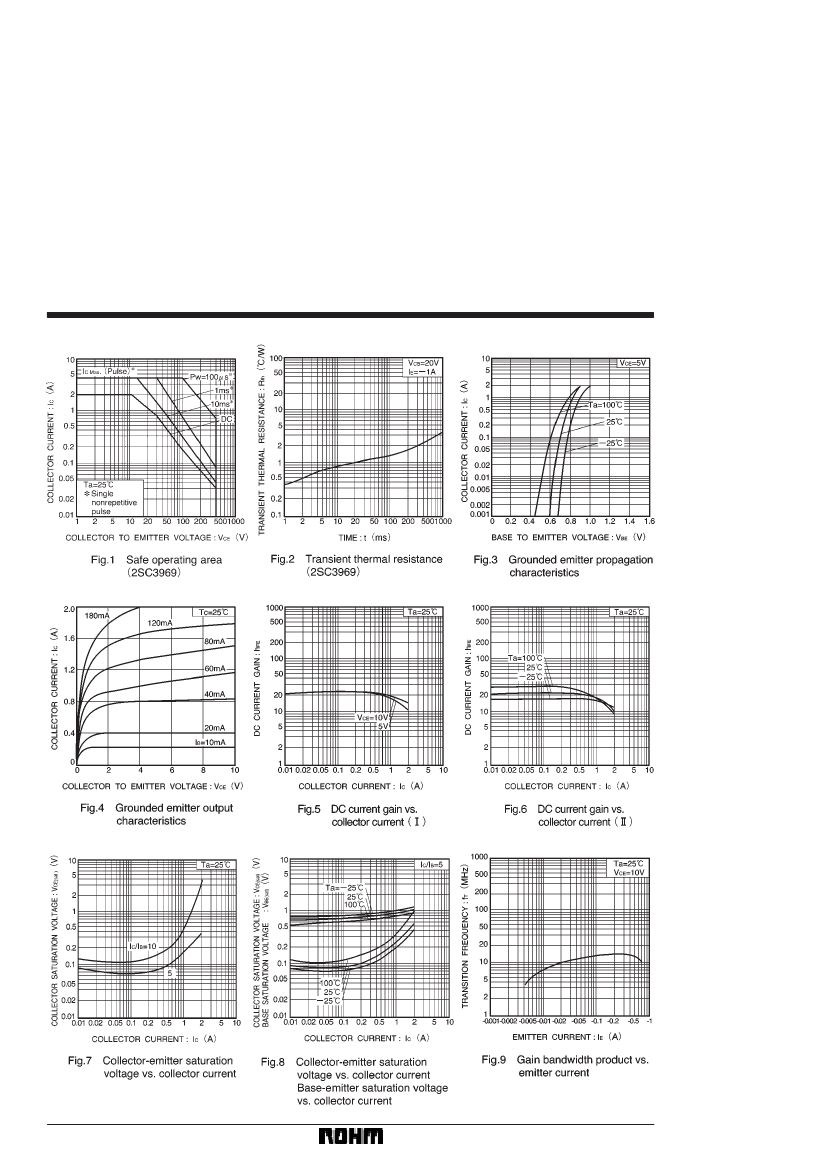

Preview

Download Datasheet

View All

Transistors

High Voltage Switching Transistor

(400V, 2A)

2SC3969 / 2SC5161

FFeatures

1) Low V

CE(sat)

.

V

CE(sat)

= 0.15V (Typ.)

(I

C

/ I

B

= 1A / 0.2A)

2) High breakdown voltage.

V

CEO

= 400V

3) Fast switching.

t

r

= 1.0µs

(I

C

= 0.8A)

FStructure

Three-layer, diffused planar type

NPN silicon transistor

FExternal

dimensions (Units: mm)

(96-698-C14)

236

2SC5161 Related Products

	2SC5161	2SC3969
Description	High Voltage Switching Transistor(400V, 2A)	High Voltage Switching Transistor(400V, 2A)
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compli	unknow
Maximum collector current (IC)	2 A	2 A
Configuration	Single	SINGLE
Minimum DC current gain (hFE)	16	16
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	10 W	20 W
surface mount	YES	NO
Base Number Matches	1	1
