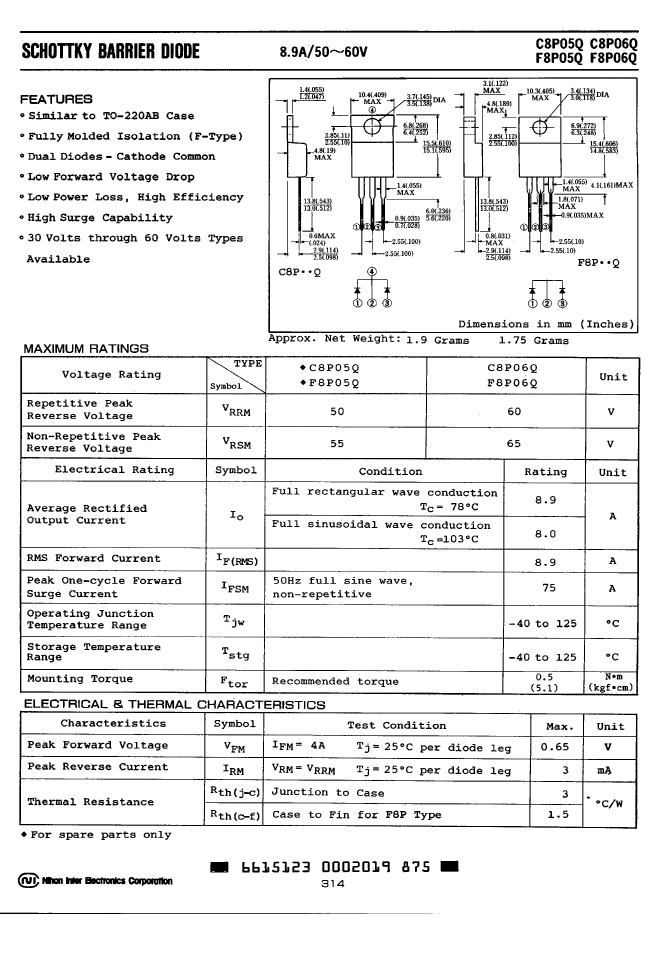

Rectifier Diode, Schottky, 1 Phase, 2 Element, 8A, 50V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3

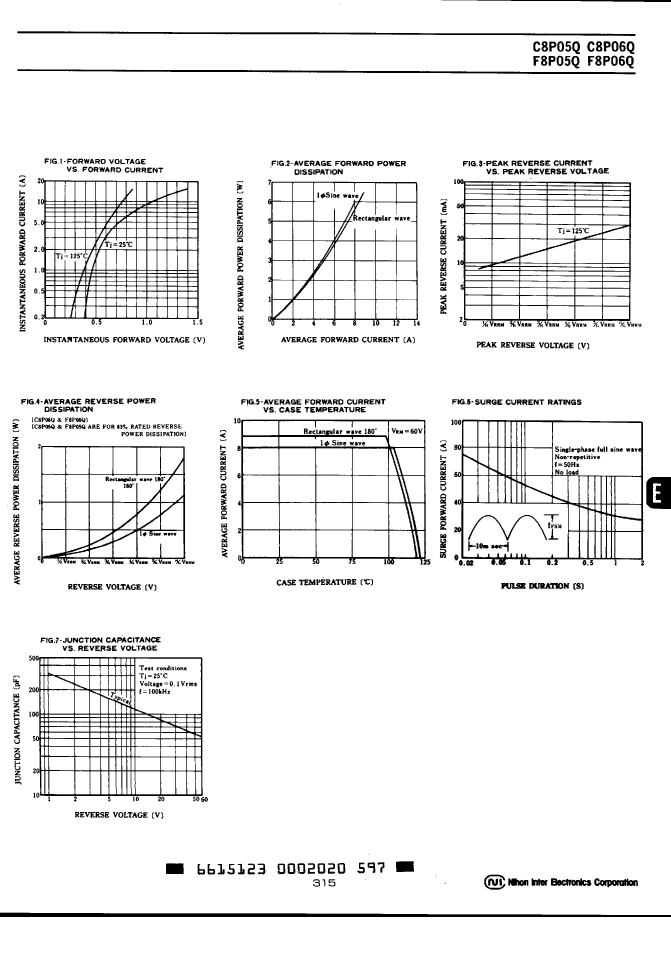

| Parameter Name | Attribute value |
| Parts packaging code | TO-220AB |
| package instruction | R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Is Samacsys | N |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.65 V |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 75 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 8 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V |
| Maximum reverse current | 3000 µA |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| F8P05Q | C8P06Q | C8P05Q | F8P06Q | |
|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 2 Element, 8A, 50V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3 | Rectifier Diode, Schottky, 1 Phase, 2 Element, 8A, 60V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 8A, 50V V(RRM), Silicon, SIMILAR TO TO-220AB, 3 PIN | Rectifier Diode, Schottky, 1 Phase, 2 Element, 8A, 60V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3 |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| package instruction | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | CATHODE | CATHODE | ISOLATED |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.65 V | 0.65 V | 0.65 V | 0.65 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 75 A | 75 A | 75 A | 75 A |
| Number of components | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 8 A | 8 A | 8 A | 8 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 50 V | 60 V | 50 V | 60 V |
| Maximum reverse current | 3000 µA | 3000 µA | 3000 µA | 3000 µA |
| surface mount | NO | NO | NO | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Maker | - | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation |
