F6P10F datasheet, PDF - EEWORLD Datasheet

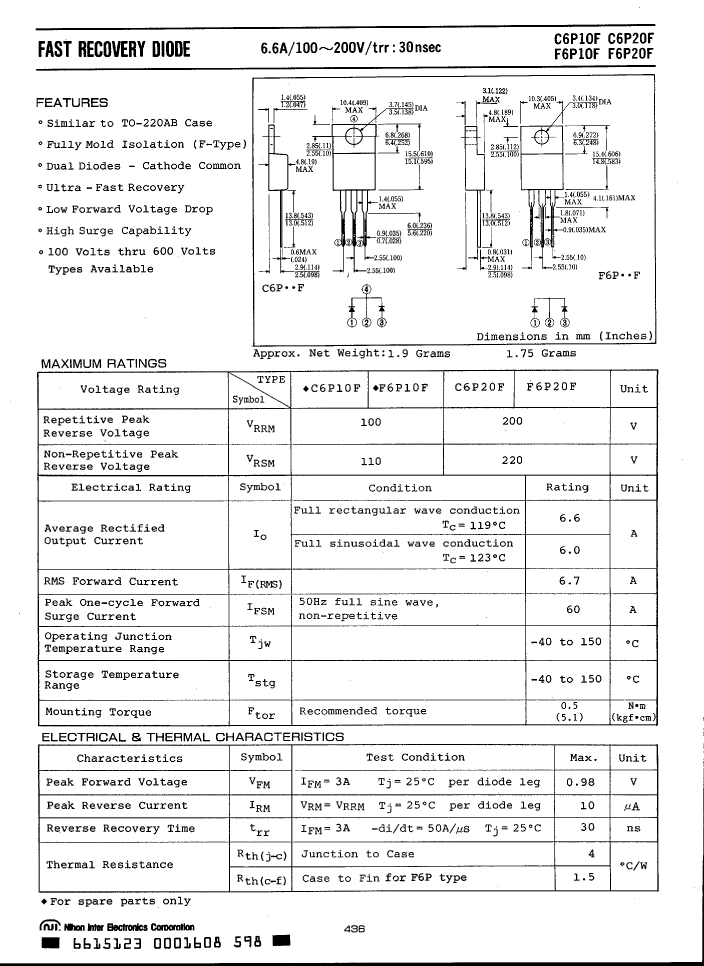

F6P10F: DescriptionRectifier Diode, 1 Phase, 2 Element, 6A, 100V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3; CategoryDiscrete semiconductor diode; File Size65KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric View All

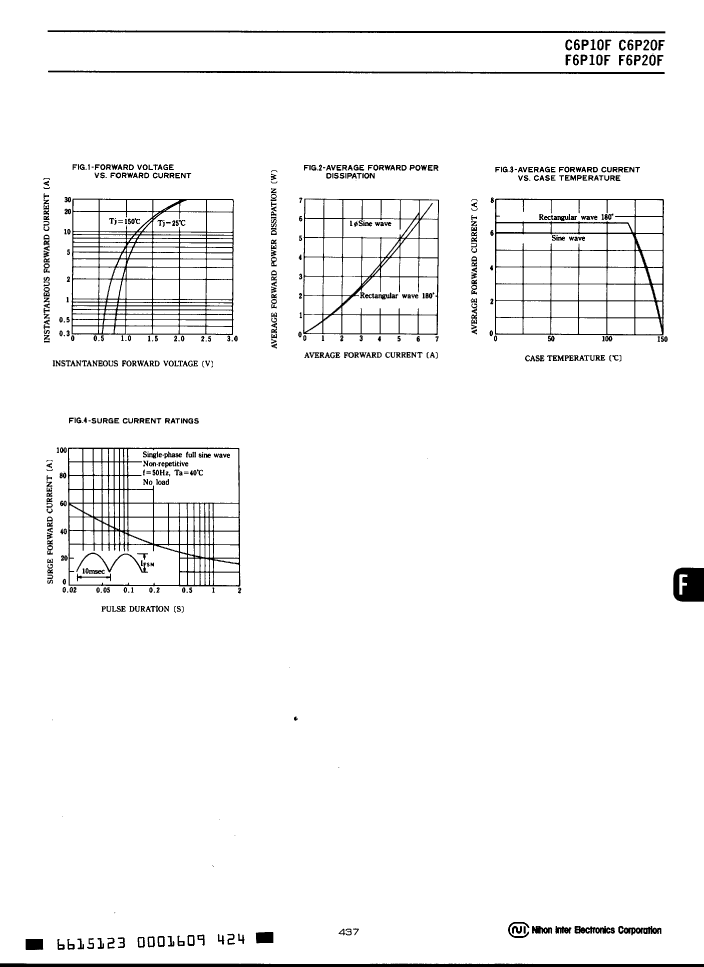

F6P10F Overview

Rectifier Diode, 1 Phase, 2 Element, 6A, 100V V(RRM), Silicon, SIMILAR TO TO-220AB, FULL PACK-3

Parameter Name	Attribute value
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.98 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	60 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	10 µA
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1
