74LS375N datasheet, PDF - EEWORLD Datasheet

74LS375N: DescriptionD Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size108KB，4 Pages; ManufacturerSignetics

Download Datasheet Parametric Compare View All

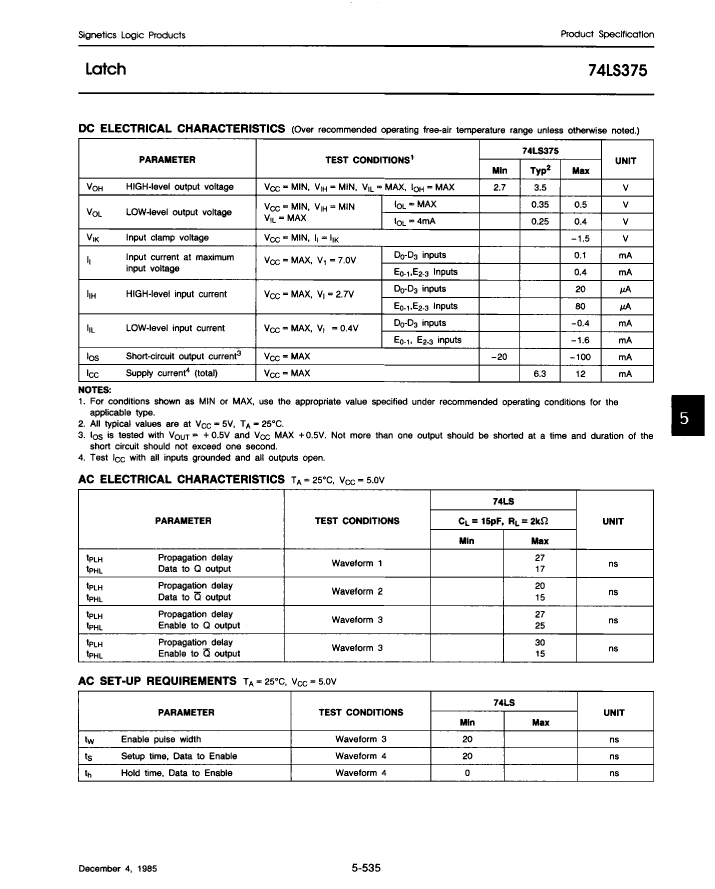

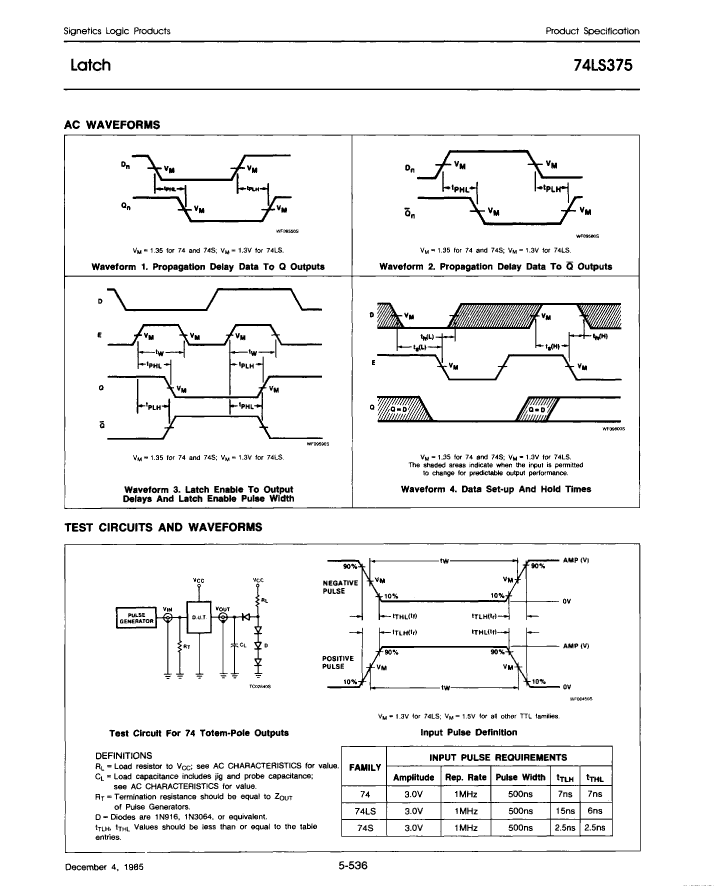

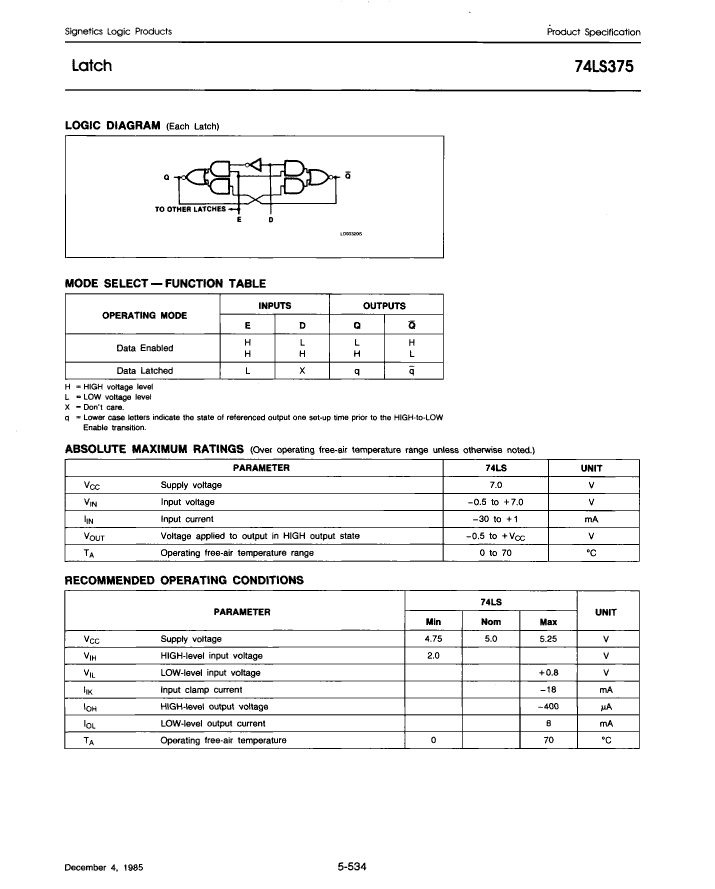

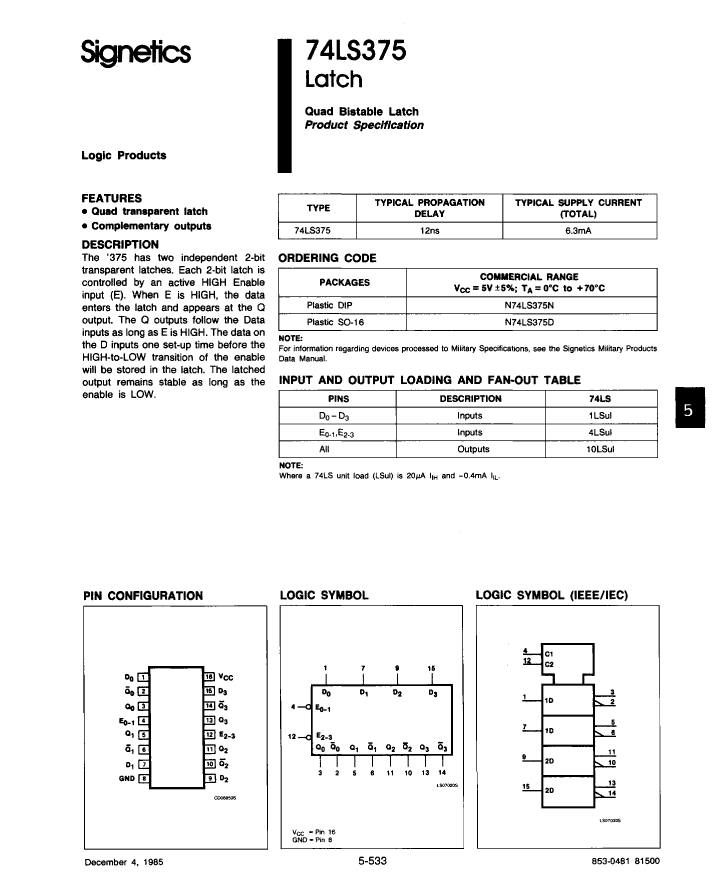

74LS375N Overview

D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknown
Is Samacsys	N
series	LS
JESD-30 code	R-PDIP-T16
Logic integrated circuit type	D LATCH
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	HIGH LEVEL
Base Number Matches	1

	74LS375N
Description	D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16
package instruction	DIP,
Reach Compliance Code	unknown
Is Samacsys	N
series	LS
JESD-30 code	R-PDIP-T16
Logic integrated circuit type	D LATCH
Number of digits	2
Number of functions	2
Number of terminals	16
Maximum operating temperature	70 °C
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	25 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Trigger type	HIGH LEVEL
Base Number Matches	1
