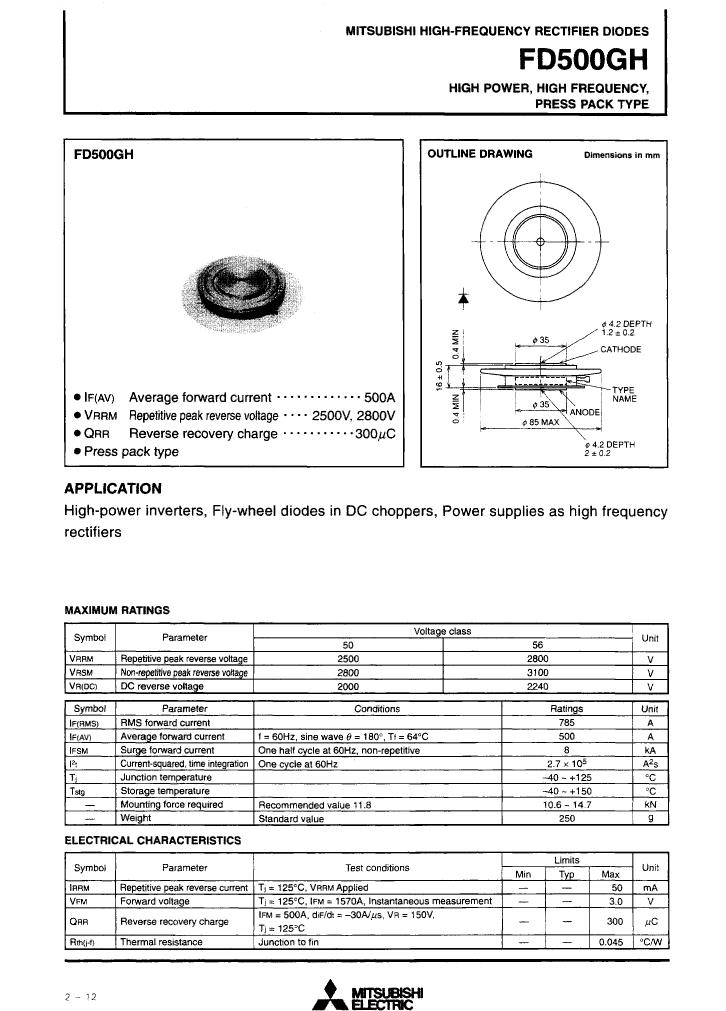

FD500GH-56 datasheet, PDF - EEWORLD Datasheet

FD500GH-56: DescriptionRectifier Diode, 1 Phase, 1 Element, 500A, 2800V V(RRM), Silicon, PRESSPACK-2; CategoryDiscrete semiconductor diode; File Size130KB，3 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

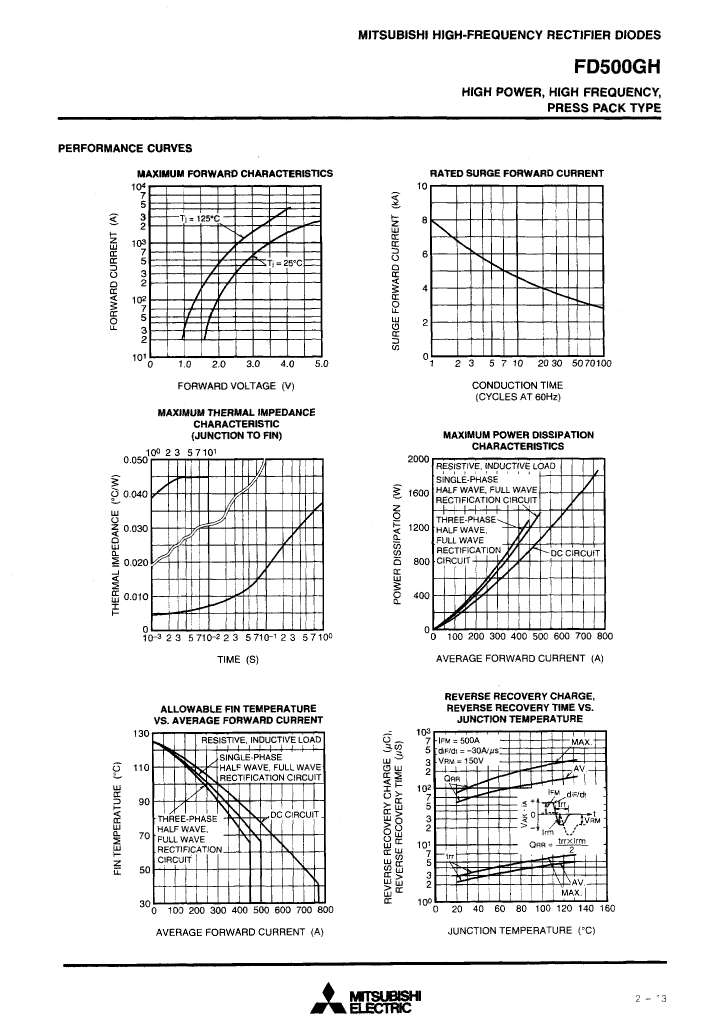

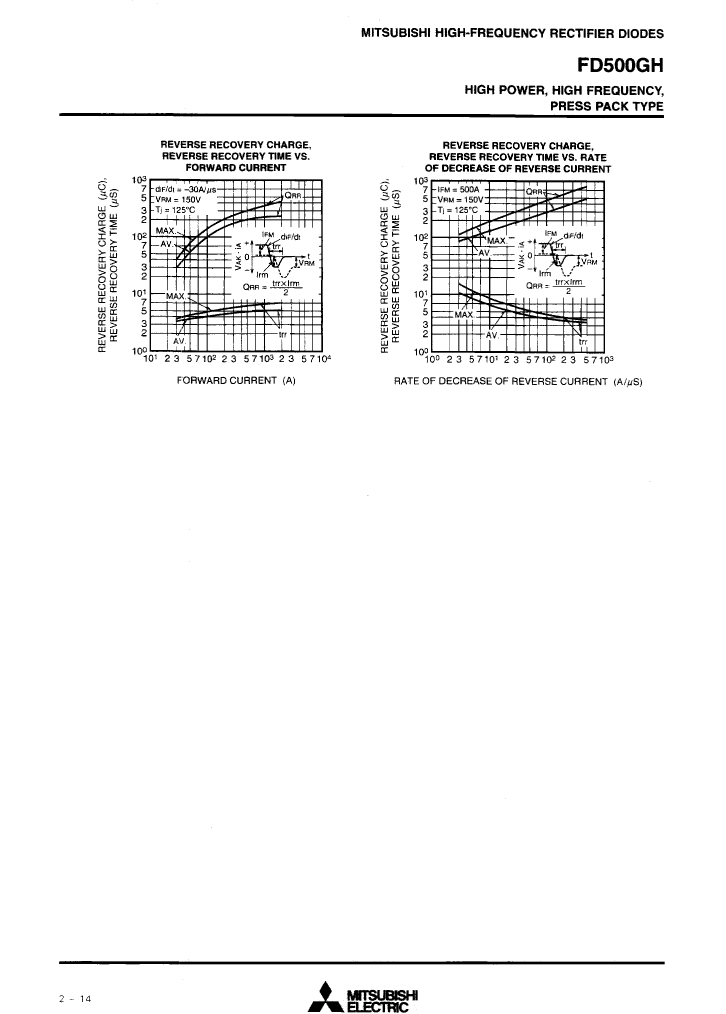

FD500GH-56 Overview

Rectifier Diode, 1 Phase, 1 Element, 500A, 2800V V(RRM), Silicon, PRESSPACK-2

Parameter Name	Attribute value
package instruction	O-CEPF-N2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
application	POWER
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	3 V
JESD-30 code	O-CEPF-N2
Maximum non-repetitive peak forward current	8000 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	500 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	PRESS FIT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	2800 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Base Number Matches	1

	FD500GH-56	FD500GH-50
Description	Rectifier Diode, 1 Phase, 1 Element, 500A, 2800V V(RRM), Silicon, PRESSPACK-2	Rectifier Diode, 1 Phase, 1 Element, 500A, 2500V V(RRM), Silicon, PRESSPACK-2
package instruction	O-CEPF-N2	O-CEPF-N2
Contacts	2	2
Reach Compliance Code	unknown	unknow
ECCN code	EAR99	EAR99
application	POWER	POWER
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	3 V	3 V
JESD-30 code	O-CEPF-N2	O-CEPF-N2
Maximum non-repetitive peak forward current	8000 A	8000 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	500 A	500 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	ROUND
Package form	PRESS FIT	PRESS FIT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	2800 V	2500 V
surface mount	YES	YES
Terminal form	NO LEAD	NO LEAD
Terminal location	END	END
