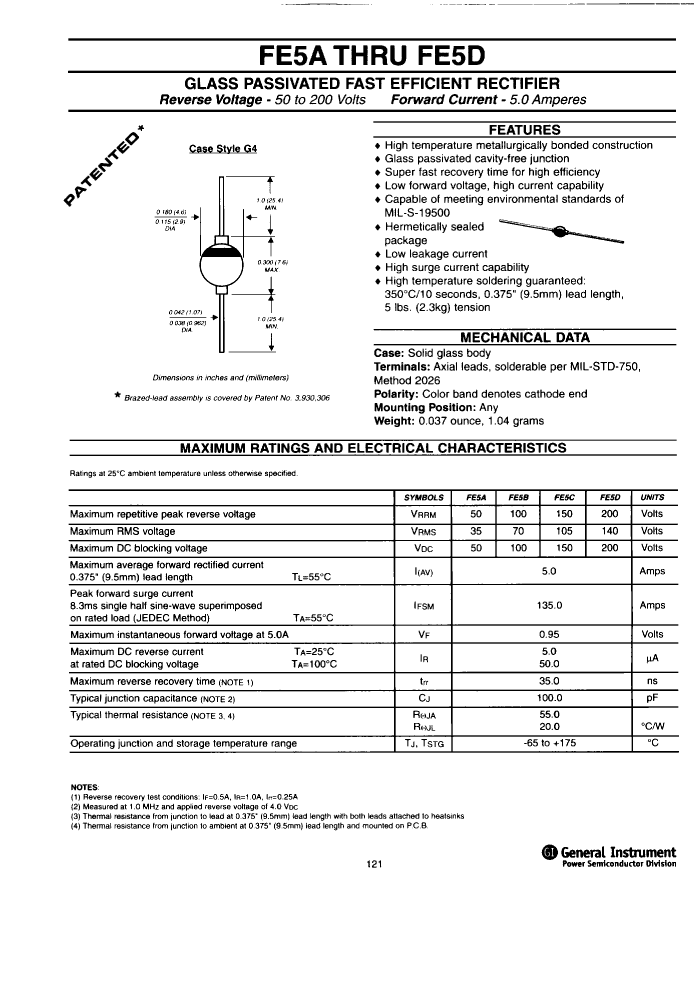

FE5C Overview

Rectifier Diode, 1 Phase, 1 Element, 5A, 150V V(RRM), Silicon,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Other features	PATENTED DEVICE
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE

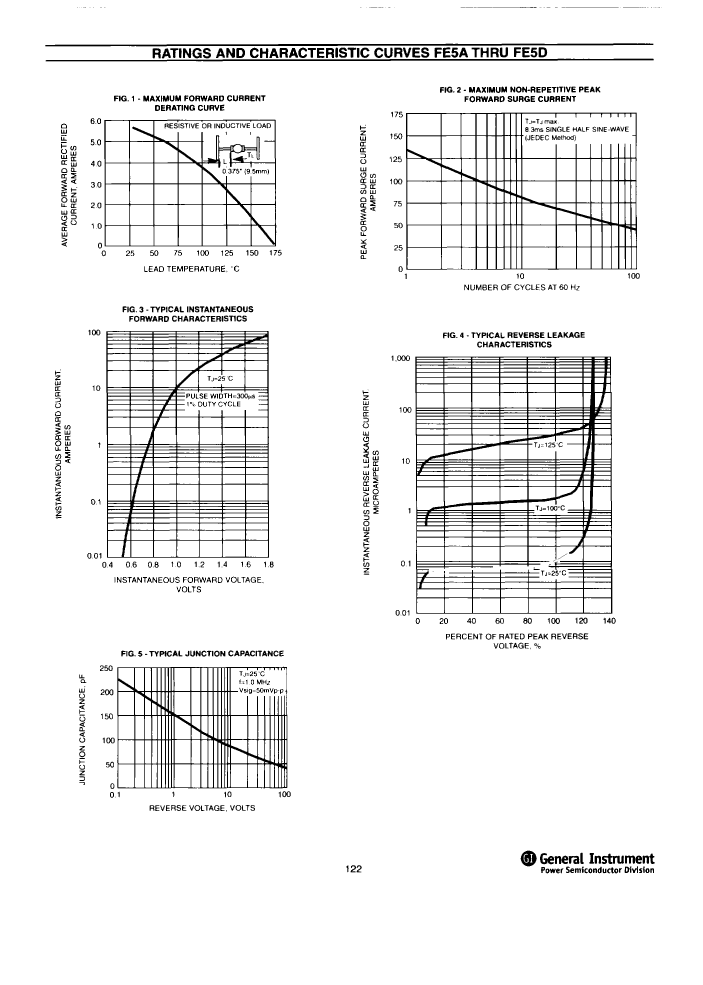

Maximum forward voltage (VF)	0.95 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	135 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	5 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

	FE5C	FE5A	FE5B	FE5D
Description	Rectifier Diode, 1 Phase, 1 Element, 5A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 5A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 5A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 5A, 200V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.95 V	0.95 V	0.95 V	0.95 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	135 A	135 A	135 A	135 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	5 A	5 A	5 A	5 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	150 V	50 V	100 V	200 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.035 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
