FR256 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR256

Preview

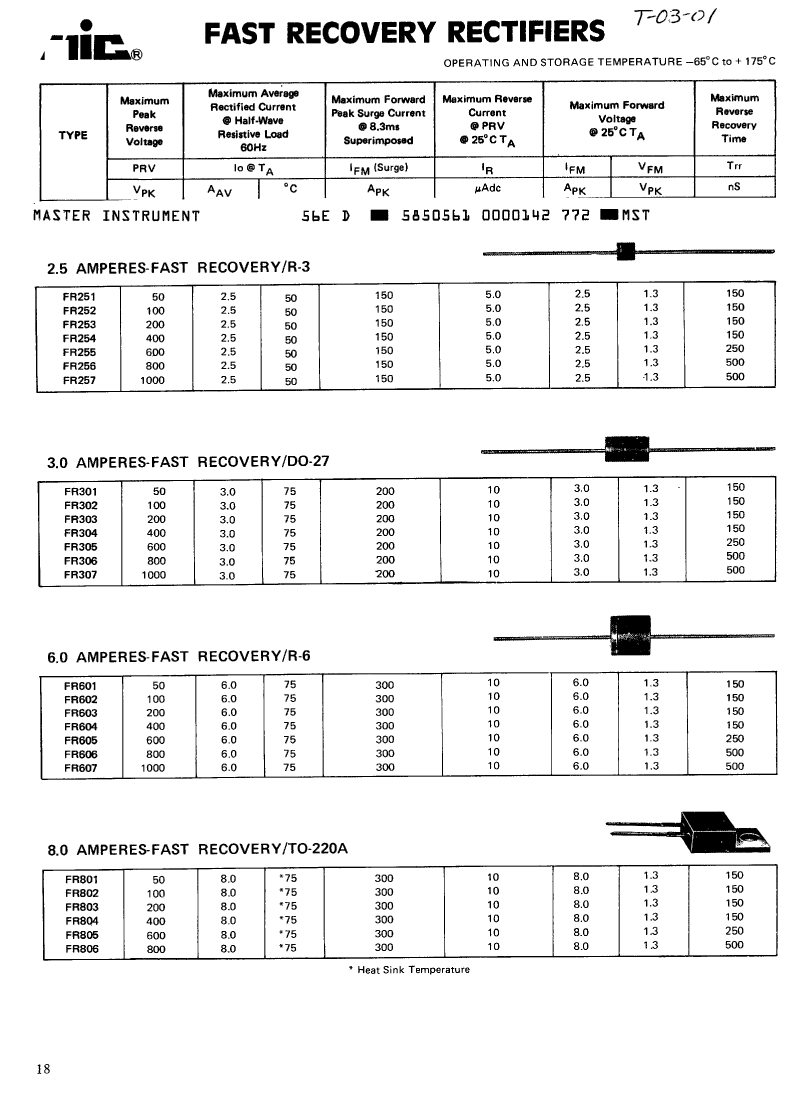

FR256: DescriptionRectifier Diode, 1 Element, 2.5A, 800V V(RRM); CategoryDiscrete semiconductor diode; File Size41KB，1 Pages; ManufacturerMaster Instrument Corp

Download Datasheet Parametric Compare View All

FR256 Overview

Rectifier Diode, 1 Element, 2.5A, 800V V(RRM)

FR256 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Is Samacsys	N
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-609 code	e0
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	2.5 A
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

FR256 Related Products

	FR256	FR254	FR803	FR804	FR253	FR801	FR255	FR305	FR607
Description	Rectifier Diode, 1 Element, 2.5A, 800V V(RRM)	Rectifier Diode, 1 Element, 2.5A, 400V V(RRM)	Rectifier Diode, 1 Element, 8A, 200V V(RRM)	Rectifier Diode, 1 Element, 8A, 400V V(RRM)	Rectifier Diode, 1 Element, 2.5A, 200V V(RRM)	Rectifier Diode, 1 Element, 8A, 50V V(RRM)	Rectifier Diode, 1 Element, 2.5A, 600V V(RRM)	Rectifier Diode, 1 Element, 3A, 600V V(RRM)	Rectifier Diode, 1 Element, 6A, 1000V V(RRM)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of components	1	1	1	1	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	2.5 A	2.5 A	8 A	8 A	2.5 A	8 A	2.5 A	3 A	6 A
Maximum repetitive peak reverse voltage	800 V	400 V	200 V	400 V	200 V	50 V	600 V	600 V	1000 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.2 µs	0.15 µs	0.15 µs	0.15 µs	0.25 µs	0.15 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	-	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp	Master Instrument Corp
Maximum non-repetitive peak forward current	-	-	400 A	400 A	-	400 A	-	200 A	300 A
