FFKDSA1/V1-7,62-14 Overview

Barrier Strip Terminal Block,

FFKDSA1/V1-7,62-14 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

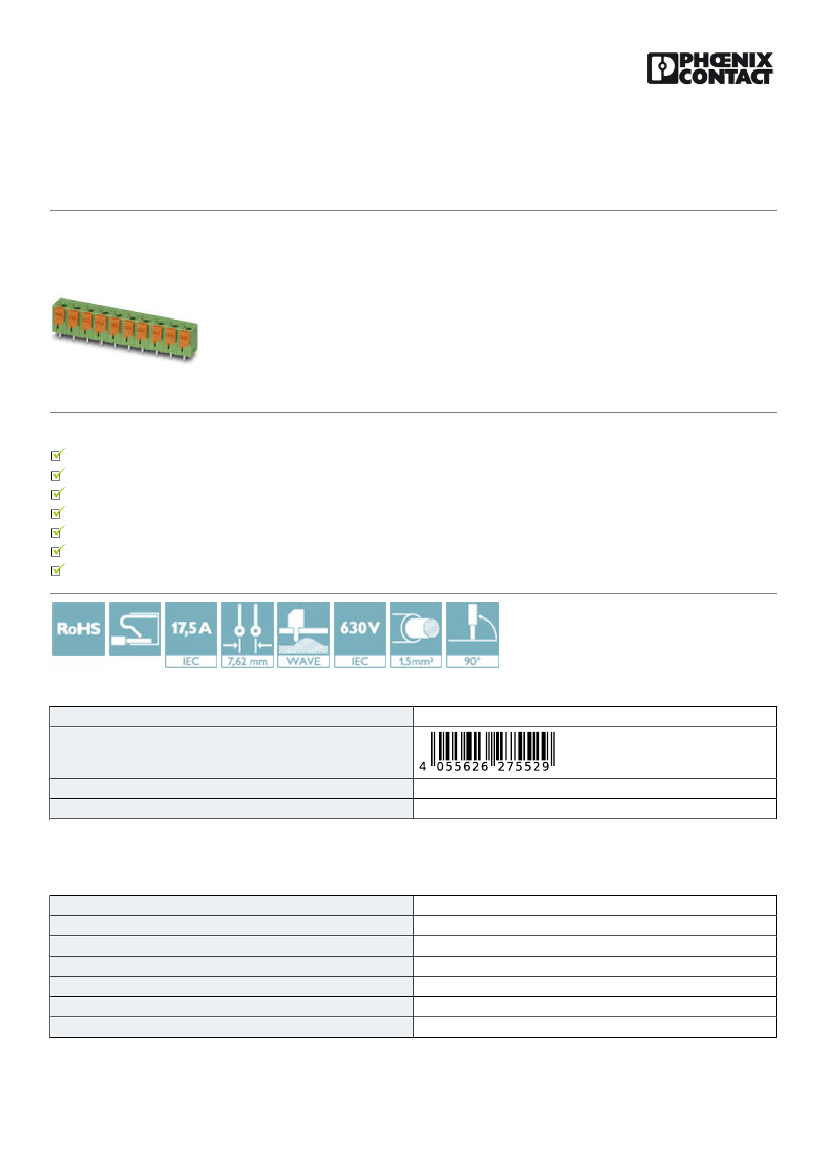

https://www.phoenixcontact.com/in/products/1712051

FFKDSA1/V1-7,62-14 - 1712051

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PCB terminal block, nominal current: 17.5 A, nom. voltage: 630 V, pitch: 7.62 mm, number of positions: 14,

connection method: Push-in spring connection, mounting: Wave soldering, color: green. The article can be

aligned to create different nos. of positions!

The figure shows the 10-position

version

Your advantages

Time saving push-in connection, tools not required

Defined contact force ensures that contact remains stable over the long term

Intuitive use through colour coded actuation lever

Operation and conductor connection from one direction enable integration into front of device

Two solder pins reduce the mechanical strain on the soldering spots

The latching on the side enables various numbers of positions to be combined

Vertical connection enables multi-row arrangement on the PCB

Key Commercial Data

Packing unit

GTIN

Custom tariff number

4055626275529

85369010

1

Technical data

Dimensions

Length [ l ]

Pitch

Dimension a

Width [ w ]

Height

Height [ h ]

Solder pin [P]

12.7 mm

7.62 mm

99.06 mm

106.68 mm

17 mm

13.6 mm

3.4 mm

01/14/2019 Page 1 / 2
