R197.120.G01

Description
RF SMB Connector, Male, Cable Mount, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size121KB,4 Pages
ManufacturerRadiall
Websitehttps://www.radiall.com/
Download Datasheet Parametric View All

R197.120.G01 Overview

RF SMB Connector, Male, Cable Mount, Crimp Terminal, Plug

R197.120.G01 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
Is SamacsysN
Other featuresAPPLICABLE CABLE: RG 58
Body/casing typePLUG
Characteristic impedance50 Ω
Connector typeRF SMB CONNECTOR
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.35 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
MIL complianceNO
Manufacturer's serial numberSMBCARLOCK
Installation methodRIGHT ANGLE
Installation typeCABLE
Maximum operating frequency2 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeCRIMP
voltage standing wave ratio1.1
Base Number Matches1
TECHNICAL DATA SHEET
1/4

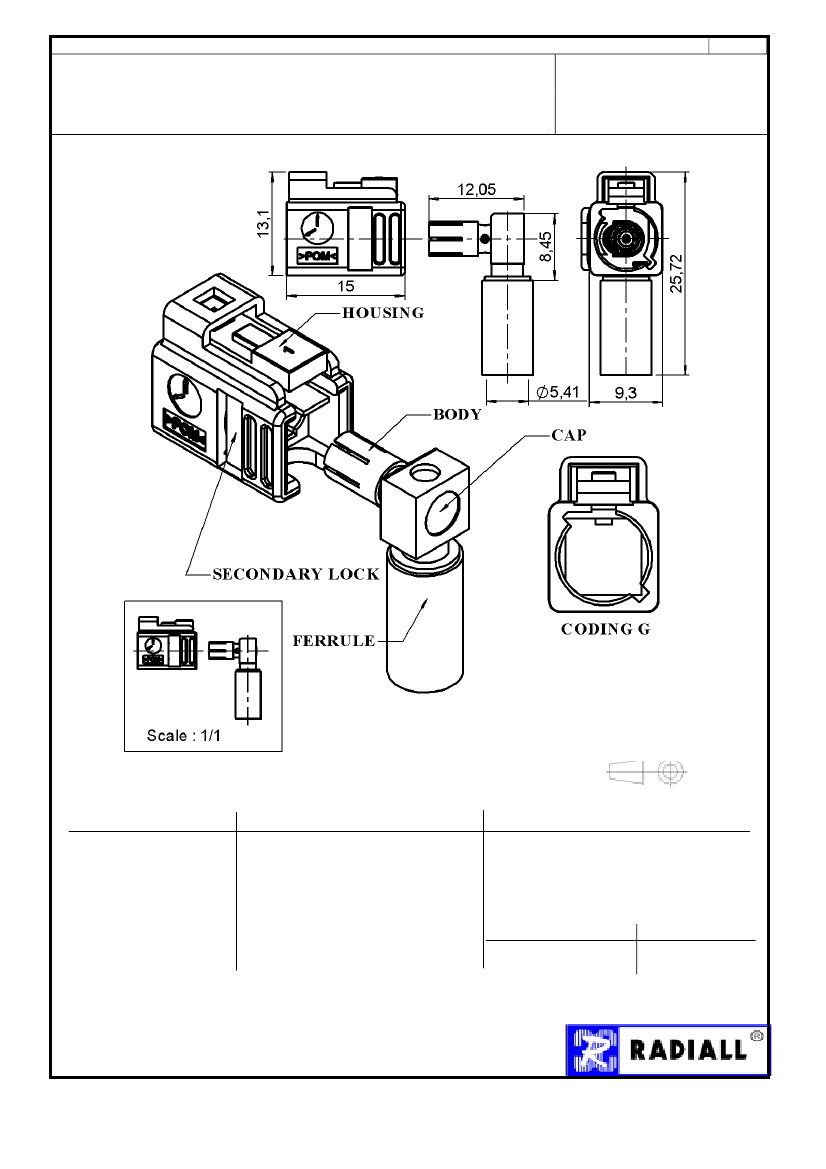

R/A COAX PLUG+HOUSING
CABLE 5/50
R197.120.G01
Series :
SMB
CARLOCK
All dimensions are in mm.
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
HOUSING
-
MATERIALS
BRASS
BRONZE
BRONZE
PTFE
-
BRONZE
-
Polyoxyméthylène (POM)
-
PLATINGS
(µm)
NICKEL .
GOLD OVER NICKEL
NICKEL .
NICKEL .
-
UL CLASSIFICATION
UL 94 V-2
-
COLOR
GREY RAL7031
PURPLE RAL4006
Secondary Lock
Polyoxyméthylène (POM)
UL 94V-2
*
According to FAKRA specifications
Issue : 0044 A
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
