GMF-NCX15GDFDL2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> GMF-NCX15GDFDL2

GMF-NCX15GDFDL2: DescriptionD Subminiature Connector, 15 Contact(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size59KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric View All

GMF-NCX15GDFDL2 Overview

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal,

GMF-NCX15GDFDL2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Is Samacsys	N
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Housing size	B
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

Rectangular connectors

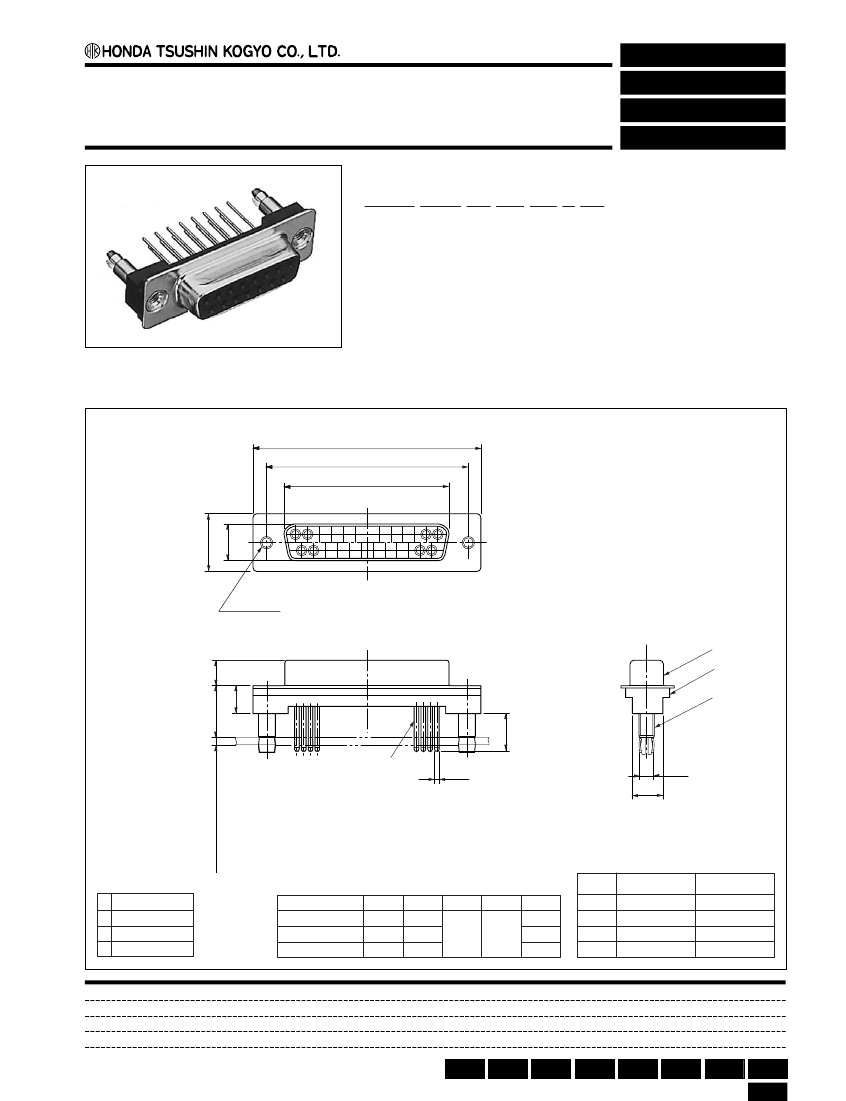

Straight DIP type female connector for PCBs

GMF-NCX( )GDFDL( )

Ω

Configuration of product Part No.

For PCBs

Straight DIP

GME- NCX ( ) GD FD L ( )

™

∞

§ ¶

¡ Series name

¶ Contact plating

™ Shell plating

1: Min 0.3 µm partial Gold plate

Nickel plate (For a male connector, the 2: Min 0.76 µm partial Gold plate

fastening screw portions of the shell are 3: Min 0.1 µm partial Gold plate

embedded in insulating material.)

£ No. of contacts: 9, 15 or 25

¢ Ground lock pins

Blank : None

GD : Provided

∞ Form of contact: Straight DIP type, female

§ DIP length and overall height from the PCB surface

(Refer to the dimension (2) table as shown below.).

O D

H N A

M2.6≈0.45

6.1

™

1.6

(Applicable PCB thickness)

œ0.5

2.84

Because some combinations of “Configurations

of Product Part No.”, are under consideration for

development, please contact us for availability

details.

Ω

Dimensions (2)

Ω

Dimensions (1)

Part No.

GMF-NCX9GDFD2L1

GMF-NCX15GDFD2L1

GMF-NCX25GDFD2L1

30.8

39.1

53.0

24.99

33.32

47.04

12.6

7.82

16.26

24.59

38.30

Ω

Components

¡ Shell

™ Insulator

£ Ground lock pin

¢ Contacts

Blank

G (overall height

F (DIP length) from PCB surface)

3.5

8.7

11.6

10.4

Mating connectors:

GM series of male connectors

Others

Wire

wrapping Crimping Soldering

IDC

Press-in

SMT

DIP
