3-174820-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 3-174820-8

Preview

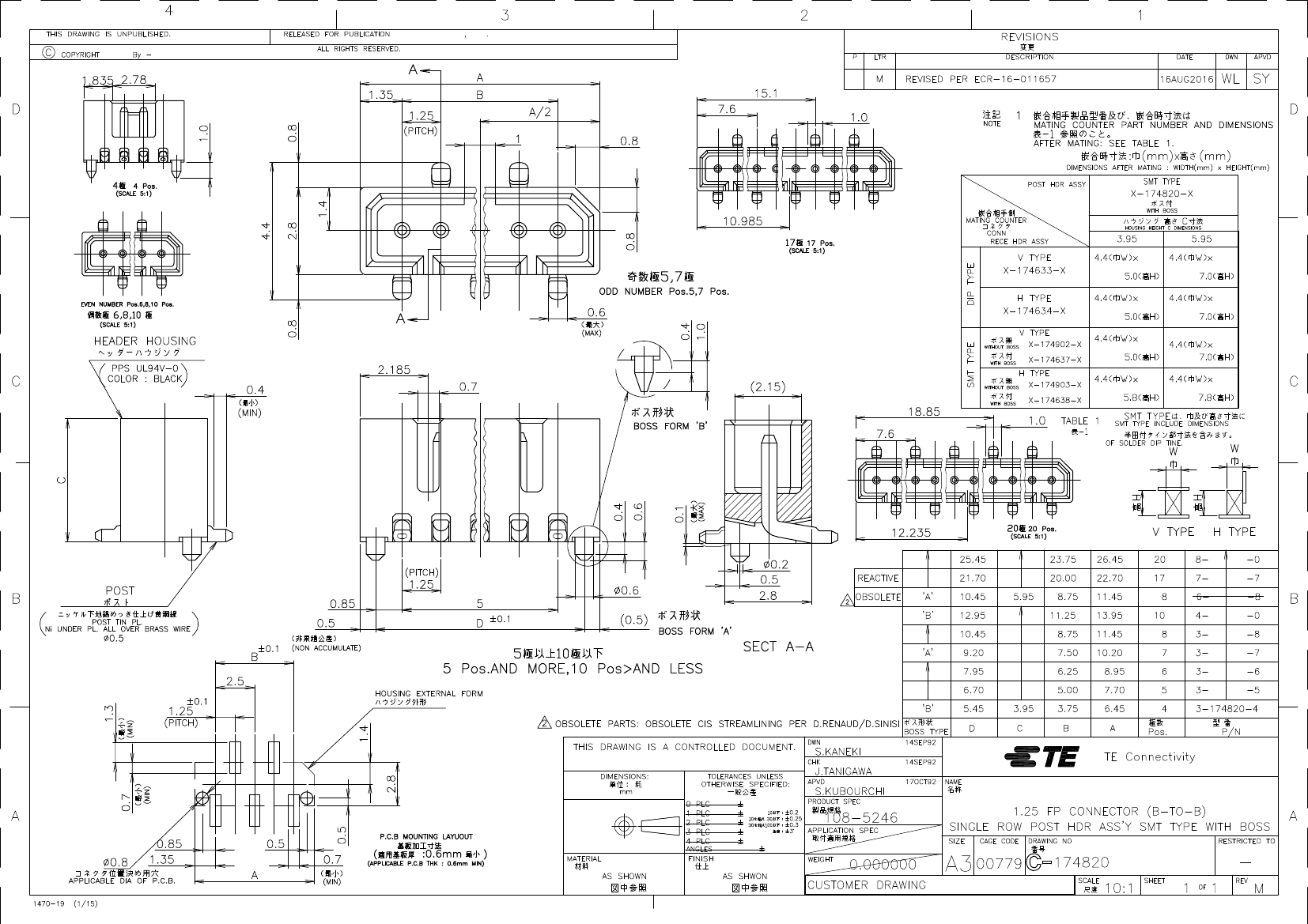

3-174820-8: Description8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT; CategoryThe connector The connector; File Size132KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-174820-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-174820-8	-	-	View	Buy Now

3-174820-8 Overview

8 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT

3-174820-8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	LOOSE PIECE
Board mount options	POLARIZATION POST
body width	0.11 inch
subject depth	0.156 inch
body length	0.451 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VDC V
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	NO
Plug contact pitch	0.049 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-30 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.794 mm
polarization key	HOUSING SIDE
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1
