UM1L-6W-K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> UM1L-6W-K

UM1L-6W-K: DescriptionRF RELAY, SPDT, LATCHED, 0.033A (COIL), 6VDC (COIL), 200mW (COIL), 0.1A (CONTACT), 30VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size423KB，8 Pages; ManufacturerFUJITSU; Websitehttp://edevice.fujitsu.com/fmd/en/index.html

Download Datasheet Parametric View All

UM1L-6W-K Overview

RF RELAY, SPDT, LATCHED, 0.033A (COIL), 6VDC (COIL), 200mW (COIL), 0.1A (CONTACT), 30VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

UM1L-6W-K Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	11.5 mm
body height	10 mm
Body length or diameter	20.1 mm
Characteristic impedance	75 Ω
Maximum coil current (DC)	0.033 A
Coil operating voltage (DC)	4.2 V
Coil power	200 mW
Coil release voltage (DC)	-4.2 V
Coil resistance	180 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@30VDC
Maximum contact voltage (DC)	30 V
Contact/Output Power Type	DC
Electrical life	300000 Cycle(s)
Maximum insertion loss	1 dB
Maximum isolation	60 dB
Manufacturer's serial number	UM1
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms
Maximum operating frequency	900 MHz
Minimum operating frequency
Maximum operating temperature	80 °C
Minimum operating temperature	-30 °C
physical size	20.1mm X 11.5mm X 10mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF RELAY
release time	6 ms
surface mount	NO
switching time	12 ms
Termination type	SOLDER
voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

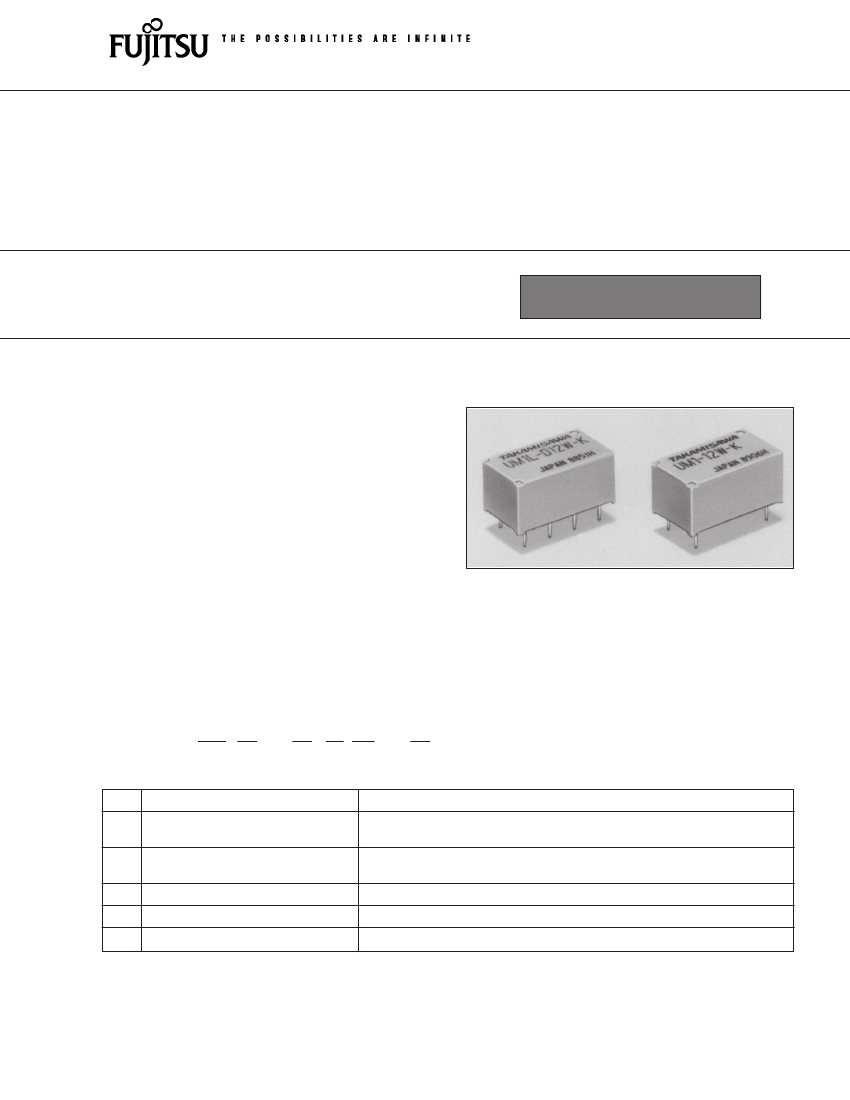

MINIATURE RELAY

1 POLE, 0.5A

(HIGH FREQUENCE SIGNAL SWITCHING)

UM1 SERIES

RoHS Compliant

Subminiature polarized relay

Excellent high frequency characteristics

at 900 MHz

—Isolation

: min. 60 dB

(Impedance of

—Insertion loss : max. 1 dB

the measuring

—V.S.W.R.

: max. 1.2

devices is 75Ω)

High reliability — Bifurcated contacts

— Movable contact: gold overlay

— Stationary contact: gold clad

Wide operating range

DIL pitch terminals

Plastic sealed type

Latching type available

RoHS compliant since date code: 0437T2

Please see page 7 for more information

FEATURES

}

UM1 L

(a) (b)

ORDERING INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

(f )

Series Name

Operation Function

Number of Coil

Nominal Voltage

Contact

Enclosure

–

(c)

12 W

(d) (e)

–

(f )

UM1 : UM1 Series

Nil : Standard type

L : Latching type

Nil : Single winding type

D : Double winding type

K : Plastic sealed type

IN 9

NT 00

O 2

SC CH

Refer to the COIL DATA CHART

W : Bifurcated type (cross bar)

)
