BR8210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR8210

BR8210: Description0 MHz - 600 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B; CategoryWireless rf/communication Radio frequency and microwave; File Size173KB，3 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

BR8210 Overview

0 MHz - 600 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B

BR8210 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL
Gain	9 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	600 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5
Base Number Matches	1

Preview

Download Datasheet

View All

Cross Reference Guide

BR8210 / SBR8210*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

0.0 - 600.0 MHz

10.0 dB Typical

9.0 dB Min

6.0 dB Typical

7.5 dB Max

-3.5 dBm Typical

-6.0 dBm Min

7.0 dBm Typical

8.0 dBm Typical

1.8/2.5 Input Typ/Max

1.8/2.5 Output Typ/Max

-15.0 dB Typical

-14.0 dB Min

1.8 Volts

10.0 mA

-55.0 - 125.0 °C

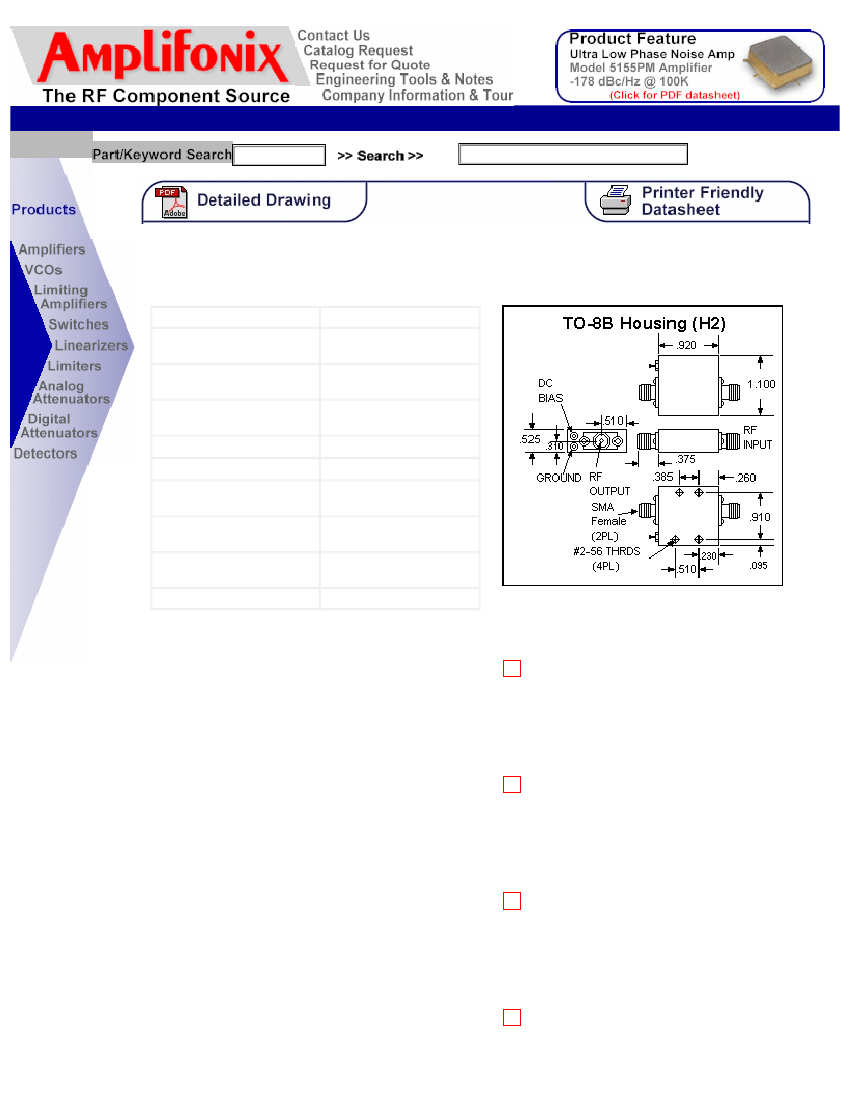

Package Drawing

Gain

Frequency (MHz)

Noise Figure

Frequency (MHz)

1dB

Compression Point

dBm

Frequency (MHz)

Reverse Isolation

BR8210 Related Products

	BR8210	SBR8210
Description	0 MHz - 600 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B	0 MHz - 600 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H2, TO-8B
Reach Compliance Code	unknown	unknown
Other features	SMA-F, I/P POWER-MAX (PEAK)=23DBM	SMA-F, I/P POWER-MAX (PEAK)=23DBM
structure	COAXIAL	COAXIAL
Gain	9 dB	9 dB
Maximum input power (CW)	6 dBm	6 dBm
Maximum operating frequency	600 MHz	600 MHz
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.5	2.5
Base Number Matches	1	1
