47801545P1 datasheet, PDF - EEWORLD Datasheet

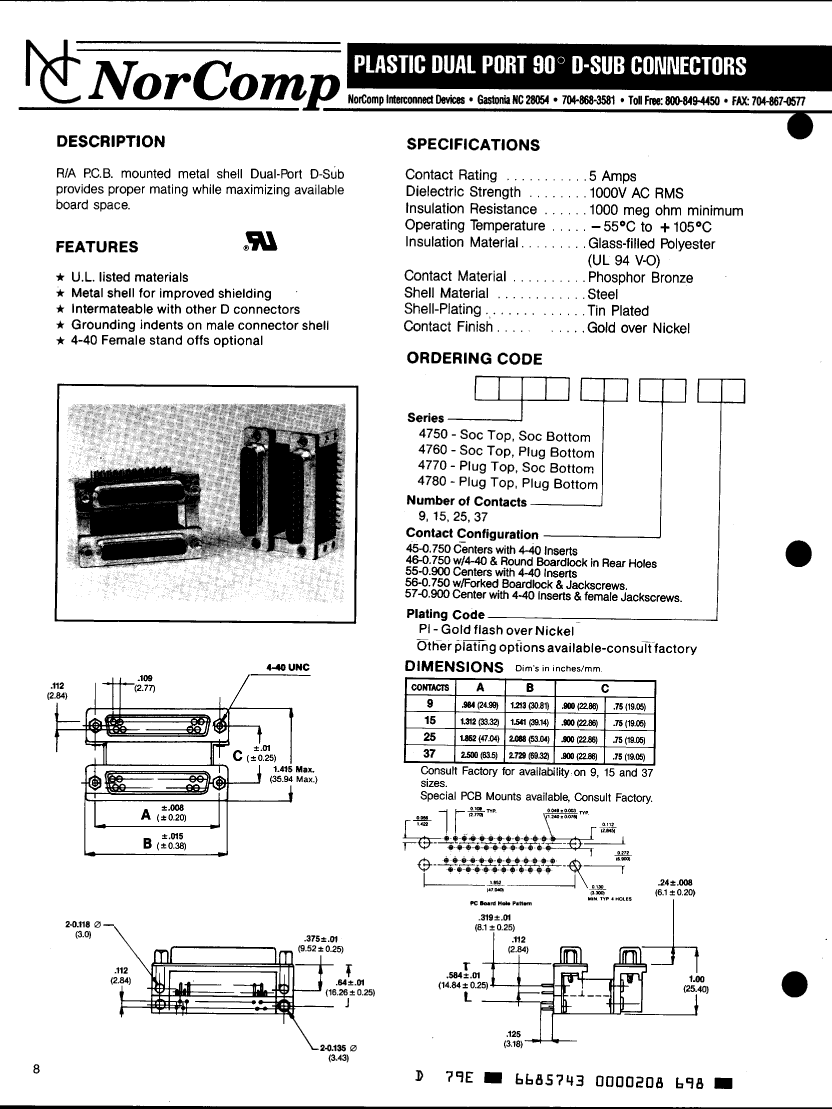

47801545P1: DescriptionD Type Connector, 15+15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Plug/receptacle; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

47801545P1 Overview

D Type Connector, 15+15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Plug/receptacle

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	CENTERS WITH 4-40 INSERTS
body width	1.415 inch
subject depth	0.76 inch
body length	1.541 inch
Body/casing type	PLUG/RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	4780
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	30
Base Number Matches	1
