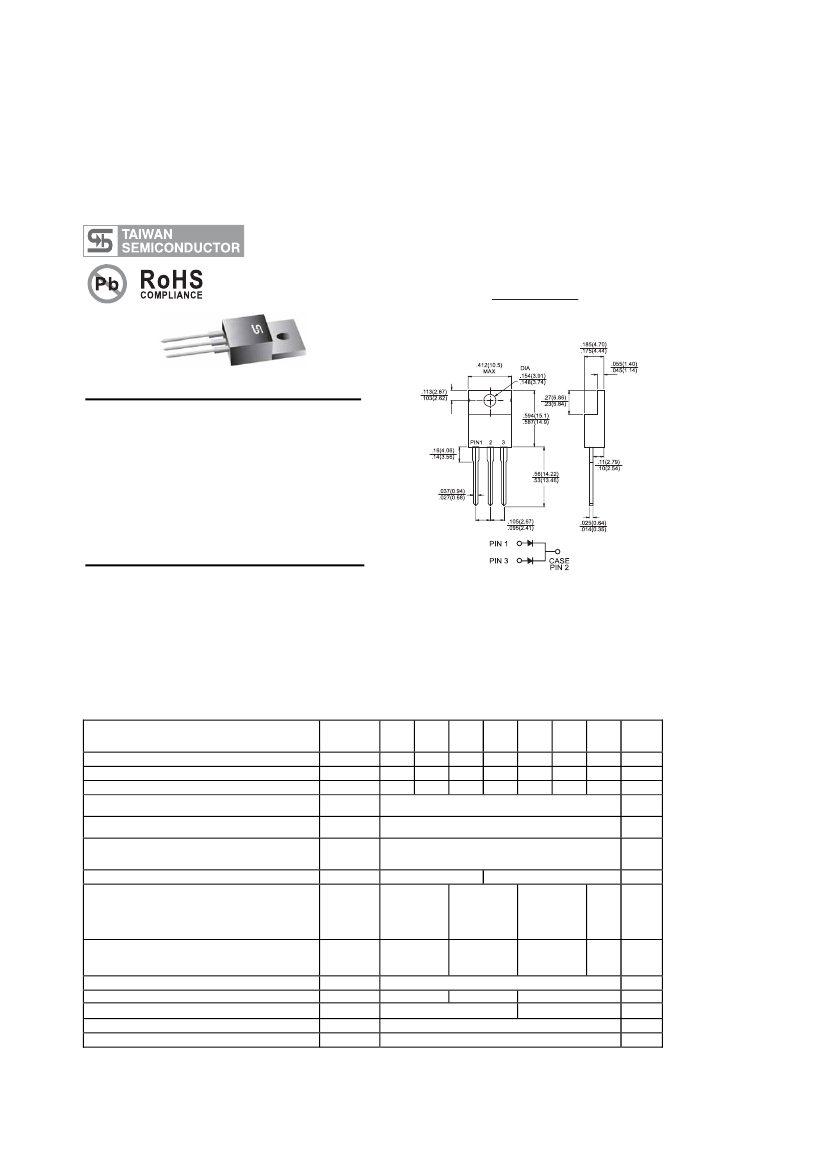

MBR3035CT - MBR30150CT
30.0 AMPS. Schottky Barrier Rectifiers
TO-220AB
Features
Plastic material used carries Underwriters Laboratory
Classifications 94V-0
Metal silicon junction, majority carrier conduction
Low power loss, high efficiency
High current capability, low forward voltage drop
High surge capability
For use in low voltage, high frequency inverters, free
wheeling, and polarity protection applications
Guardring for overvoltage protection
High temperature soldering guaranteed:
260
o
C/10 seconds,0.25”(6.35mm)from case
Mechanical Data
Cases: JEDEC TO-220AB molded plastic
Terminals: Pure tin plated, lead free. solderable per
MIL-STD-750, Method 2026
Polarity: As marked
Mounting position: Any
Mounting torque: 5 in. - lbs. max
Weight: 0.08 ounce, 2.24 grams
Dimensions in inches and (millimeters)
Rating at 25 C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
MBR MBR
Type Number
3035
CT
3045
CT
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current at
T
C
=130
o
C
Peak Repetitive Forward Current (Rated V
R
, Square
Wave, 20KHz) at Tc=130
o
C
Peak Forward Surge Current, 8.3 ms Single Half
Sine-wave Superimposed on Rated Load (JEDEC
method )
Peak Repetitive Reverse Surge Current (Note 1)
Maximum Instantaneous Forward Voltage at (Note 2)
I
F
=15A, Tc=25
o
C
I
F
=15A, Tc=125
o
C
I
F
=30A, Tc=25
o
C
I
F
=30A, Tc=125
o
C
Maximum Instantaneous Reverse Current
@ Tc=25
o
C at
R
ated
DC
Blocking Voltage Per Leg
@ Tc=125
o
C (Note 2)
Voltage Rate of Change, (Rated V
R
)
Typical Junction Capacitance
M
aximum
T
hermal
R
esistance
P
er
L
eg (
N
ote 3)
Maximum Ratings and Electrical Characteristics
o
MBR
3050
CT
MBR
3060
CT
MBR
3090
CT
MBR MBR
30100 30150
CT
CT
Units
V
V
V
A
A
A
V
RRM
V
RMS
V
DC
I
(AV)
I
FRM
I
FSM
I
RRM
V
F
35
24
35
45
31
45
50
35
50
60
42
60
30
30
200
90
63
90
100
70
100
150
105
150
1.0
0.7
0.6
0.82
0.73
0.77
0.67
－
－
0.5
0.84
0.70
0.94
0.82
0.95
0.92
1.02
0.98
A
V
I
R
dV/dt
Cj
0.2
15
600
1.0
0.2
10
1,000
460
-65 to +150
-65 to +175
0.2
7.5
320
1.5
0.1
5.0
mA
mA
V/uS
pF
o
R
θJC
T
J
T
STG
Operating Junction Temperature Range
Storage Temperature Range
C/W
o
C
o
C
Notes:
1. 2.0us Pulse Width, f=1.0 KHz
2. Pulse Test: 300us Pulse Width, 1% Duty Cycle
3. Thermal Resistance from Junction to Case Per Leg, with Heatsink size (4”x6”x0.25”) Al-Plate
Version: A06

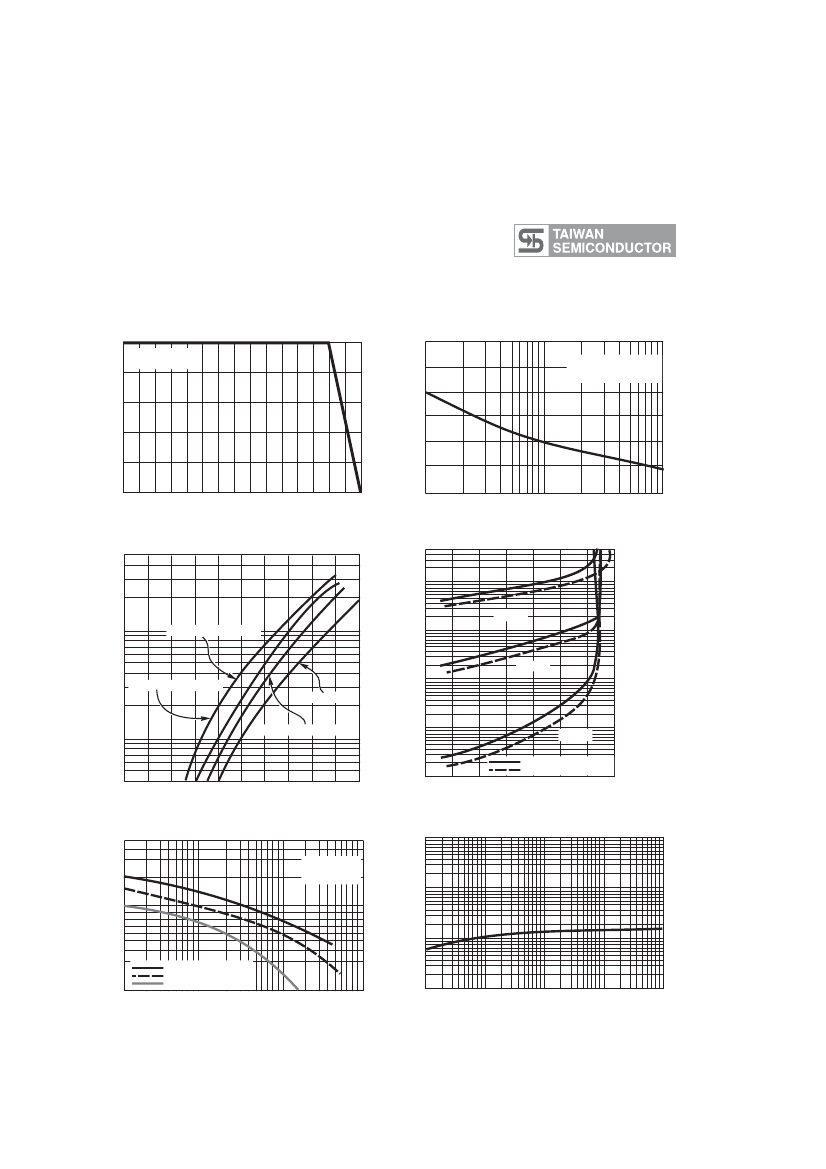

RATINGS AND CHARACTERISTIC CURVES (MBR3035CT THRU MBR30150CT)
FIG.1- FORWARD CURRENT DERATING CURVE
30
300
RESISTIVE OR
INDUCTIVE LOAD
24
FIG.2- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT PER LEG
Tj=Tj max.
8.3ms Single Half Sine Wave
JEDEC Method
PEAK FORWARD SURGE CURRENT. (A)
AVERAGE FORWARD CURRENT. (A)
250
200
150
100
50
0
1
18
12
6
0
0
50
100
o
CASE TEMPERATURE. ( C)
150
10
NUMBER OF CYCLES AT 60Hz
100
FIG.3- TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS PER LEG
50
FIG.4- TYPICAL REVERSE CHARACTERISTICS
PER LEG
50
10
IF-INSTANTANEOUS FORWARD CURRENT. (A)
20
INSTANTANEOUS REVERSE CURRENT. (mA)
Tj=125
0
C
1
10
MBR3035CT & MBR3045CT
5.0
MBR3050CT & MBR3060CT
MBR30150CT
Tj=75
0
C
0.1
3.0
MBR3090CT & MBR30100CT
1.0
0.01
Tj=25
0
C
0.001
0.5
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
FORWARD VOLTAGE. (V)
MBR3035CT-MBR3045CT
MBR3050CT & MBR30100CT
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE. (%)
FIG.5- TYPICAL JUNCTION CAPACITANCE PER LEG
TRANSIENT THERMAL IMPEDANCE. (
O
C/W)
1000
800
100
FIG.6- TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
JUNCTION CAPACITANCE.(pF)
600
Tj=25
0
C
f=1.0MHz
Vsig=50mVp-p
10.0
400
200
100
50
1
MBR3035CT & MBR3045CT
MBR3050CT & MBR3060CT
MBR3090CT-MBR30150CT
1
10
REVERSE VOLTAGE. (V)
100
0
0.1
0.1
0.01
0.1
1
T, PULSE DURATION. (sec)
10
100
Version: A06
