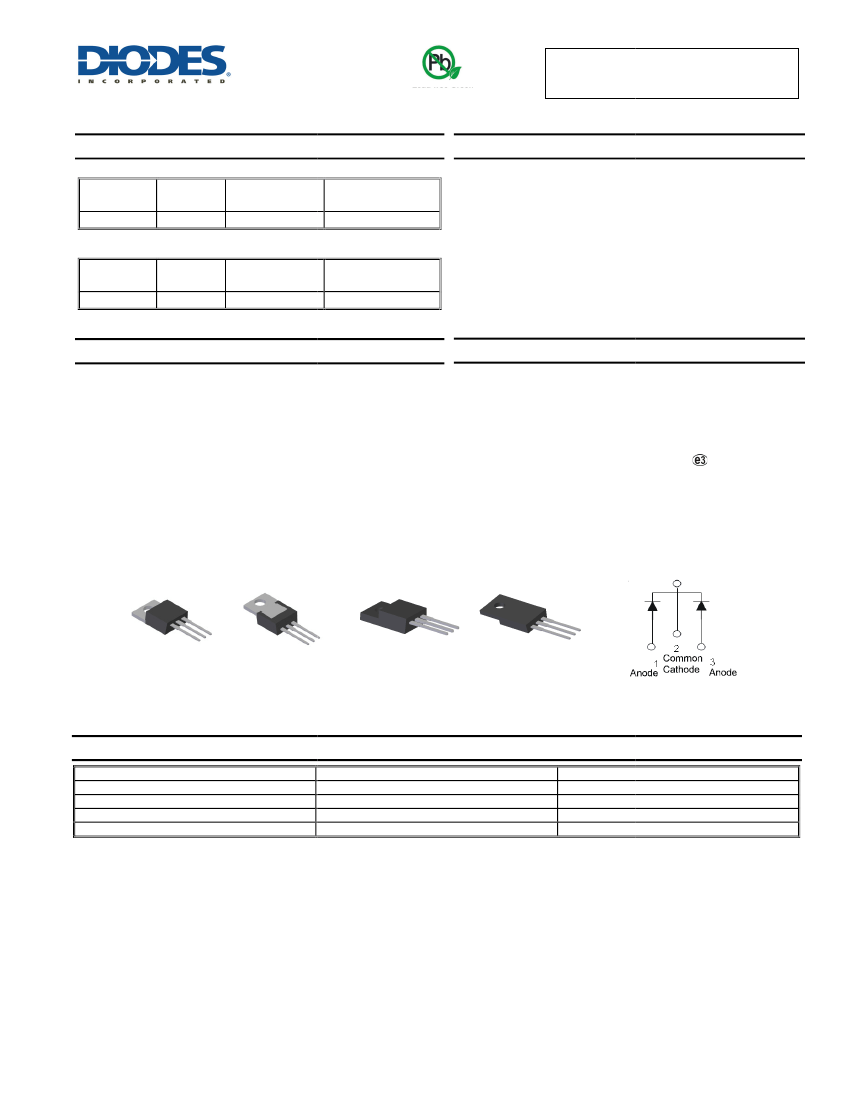

Guard Ring Die Construction for Transient Protection.
High Surge Current Capability.
Low Forward Voltage Drop.
Free
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Q101

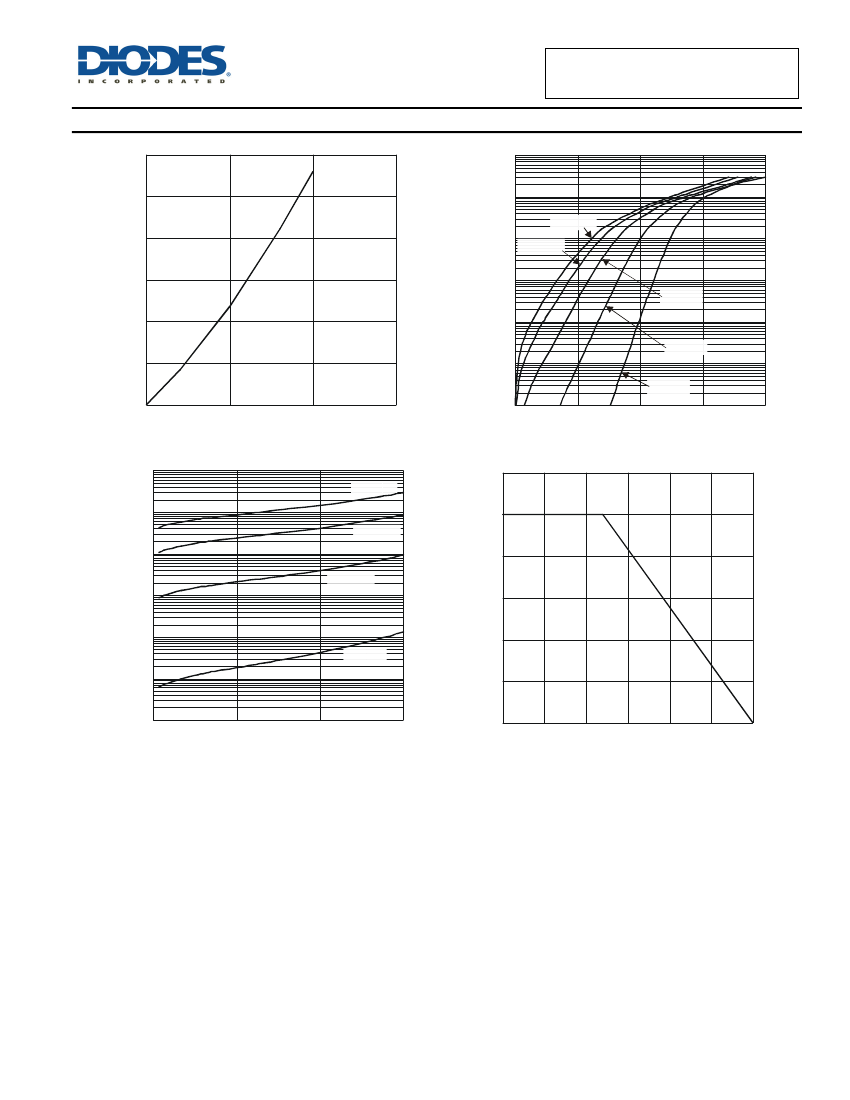

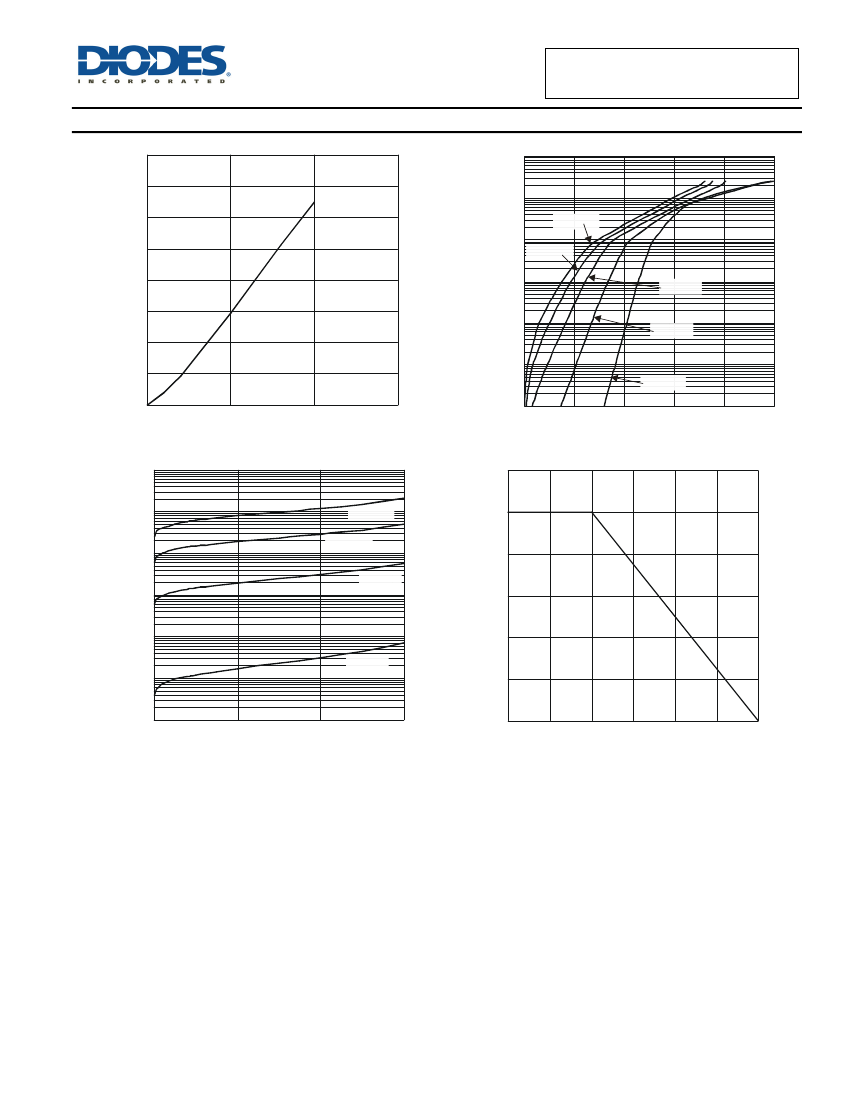

MBR2060CT / MBRF2060CT (Per Leg)
V
RRM
(V)
60
I
O
(A)
10
V
F (MAX)
(V)
@ +25°
C
0.81
I
R (MAX)
(mA)
@ +25°
C
0.1
Description and Applications
This Schottky Barrier Rectifier is designed to meet the general
requirements of commercial applications. It is ideally suited for use as:
•
Polarity Protection Diode
•
Re-Circulating Diode
•
Switching Diode
Mechanical Data
•
•
•
•
•
•

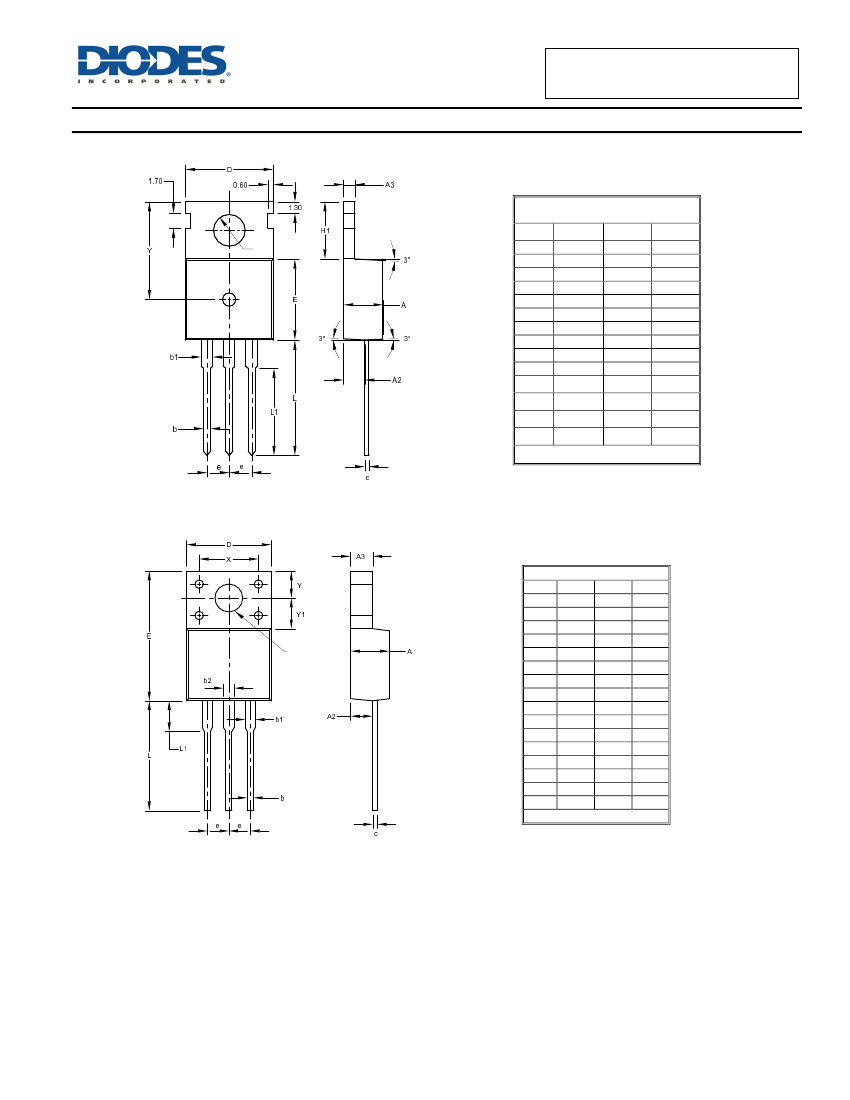

Case: TO-220AB, ITO-220AB
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
94V
Moisture Sensitivity: Level 1 per J-STD-020
J
Terminals: Finish - Matte Tin Annealed over Copper Leadframe.
nnealed
Solderable per MIL-STD-202, Method 208
202,
Polarity: See Below
Weight: TO-220AB – 1.95 grams (Approximate)
(
ITO-220AB – 1.69 grams (Approximate)
(
TO-220AB
Top View
TO-220AB
Bottom View
ITO-220AB
Top View
ITO-220AB
Bottom View
Package Pin Out
Configuration
Ordering Information
(Note 4)
Part Number
MBR2045CT-LJ
MBRF2045CT-LJ
MBR2060CT-LJ
MBRF2060CT-LJ
Notes:
Case
TO-220AB (Type C)
ITO-220AB (TO220F-3)
TO-220AB (Type C)
ITO-220AB (TO220F-3)
Packaging
50 pieces/tube
50 pieces/tube
50 pieces/tube
50 pieces/tube
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
Hal
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
free
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
