REVISION BH
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. MINIMUM PUSH OUT FORCE: .5 LB.
3. MAXIMUM BURR ALLOWED: .002[.05].
4. MAXIMUM CUT FLASH ALLOWED IN NON- CRITICAL AREA: .010[.25],
NO CUT FLASH ALLOWED IN CRITICAL AREAS AS SHOWN.
5. MAXIMUM HEIGHT VARIATION .005[.13] BETWEEN ROWS.
6. APPLIES TO FIRST AND LAST PIN OF EACH ROW.
PATENT NUMBERS
5713755 / 5961339
FTSH-1XX-XX-XXX-DH-XX
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-01: .120 [3.05]
-02: .075 [1.91]
-04: .150 [3.81]
OPTIONS
-TR: TAPE AND REEL
-A: ALIGNMENT PIN
(SEE FIG 2, SHEET 2 & FIG 3, SHEET 3)
(MOLDED TO POSITION
OR STAKED)
(SAMTEC DISCRETION WHICH
-A PIN IS USED)
(STAKED 8 POSITION MIN. SEE FIG 3,
SHEET 3, USE FTSH-XX-DH)
(MOLDED 5 POSITION MIN. SEE FIG 2,
SHEET 2, USE FTSH-XX-DH-AXX)
-C: POLYIMIDE FILM
(SEE FIG 4, SHEET 3)
PLATING SPECIFICATION
-L: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-F: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-H: 30µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
-LM: 10µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-FM: 3µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-LTL: 10µ" SELECTIVE GOLD IN CONTACT AREA,
TIN/LEAD (90/10+/-5%) TAIL
-G: 10µ" GOLD IN CONTACT AREA,
3µ" GOLD ON TAIL
TAIL OPTION
-DH: DOUBLE HORIZONTAL
(USE **FTSHC-1XX-XX-XXX-DH UNLESS -A
OPTION IS SPECIFIED, THEN USE FTSH-XX-DH-XX
AND BUILD PER PRINT)
** = SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR
DETAILS
C
.006[0.15]
(TAILS ONLY)
.005[0.13]
.010[0.25]
.000±.002 0.01±0.05
(SEE NOTE 6)
(No OF POS x .0500[1.270])
DETAIL 'B'
SCALE 20 : 1
C
.099 2.51 REF
No OF POS x .0500[1.270] - .0500[1.270]
SEE NOTE 4
02
04
2 MAX SWAY
(EITHER DIRECTION)
C
"A"
T-1S15-03-XX
SEE NOTE 3
C
'B'
.0500 1.27
01
03
.135 3.43 REF
.006 [0.15]
FTSHC-50-D
.016 0.41 SQ REF (TYP)
2 MAX SWAY
(EITHER DIRECTION)
CRITICAL AREA
(SEE NOTE 4)
.21 5.3
.032 0.82
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
FTSHC-1XX-XX-XXX-DH SHOWN
(SEE FTSHC-1XX-XX-XXX-DX-XX PRINT FOR DETAILS

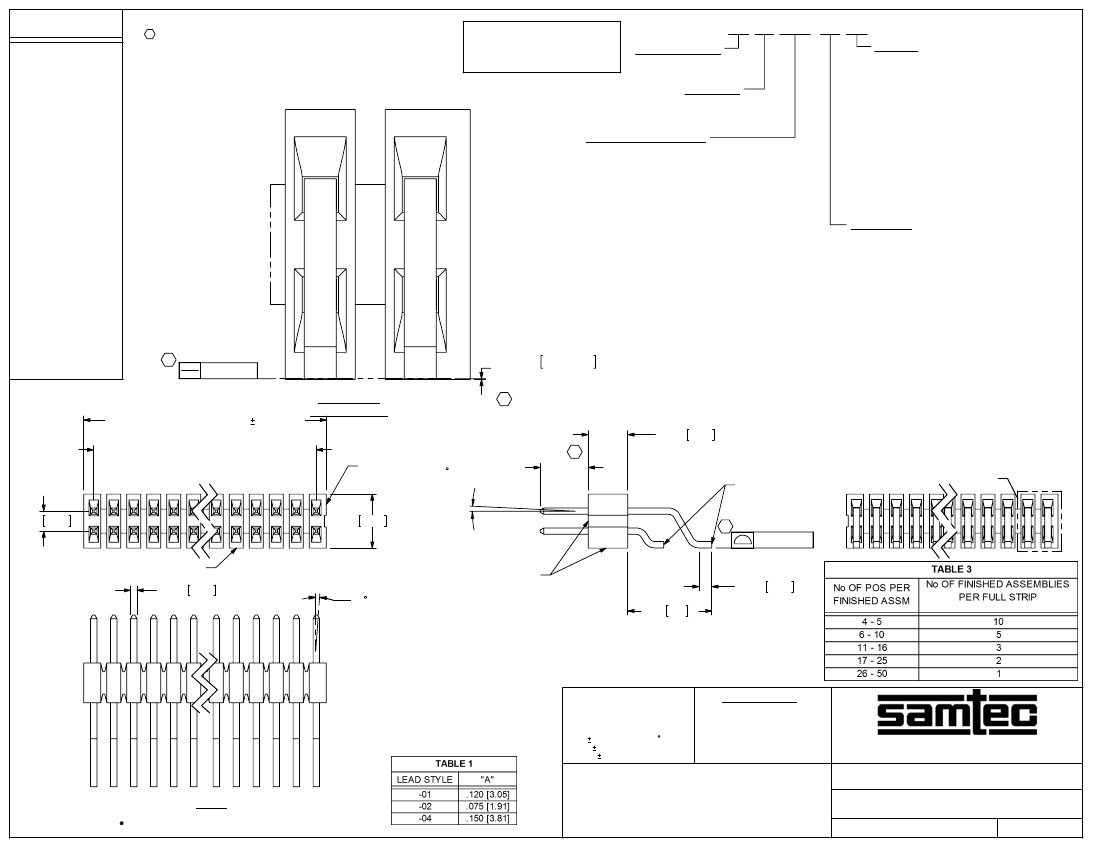

FIG 1
INSULATOR:
LCP, UL 94-V0 COLOR: BLACK
TERMINAL:
PHOSPHOR BRONZE, ALLOY No. 510, GRADE A, FED. SPEC.
QQ-B-750, SPRING TEMPER
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
BY:
BRATCHER 01/04/1995
FTSH-1XX-XX-XXX-DH-XX
SHEET
1
OF
3
REVISION BH
"A"
(SEE TABLE 1)
.099 2.51 REF
.102 2.59
IN-PROCESS 1
.099 2.51 REF
"A"
(SEE TABLE 1)
'C'
C
.000
+.003
0.01
+0.08
- .001
- 0.03
C
.022 0.56 REF
.09 2.3
.006 [0.15]
(TAILS ONLY)
IN-PROCESS 2
"A"
(SEE TABLE 1)
FTSH-XX-DH-XX
.099 2.51 REF
IN-PROCESS 3
(No OF POS - 2) x .050 [1.27] REF
.040 1.02 REF
-A: ALIGNMENT PIN (MOLDED) OPTION
DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 1
.035 0.89 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.245 6.22

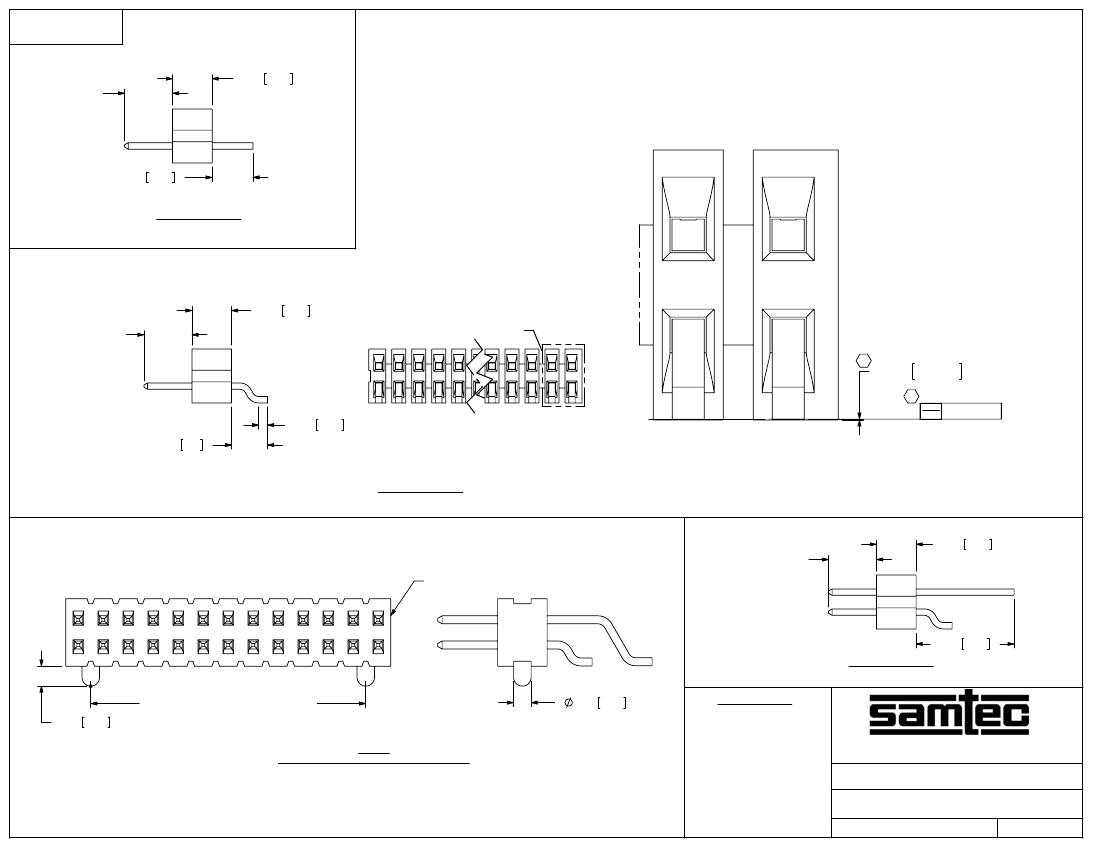

FIG 2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
DWG. NO.
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
BY:
BRATCHER 01/04/1995
FTSH-1XX-XX-XXX-DH-XX
SHEET
2
OF
3
REVISION BH
C
.040 1.02
C
(No OF POS - 2) x .050 [1.27] REF
SM-A9H
.035 0.89
REF
-A: ALIGNMENT PIN (STAKED) OPTION
DIFFERENT AS SHOWN, OTHERWISE
SAME AS FIG 2

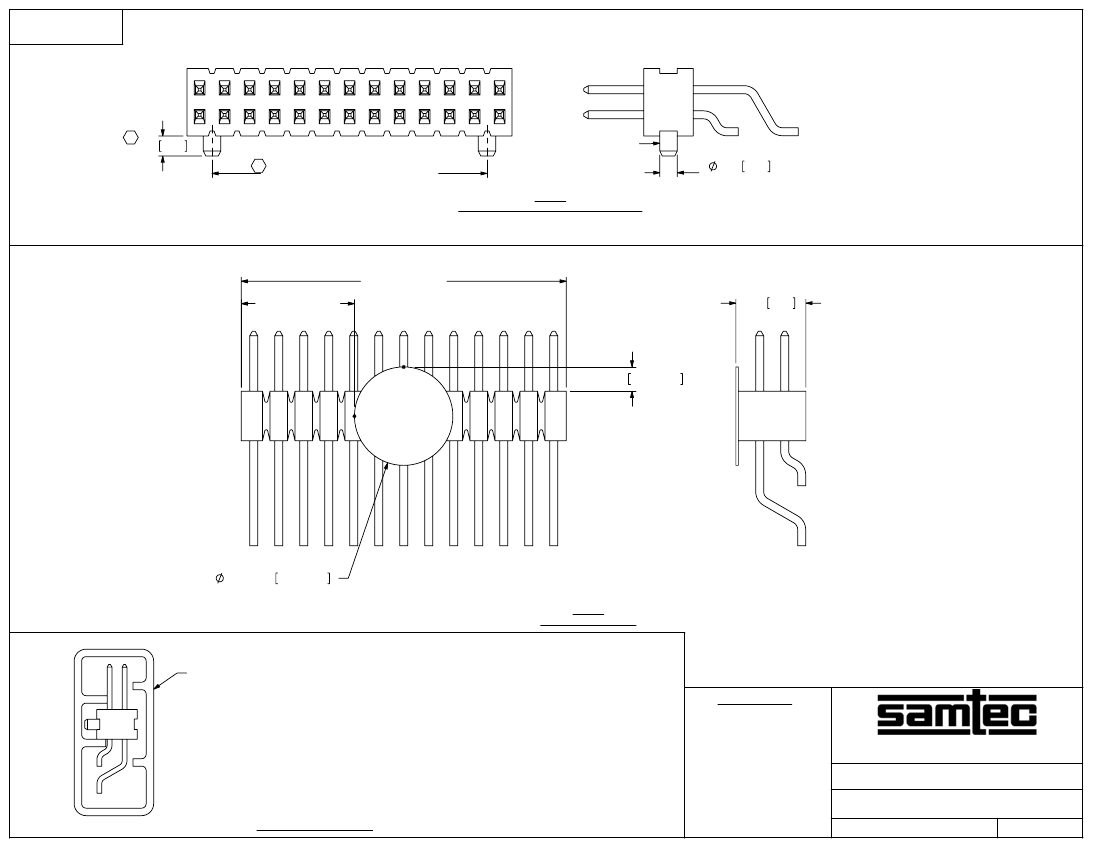

FIG 3
"R" (SEE NOTE)
"S" (SEE NOTE)
.140 3.56
.049±.010 1.24±0.25
.197±.010 5.00±0.25
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = (("R" - .1969 [5.001]) / 2) ±.020 [.51]
-C: POLYIMIDE FILM
FIG 4
PT-FTSH001-DH
PACKAGING NOTES:
1. PACKAGE POSITIONS 10 THROUGH 50 IN TUBES.
2. POSITIONS 02 THROUGH 09 ARE TO BE
LAYER PACKAGED. EXCEPT FOR -C OPTION,
TUBE POSITIONS 05 THROUGH 50.
3. ALL PART POSITIONS 05 THROUGH 50 USE
PT-FTSH001-DH.
4. USE TP-24 PLUG.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.050 x .050 C.L. DOUBLE HORIZONTAL TERMINAL STRIP
PACKAGING VIEW
FTSH-1XX-XX-XXX-DH-XX
SHEET
3
OF
3
F:\DWG\MISC\MKTG\FTSH-1XX-XX-XXX-DH-XX-MKT.SLDDRW
BY:
BRATCHER 01/04/1995
