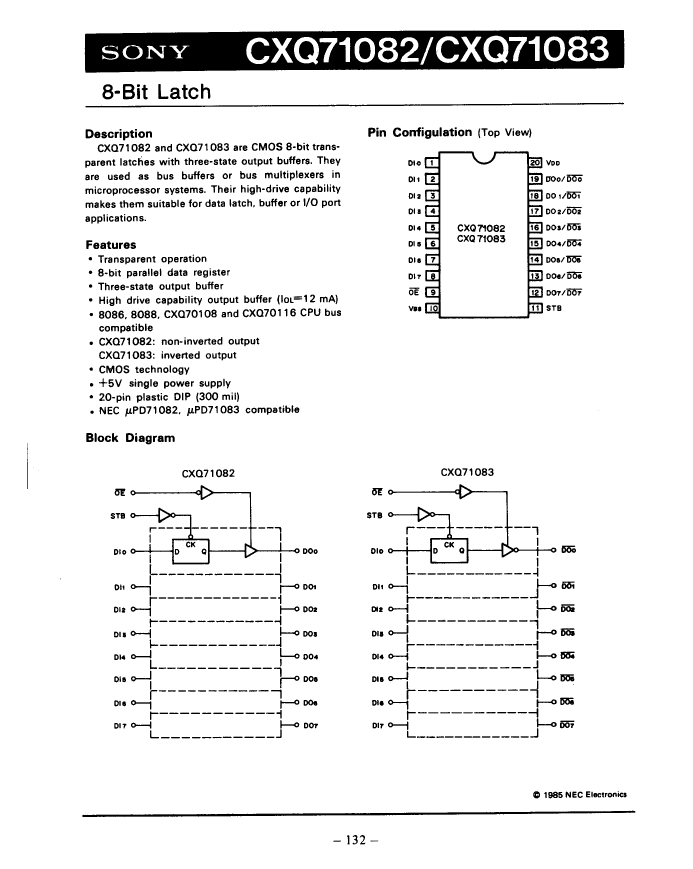

CXQ71082P datasheet, PDF - EEWORLD Datasheet

CXQ71082P: DescriptionD Latch, 1-Func, 8-Bit, CMOS, PDIP20,; Categorylogic logic; File Size203KB，5 Pages; ManufacturerSONY; Websitehttp://www.sony.co.jp

Download Datasheet Parametric Compare View All

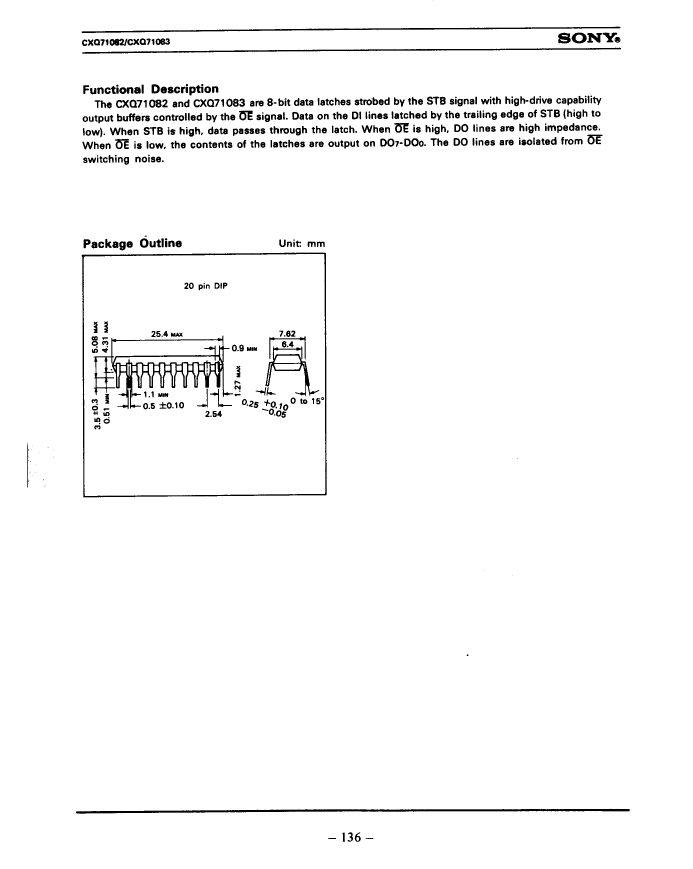

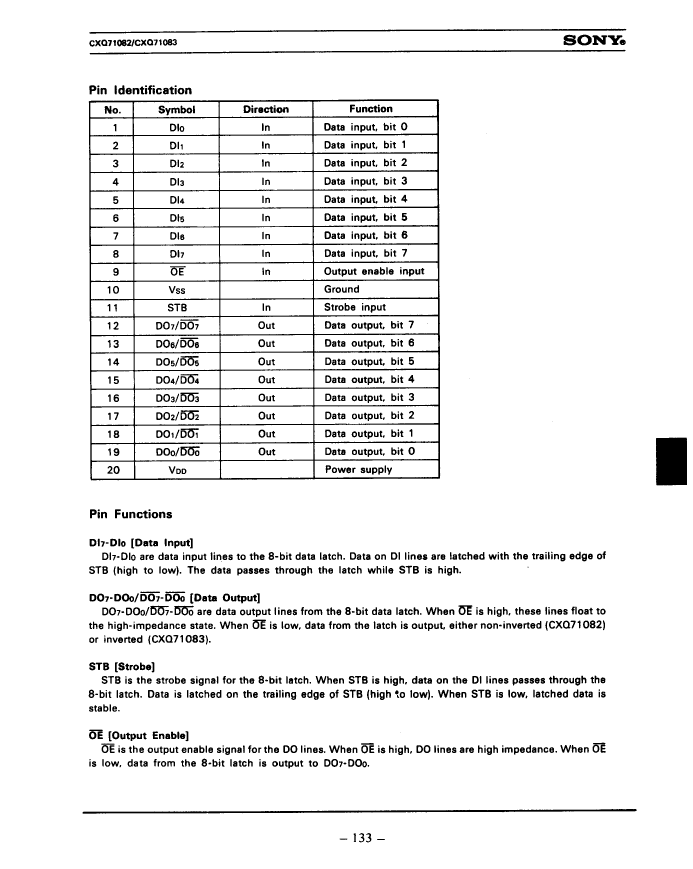

CXQ71082P Overview

D Latch, 1-Func, 8-Bit, CMOS, PDIP20,

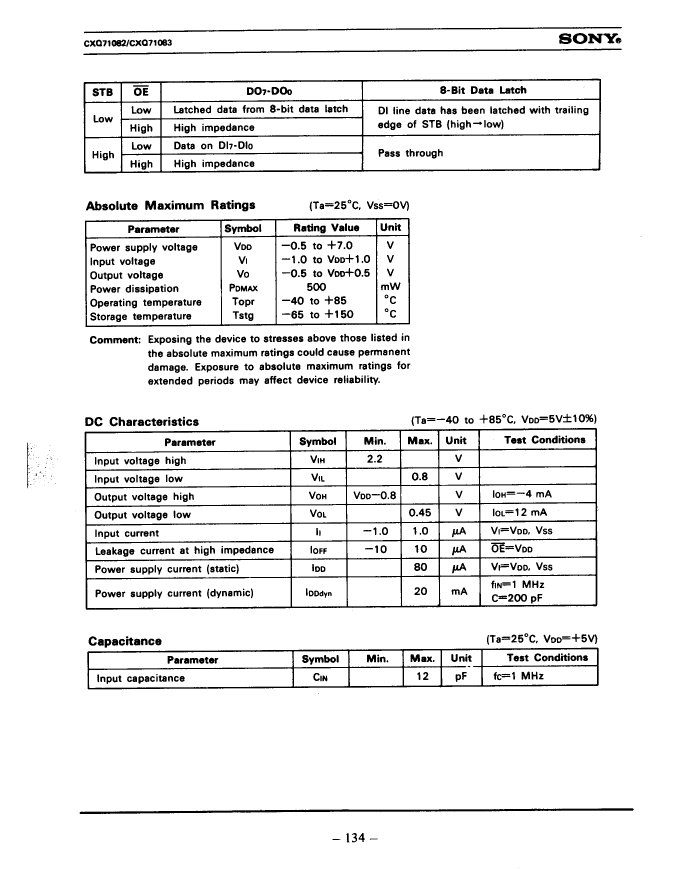

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T20
JESD-609 code	e0
Load capacitance (CL)	200 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.012 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	20 mA

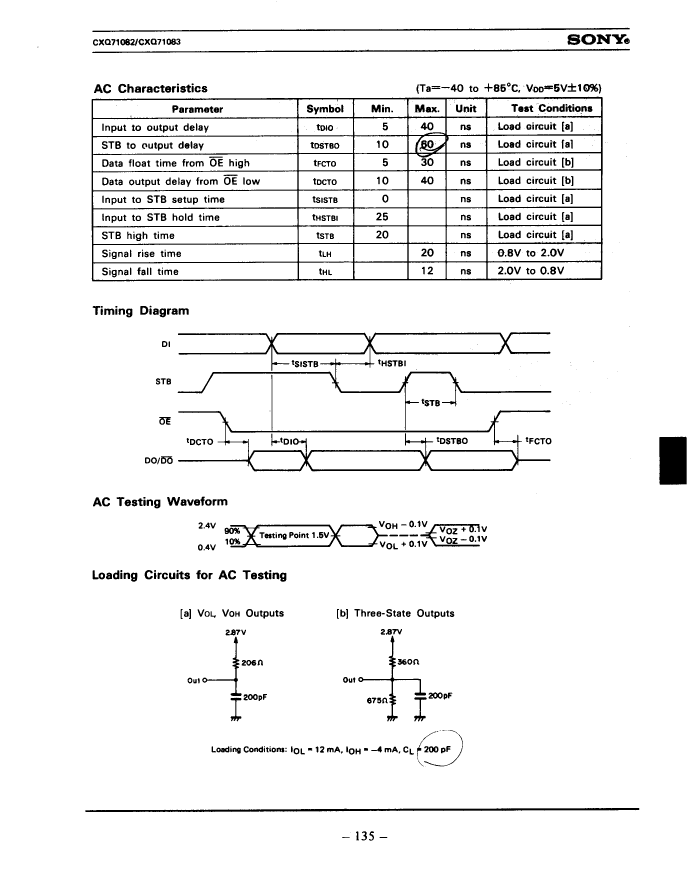

Prop。Delay @ Nom-Sup	60 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	CXQ71082P	CXQ71083P
Description	D Latch, 1-Func, 8-Bit, CMOS, PDIP20,	D Latch, 1-Func, 8-Bit, CMOS, PDIP20,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP20,.3	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T20	R-PDIP-T20
JESD-609 code	e0	e0
Load capacitance (CL)	200 pF	200 pF
Logic integrated circuit type	D LATCH	D LATCH
MaximumI(ol)	0.012 A	0.012 A
Number of digits	8	8
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP20,.3	DIP20,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Maximum supply current (ICC)	20 mA	20 mA
Prop。Delay @ Nom-Sup	60 ns	60 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
