MBR0530 — Schottky Rectifier
October 2014
MBR0530
Schottky Rectifier

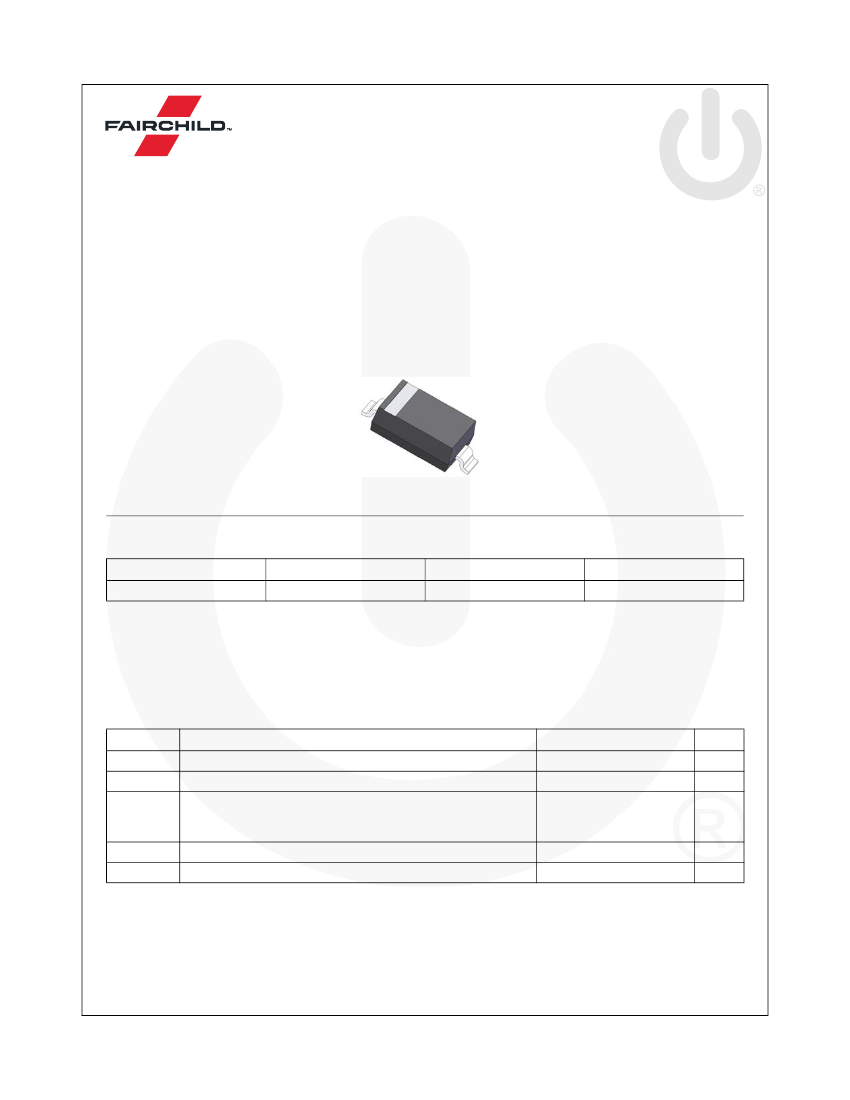

Features
• 0.5 A, Low Forward Voltage less than 430 mV
• Compact Surface Mount Package with The Same Footprint as Mini-melf
SOD-123
* Band marking denotes cathode
Ordering Information
Part Number
MBR0530
Top Mark
B3
Package
SOD-123 2L
Packing Method
Tape and Reel
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
V
RRM
I
F(AV)
I
FSM
T
STG
T
Jmax
Parameter
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current
Non Repetitive Peak Forward Current
(Surge Applied at Rated Load Conditions Half-Wave, Single-
Phase, 60 Hz)
Storage Temperature Range
Operating Junction Temperature
Value
30
500
5.5
-65 to +150
-65 to +125
Unit
V
mA
A
°C
°C
© 2001 Fairchild Semiconductor Corporation
MBR0530 Rev. 1.1.0
www.fairchildsemi.com
MBR0530 — Schottky Rectifier
Thermal Characteristics
Values are at T
A
= 25°C unless otherwise noted.
Symbol
R
θJA
R
θJL
Parameter
Thermal Resistance, Junction-to-Ambient
(1)
Thermal Resistance, Junction-to-Lead
Value
206
173
Unit
°C/W
°C/W
Note:
1. 1 inch square pad size on FR-4 board.
Electrical Characteristics
Values are at T
A
= 25°C unless otherwise noted.
Symbol
Parameter
Conditions
I
F
= 100 mA
I
F
= 100 mA, T
A
= 100°C
I
F
= 500 mA
I
F
= 500 mA, T
A
= 100°C
V
R
= 15 V
Min.
Max.
375
340
430
420
20
130
5
Unit
V
F
Forward Voltage
mV
μA
μA
mA
I
R
Reverse Current
V
R
= 30 V
V
R
= 30 V, T
A
= 100°C
© 2001 Fairchild Semiconductor Corporation
MBR0530 Rev. 1.1.0
www.fairchildsemi.com
2
