BNC-1-PF

Description
RF BNC Connector, Female, Board Mount, Press Fit Terminal, Receptacle,
CategoryThe connector    The connector
File Size84KB,2 Pages
ManufacturerCinch Connectivity Solutions
Download Datasheet Parametric View All

BNC-1-PF Overview

RF BNC Connector, Female, Board Mount, Press Fit Terminal, Receptacle,

BNC-1-PF Parametric

Parameter NameAttribute value
Reach Compliance Codecompliant
Other featuresINSERTIONAL LOSS MAX AT 2GHZ
Body/casing typeRECEPTACLE
Characteristic impedance75 Ω
Connector typeRF BNC CONNECTOR
Contact to complete cooperationGOLD (30) OVER NICKEL
Contact completed and terminatedGOLD (30) OVER NICKEL
Contact point genderFEMALE
Coupling typeBAYONET
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.2 dB
insulator materialPOLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberBNC-1-PF
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typePRESS FIT
voltage standing wave ratio1.024
Base Number Matches1

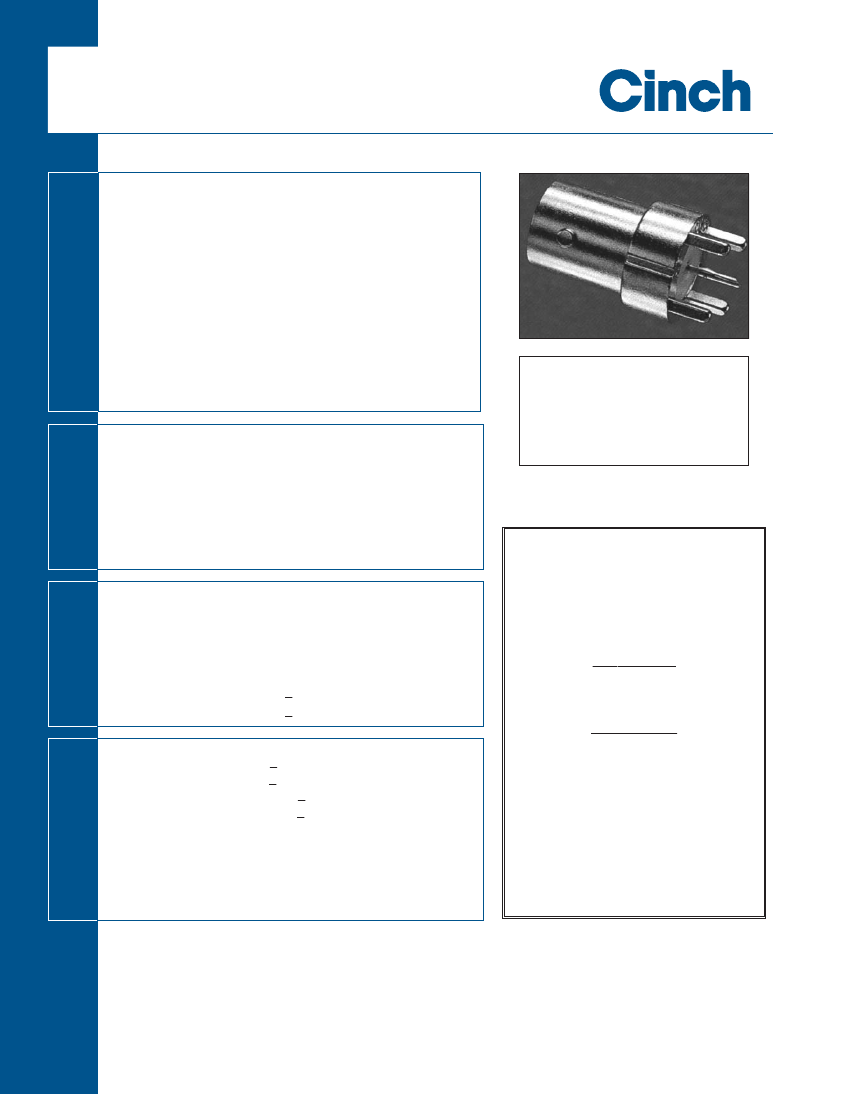

Press-Fit BNC Coaxial Connector Board Mount
Receptacle for 75
Applications
Solderless, Press-Fit Installation.
F
EATURES
Strong, One-Piece Cast Body.
Standard BNC Interface.
75Ω Impedance.
Meets Lucent Technologies (AT&T) Requirements.
Body:
One-piece diecast zinc per QQ-Z-363
Plating:
Nickel, 150µin. min. per QQ-N-290 over copper, 200µin.
min. per MIL-C-14550
Center Contact:
Beryllium copper
Plating:
Gold, 30µin. minimum over nickel, 50µin. minimum
Insulator:
Teflon TFE per ASTM D1710
Compliant version,
Pt. No. 299 99 00 134
is also available.
For more information please
contact us at 1-800-323-9612
M
ATERIALS
Unique patented press-fit connector design
allows for multiple insertions into a backplane
without loss of mechanical retention or electrical
Impedance:
75Ω
0 to 4 GHz
> -55 dB
.2dB maximum @ 2 GHz
1.024
< 500 VAC RMS @ sea level
> 5000 MOhms @ 500 VDC
performance.

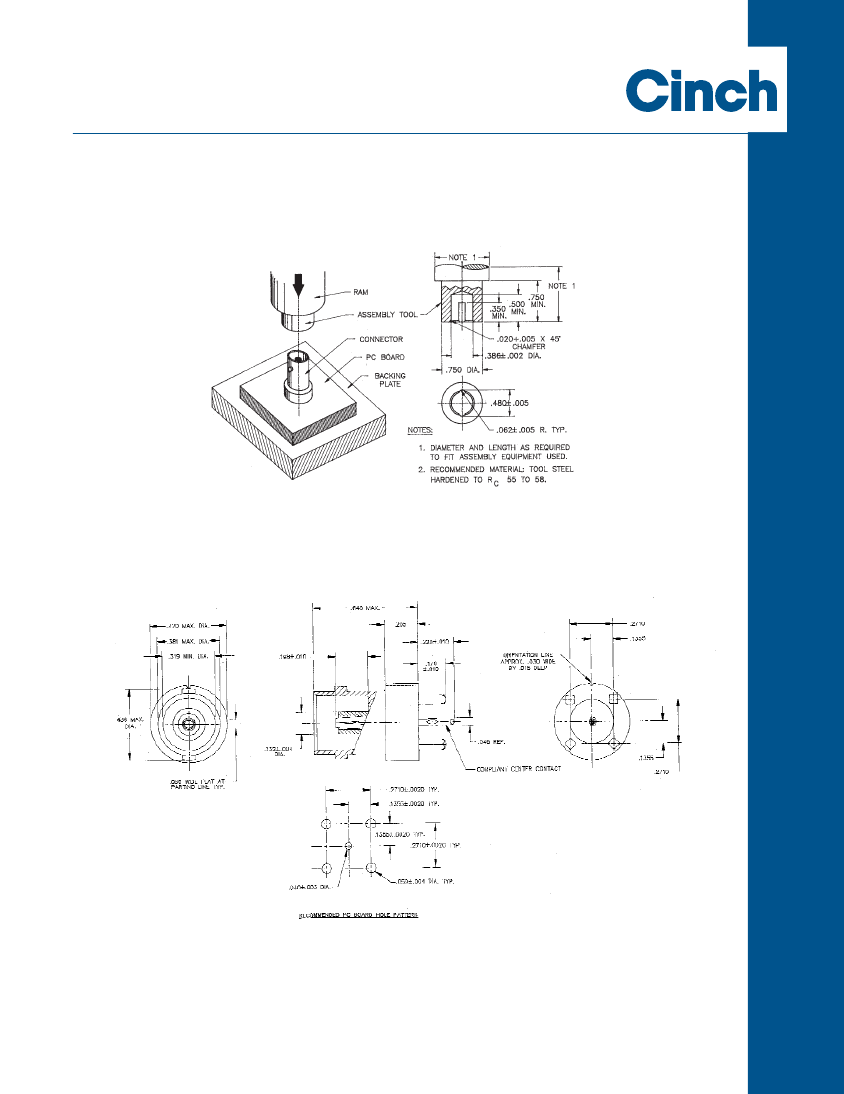

The design requirements for nominal PC board
mounting holes and thickness are as follows:
Insertion Forces:
.093 Board Thickness: 200 lb. max.
.250 Board Thickness: 500 lb. max.
Withdraw Forces:
E
LECTRICAL
Frequency Range:
RF Leakage:
Insertion Loss:
VSWR:
Working Voltage:
Insulation Resistance:
M
ECHANICAL
Connector Insertion Force:
<500 lb.*
Connector Removal Force:
>100 lb.*
Center Contact Insertion Force:
< 2.0 lb.*
Center Contact Removal Force:
> 2.0 oz.*
*
Requirements are for two connector insertions into the same PC board
mounting holes. PC board thickness can range from .093" to .300" thick.
PC board hole requirements are as follows:
Ground Legs: .059" Nom.
Center Contact: .040" Nom.
.093 Board Thickness: 100 lb. max.
.250 Board Thickness: 200 lb. max.
The Cinch Press-Fit BNC surpasses these
requirements with a unique, non-symmetrical
ground leg design. This design allows the
connector to be inserted, removed, rotated 180
o
,
and reinserted into the same location on the
board without loss of mechanical or electrical
performance.
Call Toll Free: 1 (800) 323-9612
2-76
