IR2C19 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IR2C19

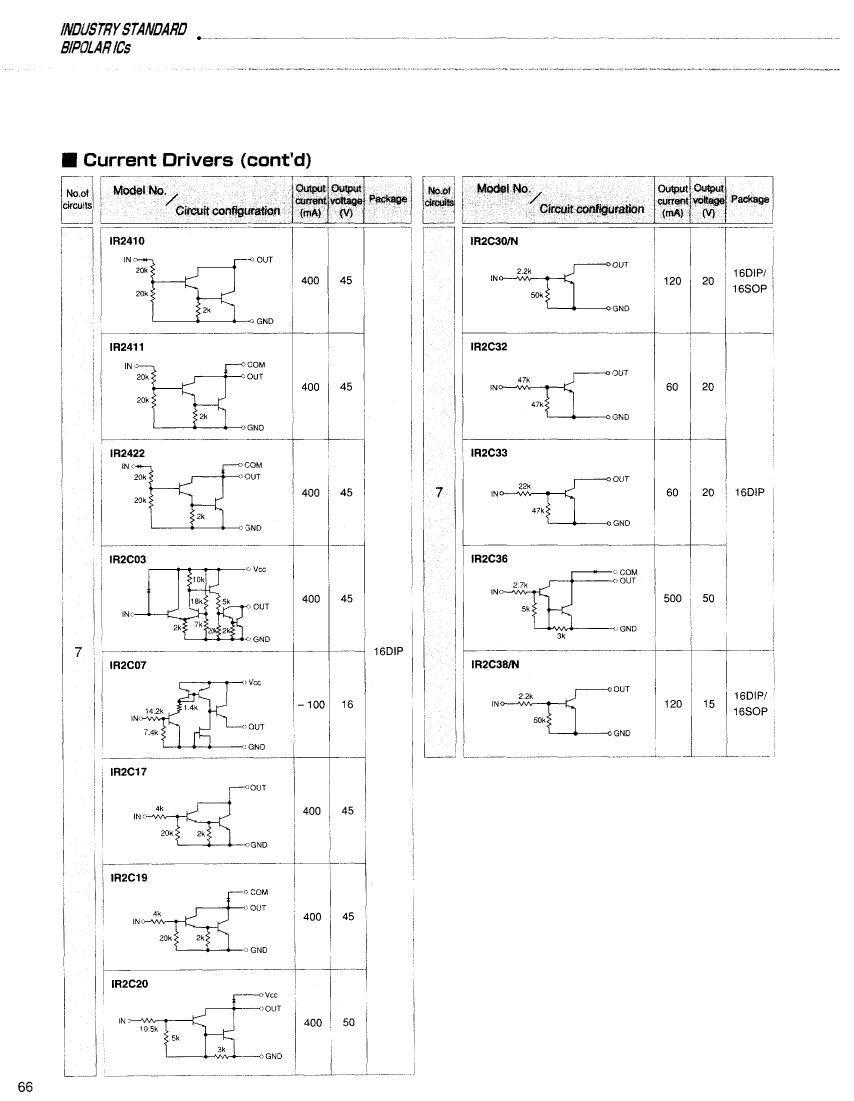

IR2C19: DescriptionSmall Signal Bipolar Transistor, 0.4A I(C), 7-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size59KB，1 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric Compare View All

IR2C19 Overview

Small Signal Bipolar Transistor, 0.4A I(C), 7-Element, NPN, Silicon,

IR2C19 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	BUILT-IN BIAS RESISTOR
Maximum collector current (IC)	0.4 A
Configuration	COMPLEX
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of components	7
Number of terminals	16
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

IR2C19 Related Products

	IR2C19	IR2C17	IR2C20	IR2C32	IR2C30N	IR2C30	IR2410	IR2C03	IR2C33
Description	Small Signal Bipolar Transistor, 0.4A I(C), 7-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.4A I(C), 7-Element, NPN, Silicon,	Interface Circuit, BIPolar, PDIP16, DIP-16	Small Signal Bipolar Transistor, 0.06A I(C), 7-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.12A I(C), 7-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.12A I(C), 7-Element, NPN, Silicon,	Small Signal Bipolar Transistor, 0.4A I(C), 7-Element, NPN, Silicon,	Interface Circuit, BIPolar, PDIP16, DIP-16	Small Signal Bipolar Transistor, 0.06A I(C), 7-Element, NPN, Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16
Number of terminals	16	16	16	16	16	16	16	16	16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	YES	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is it Rohs certified?	incompatible	incompatible	incompatible	-	incompatible	incompatible	incompatible	incompatible	incompatible
Other features	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	-	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	BUILT-IN BIAS RESISTOR	-	-	BUILT-IN BIAS RESISTOR
Maximum collector current (IC)	0.4 A	0.4 A	-	0.06 A	0.12 A	0.12 A	0.4 A	-	0.06 A
Configuration	COMPLEX	7 BANKS, DARLINGTON WITH BUILT-IN RESISTOR	-	SEPARATE, 7 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 7 ELEMENTS WITH BUILT-IN RESISTOR	SEPARATE, 7 ELEMENTS WITH BUILT-IN RESISTOR	7 BANKS, DARLINGTON WITH BUILT-IN DIODE AND RESISTOR	-	SEPARATE, 7 ELEMENTS WITH BUILT-IN RESISTOR
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
Number of components	7	7	-	7	7	7	7	-	7
Polarity/channel type	NPN	NPN	-	NPN	NPN	NPN	NPN	-	NPN
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
transistor applications	SWITCHING	SWITCHING	-	SWITCHING	SWITCHING	SWITCHING	SWITCHING	-	SWITCHING
Transistor component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	-	SILICON
Maker	-	SHARP	-	-	SHARP	SHARP	SHARP	SHARP	SHARP
