TECHNICAL DATA SHEET
N 50
Ω

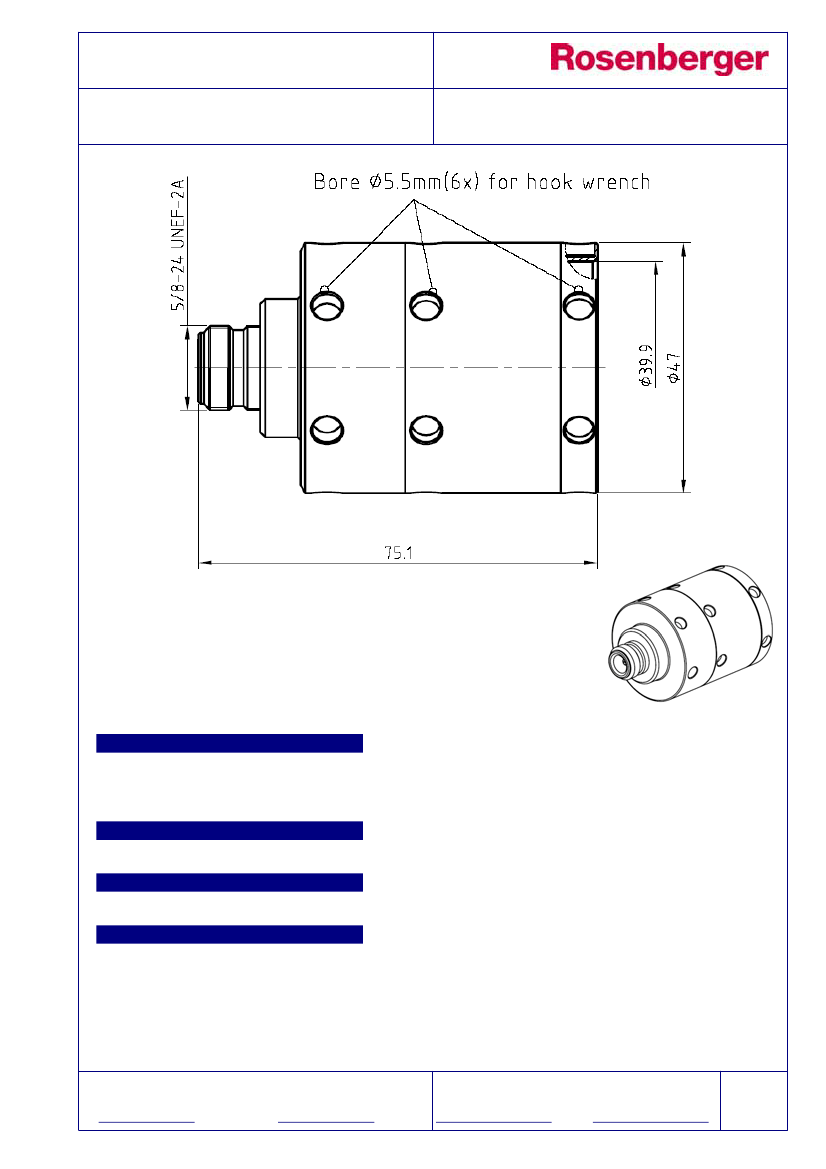

STRAIGHT JACK
53K117-C06N1
All dimensions are in mm; tolerances according to ISO 2768 m-H
Description
Female coaxial connector, series N acc. international interface standards. The connector is designed for
1-1/4’’R corrugated cables. The connector is waterproof in mated and unmated condition.
The connector will be delivered single packed including assembly instruction.
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
60 I41
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Spring bronze
Brass
Brass
TPX
Silicone
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
White bronze(e.g. Optalloy®)
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG, Germany
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
www.rosenberger.de
email: info@rosenberger.de
Rosenberger Asia Pacific Electronic Co., Ltd., China
Tel.: +86 10 80481995
Fax: +86 10 80497052
www.rosenbergerap.com email: info@rosenbergerap.com
Page
1/2
TECHNICAL DATA SHEET
N 50
Ω
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
(at sea level)
Working voltage
(at sea level)
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
50
Ω
DC to 11 GHz
≥
35 dB, DC to 1 GHz
≥
30 dB, 1 to 2.7 GHz
≤
0.05 dB
≥
5 x10
3
MΩ
≤
1 mΩ
≤
0.25 mΩ
2500 V rms
1400 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
≥
128dB up to 1 GHz
≤
-115 dBm @ 2 x 20 W
STRAIGHT JACK
53K117-C06N1
(3
rd
order)
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
≥
28 N
≥
3 Ncm
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection
2002/95/EC (RoHS)
-45°C to +85°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
IEC 60529, IP68
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
99W101-C06
Suitable cables
SL 114R (recommended) or Andrew LDF6-50A or Leoni 1 1/4”R
Packing
Standard
Weight
1 pce in bag
336 g/pce
