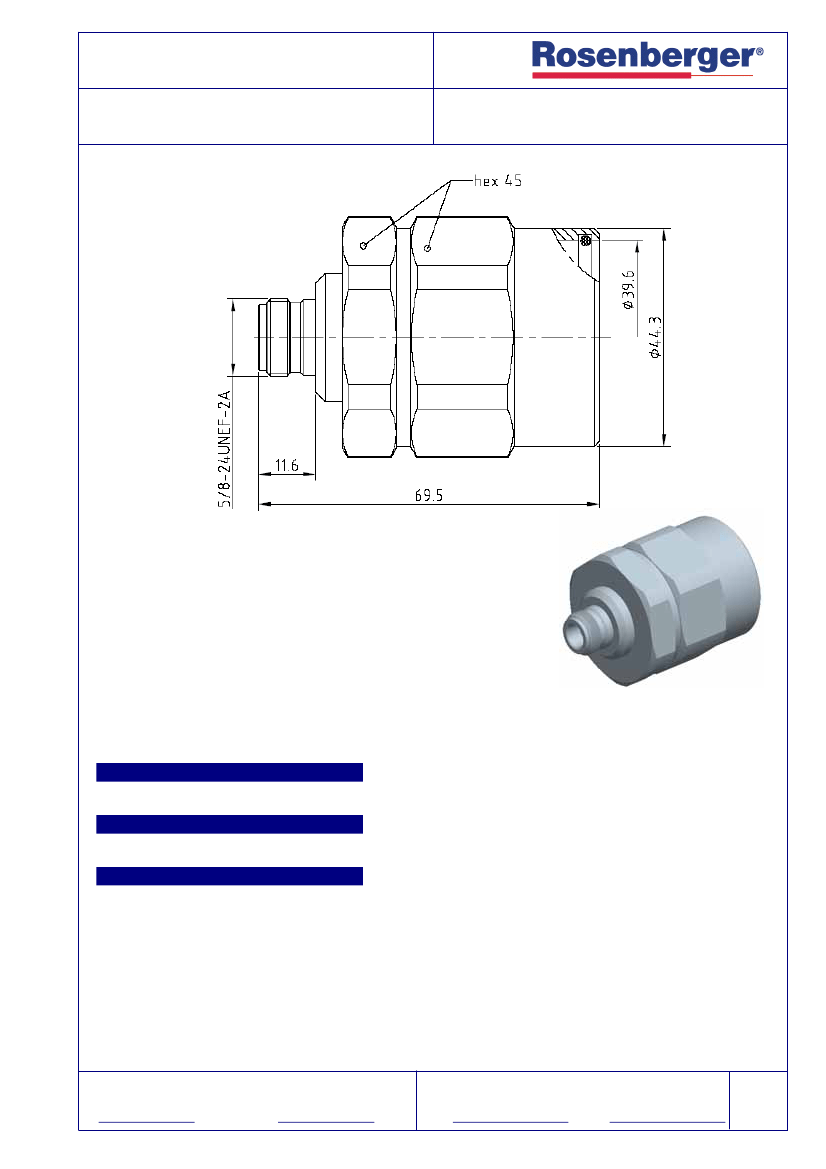

TECHNICAL DATA SHEET
N 50Ω
STRAIGHT JACK
(1-1/4’’R)
53K1C7-C06N1
All dimensions are in mm; tolerances according to ISO 2768 m-H
This product used for mobile network and telecommunication equipment
Interface
According to
IEC 60169-16, MIL-PRF-39012, CECC 22210
Documents
Assembly instruction
60 I39 (In package)
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Gasket
Material
Spring bronze
Brass
Brass
TPX
Silicone & EPDM
Plating
Silver, 3-6 µm
Flash white bronze over silver(e.g. Optargen®)
Nickel, 2.5-5µm
RF_35/06.07/5.0
Rosenberger Hochfrequenztechnik GmbH & Co. KG, Germany
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
www.rosenberger.de
email: info@rosenberger.de
Rosenberger Asia Pacific Electronic Co., Ltd., China
Tel.: +86 10 80481995
Fax: +86 10 80497052
www.rosenbergerap.com email: info@rosenbergerap.com
Page
1/2
TECHNICAL DATA SHEET
N 50Ω
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Test voltage
(at sea level)
Working voltage
(at sea level)
Power handling
(at 20 °C, sea level, VSWR 1.0)
Intermodulation
(3
rd
order)
STRAIGHT JACK
(1-1/4’’R)
53K1C7-C06N1
50
Ω
DC to 11 GHz
≤
-35dB, DC to 1 GHz
≤
-32dB, 1 to 2.7 GHz
≤
0.05 dB
≥
5 x10
3
MΩ
≤
1 mΩ
≤
0.25 mΩ
2500 V rms
1400 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
≤
-115 dBm @ 2 x 20 W
- Limitations are possible due to the used cable type -
Mechanical data
Mating cycles
Center contact captivation: axial
radial
Coupling test torque
Recommended torque
min. 500
≥
28 N
≥
3 Ncm
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection (mated pair)
2002/95/EC (RoHS)
-45°C to +85°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
IEC 60529, IP68
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
60W110-C06
Suitable cables
SL 114R Series (recommend)
Packing
Standard
Weight
1pce in box
359.3 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on our
part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our products,
we reserve the right to make changes judged to be necessary.
RF_35/06.07/5.0
Draft
Chen XW
Checker
Roger
Approved
Marshal
Date
2009.05.18
Rev.
d
Engineering change number
09-0337
Name
ZhaiQK
Date
12.05.2009
Rosenberger Hochfrequenztechnik GmbH & Co. KG, Germany
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
www.rosenberger.de
email: info@rosenberger.de
Rosenberger Asia Pacific Electronic Co., Ltd., China
Tel.: +86 10 80481995
Fax: +86 10 80497052
www.rosenbergerap.com email: info@rosenbergerap.com
Page
2/2
