Crystal oscillator
Epson Toyocom
Product Number (please contact us)

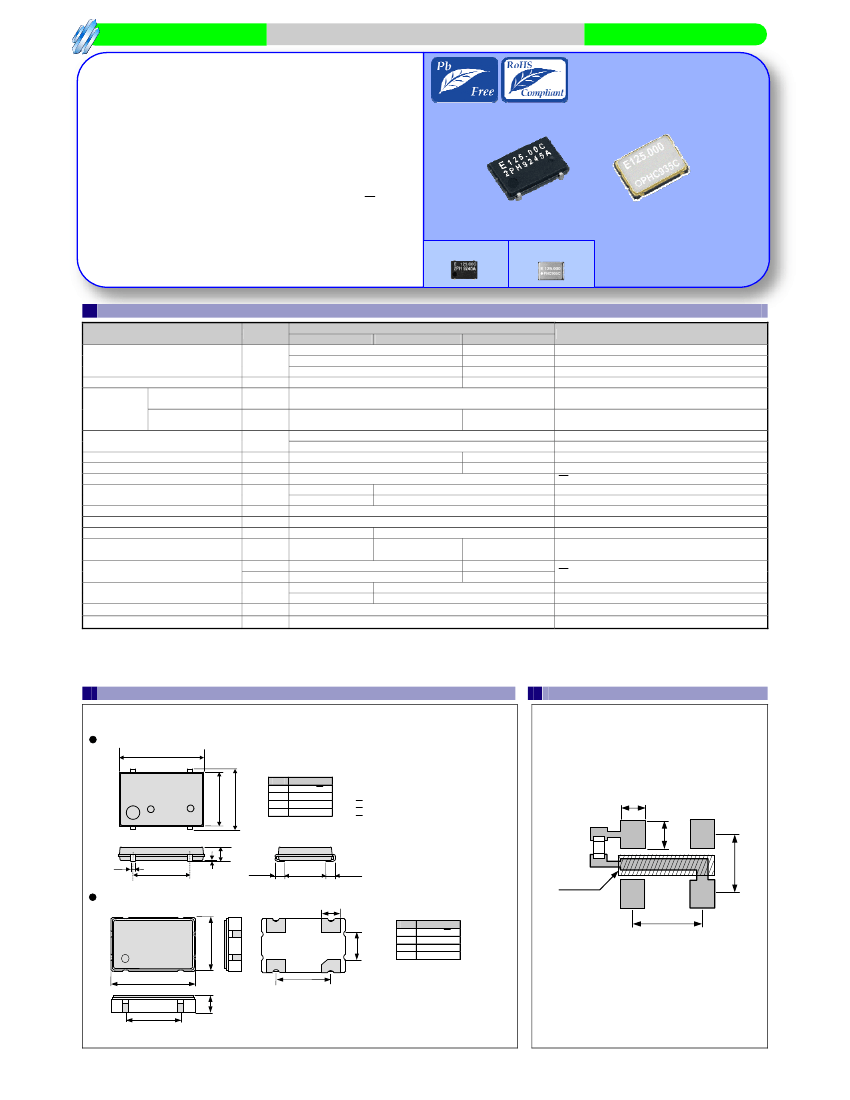

CRYSTAL OSCILLATOR
PROGRAMMABLE
CA Type
JF,CA Type
SG-8002JF : Q3308JFx1xxxx00
SG-8002CA : Q3309CAx0xxxx00
SG - 8002JF
/
CA
series
•Frequency
range
:
1 MHz to 125 MHz
•Supply
voltage
:
3.3 V / 5.0 V
•Function
:
Output enable(OE) or Standby(
ST
)
•External
dimensions
:
7.0 × 5.0 × 1.4 t (mm) ···SG-8002CA
•Pin
compatible with ceramic package crystal oscillator (7
×
5)
:
SG-8002JF
•Short
mass production lead time by PLL technology.
•SG-Writer
available to purchase.
Please contact Epson Toyocom or local sales representative.
Actual size
SG-8002JF
SG-8002CA
Specifications (characteristics)
Item
Output frequency range
Supply voltage
Temperature
range
Storage
temperature
Operating
temperature
Symbol
Specifications
*2
PT
/
ST
PH
/
SH
1 MHz to 125 MHz
-
-
4.5 V to 5.5 V
-55
°C
to +125
°C
-20
°C
to +70
°C
(-40
°C
to +85
°C)
-6
f
0
V
CC
T_stg
T_use
f_tol
PC
/
SC
-
V
CC
=4.5 V to 5.5 V
1 MHz to 125 MHz V
CC
=3.0 V to 3.6 V
1 MHz to 66.7 MHz V
CC
=2.7 V to 3.6 V
2.7 V to 3.6 V
Remarks
Store as bare product after unpacking
-40
°C
to +85
°C
-6
Refer to “Outline specifications” (Frequency range)
-20
°C
to +70
°C
B:
±50 ×
10 ,C:
±100 ×
10
M:
±100 ×
10
-6
-40
°C
to +85
°C
*3
Current consumption
I
CC
45 mA Max.
28 mA Max.
No load condition, Max. frequency range
Disable current
I_dis
30 mA Max.
16 mA Max.
OE=GND(PT,PH,PC)
Stand-by current
I_std
50
μA
Max.
ST
=GND(ST,SH,SC)
-
40 % to 60 %
CMOS load:50 % V
CC
level, Max. load condition
Symmetry*1
SYM
40 % to 60 %
-
TTL load: 1.4 V level, Max. load condition
High output voltage
V
OH
V
CC
-0.4 V Min.
I
OH
=-16 mA(PT
/
ST,PH
/
SH),-8 mA(PC
/
SC)
Low output voltage
V
OL
0.4 V Max.
I
OL
=16 mA(PT
/
ST,PH
/
SH), 8 mA(PC
/
SC)
Output load condition (TTL)
*1
L_TTL
5TTL Max.
-
f
0
≤90
MHz,Max. supply voltage
15 pF Max.
Output load condition (CMOS)
*1
L_CMOS
15 pF Max.
15 pF Max.
Max. frequency and Max. supply voltage
(CA:25 pF Max.)
V
IH
2.0 V Min.
70 % V
CC
Min.
Output enable / disable
ST
terminal or OE terminal
input voltage
V
IL
0.8 V Max.
20 % V
CC
Max.
-
3 ns Max.
CMOS load: 20 % V
CC
to 80 % V
CC
level
Rise time / Fall time
*1
t
r
/
t
f
4 ns Max.
-
TTL load: 0.4 V to 2.4 V level
10 ms Max.
Time at minimum supply voltage to be 0 s
Start-up time
t_str
±5 ×
10
-6
/ year Max.
+25
°C,
V
CC
=5.0 V/ 3.3 V (PC
/
SC) First year
Frequency aging
f_aging
*1
Operating temperature (-40
°C
to +85
°C),
the available frequency, symmetry and output load conditions, please refer to “Outline specifications” page.
Frequency tolerance
*2
*3
PLL-PLL connection & Jitter specification, please refer to “Jitter specifications and characteristics chart” page.
PT
/
ST and PH
/
SH for “M” tolerance will be available up to 55 MHz. (JF:40 MHz)
Checking possible by the Frequency Checking Program.
.
External dimensions
(Unit:mm)
Footprint (Recommended)
(Unit:mm)
SG-8002JF
7.1±0.2
#4
#3
4.6±0.2
2PH 9245A
#1
#2
5.1±0.2
E 125.00C
Pin map
Pin
Connection
1
OE or
ST
2
GND
3
OUT
4
V
CC
Note.
OE Pin (PT, PH, PC)
OE pin = "H" or "open" : Specified frequency output.
OE pin = "L" : Output is high impedance.
ST
pin (ST, SH, SC)
ST
pin = "H" or "open" : Specified frequency output.
ST
pin = "L" : Output is low level (weak pull - down),
1.5 Max
.
2.0
oscillation stops.
C
(ex. 0.01
μF)
1.8
0.4
5.08
0 Min.
(0.75)
3.8
(0.75)
Metal may be exposed on the top or bottom of this product. This will not affect any quality, reliability or electrical spec.
Resist
SG-8002CA
#4
#3
#3
1.4
#4
5.0
±0.2
PHC935C
#1
7.0
±0.2
#2
+0.1
1.4
-0.15
#2
5.08
#1
2.6
E 125.000
Pin map
Pin
Connection
1
OE or
ST
2
GND
3
OUT
4
V
CC
5.08
5.08
To maintain stable operation, provide by-pass capacitor
with more than 0.1
μF
at a location as near as possible to
the power source terminal of the crystal products
(between V
CC
- GND).
http://www.epsontoyocom.co.jp
4.2
Product Configuration System
Crystal Oscillators ‐ Programmables
SG‐8002
Model Number
JA
32.0000M
‐
P
Function
P: OE
H
L0
C
Packaging
Tape and Reel
(except DB & DC)
L0: 1000pcs per reel
L3: 250pcs per reel
B: Bulk
Stick (DB Only)
S: 25pcs/stick
Stick (DC Only)
S: 35pcs/stick
:
PURE SN
Package Type
DB: Plastic 19.8x7.6mm (SG‐51 Type)
DC: Plastic 13.7x7.6mm (SG‐531 Type)
JA: Plastic 14.0x9.8mm (SG‐615 Type)
JC: Plastic 10.5x5.8mm (SG‐636 Type)
JF: Plastic 7.1x5.1mm (SG‐645 Type)
CA: Ceramic 7.0x5.0mm (SG‐710 Type)
LB: NPO 5.0x3.2mm (SG‐550 Type)
CE : Ceramic 3.2x2.5mm (SG‐310 Type)
LA: NPO 3.2x2.5mm (SG‐350 Type) *
Output Frequency
1.0 ~ 125MHz:
M: Unit in MHz
S: ST
Power Supply (Vdd) Duty Level
H: 5.0V, CMOS (50% Vdd)
T: 5.0V, TTL (1.4V)
C: 3.3V, CMOS (50% Vdd)
Frequency Stability / Op Temp
B: +/‐50ppm ‐20˚ ~ +70˚C
C: +/‐100ppm ‐20˚ ~ +70˚C
M: +/‐100ppm ‐40˚ ~ +85˚C
PURE SN
ROHS
Blank : Not RoHs Compliant
NOTE:
Complete PB Free:
SG‐8002CA/CE
SG‐8002LA/LB
*SG‐8002LA & SG‐8002DB:
Not Recommended for New Designs
