53K506-500N5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53K506-500N5

53K506-500N5: DescriptionRF N Connector, 1 Contact(s), Female, Panel Mount, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size72KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric View All

53K506-500N5 Overview

RF N Connector, 1 Contact(s), Female, Panel Mount, Locking, Jack, ROHS COMPLIANT

53K506-500N5 Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
subject depth	0.937 inch
Body diameter	0.618 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF N CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact resistance	1 mΩ
Contact style	COAX
Coupling type	THREADED
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
Insertion loss	0.05 dB
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	53K506-500N5
Installation option 1	LOCKING
Installation method	STRAIGHT
Number of ports	1
Maximum operating frequency	11 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	YES
reliability	COMMERCIAL
Shell material	BRASS
Terminal length	0.118 inch
Total number of contacts	1
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

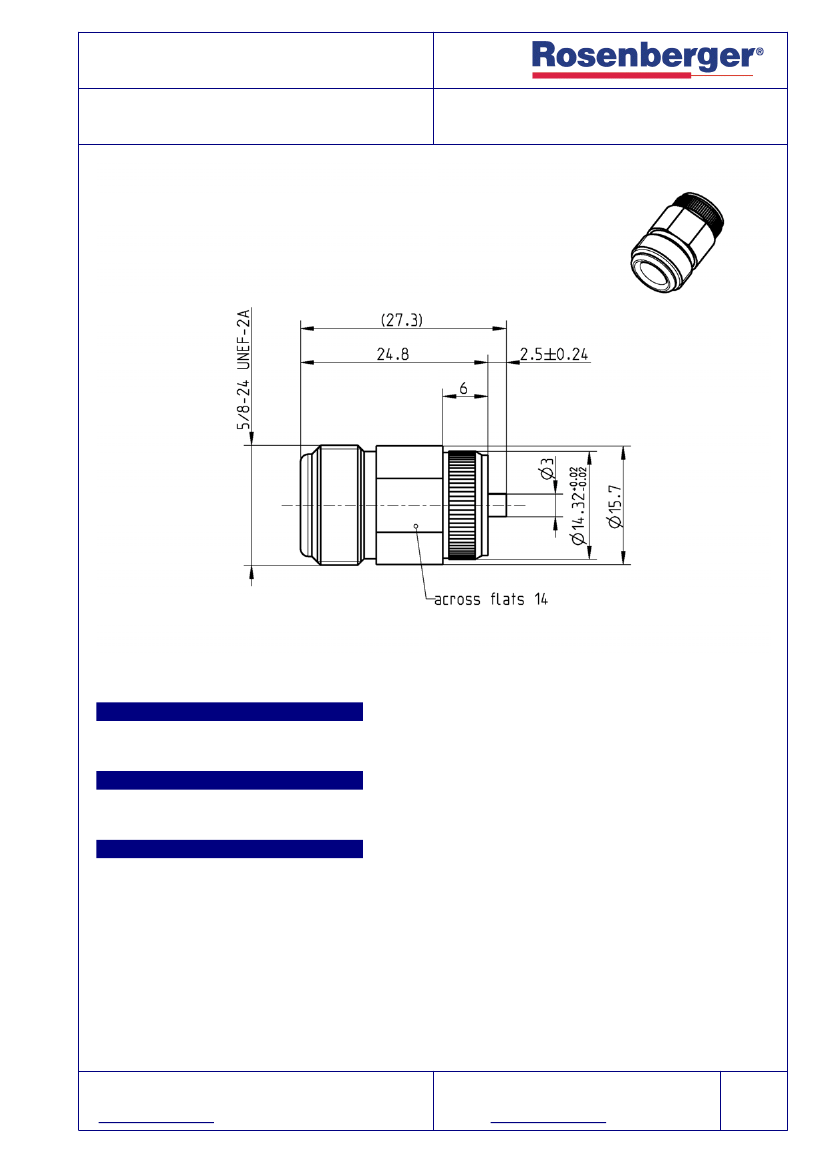

TECHNICAL DATA SHEET

N 50

BULKHEAD JACK

PRESS-IN

53K506-500N5

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

IEC 60169-16, MIL-PRF-39012, CECC 22210

Documents

Panel piercing

B 136

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Material

Spring bronze

Brass

PTFE

Plating

AuroDur®, gold plated

Flash white bronze over silver(e.g. Optargen®)

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
