LB-403-DF1: Description7 SEG NUMERIC DISPLAY, ORANGE, 10 mm; CategoryLED optoelectronic/LED photoelectric; File Size43KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LB-403-DF1 Overview

7 SEG NUMERIC DISPLAY, ORANGE, 10 mm

LB-403-DF1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
color	ORANGE
Configuration	COMMON ANODE, 1 DIGIT
Display height	10 mm
Maximum forward current	0.015 A
Number of functions	2.5
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

LED displays

High efficiency, three-digit numeric

displays

LB-403 F1 Series

The LB-403 F1 series were designed to

meet the need for multi-digit numeric

displays. These LED numeric displays

use GaAsP on GaP for the emitting ma-

terial (with the exception of green) and

are housed in an epoxy resin package.

They are three-digit displays with a

character height of 10 mm.

FFeatures

1) Height of character : 10 mm.

2) Common anode configuration

available for each color.

3) High efficiency reflectors are used

to achieve a bright, clear display.

4) The package surface is painted

black and the segments are colored

the display color.

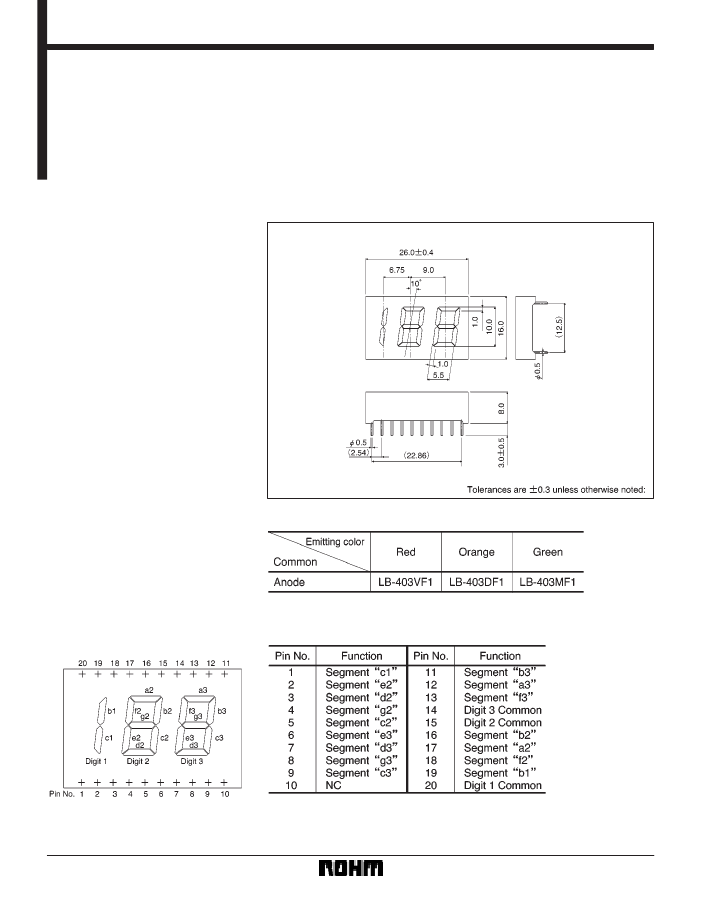

FSelection

guide

FExternal

dimensions (Units: mm)

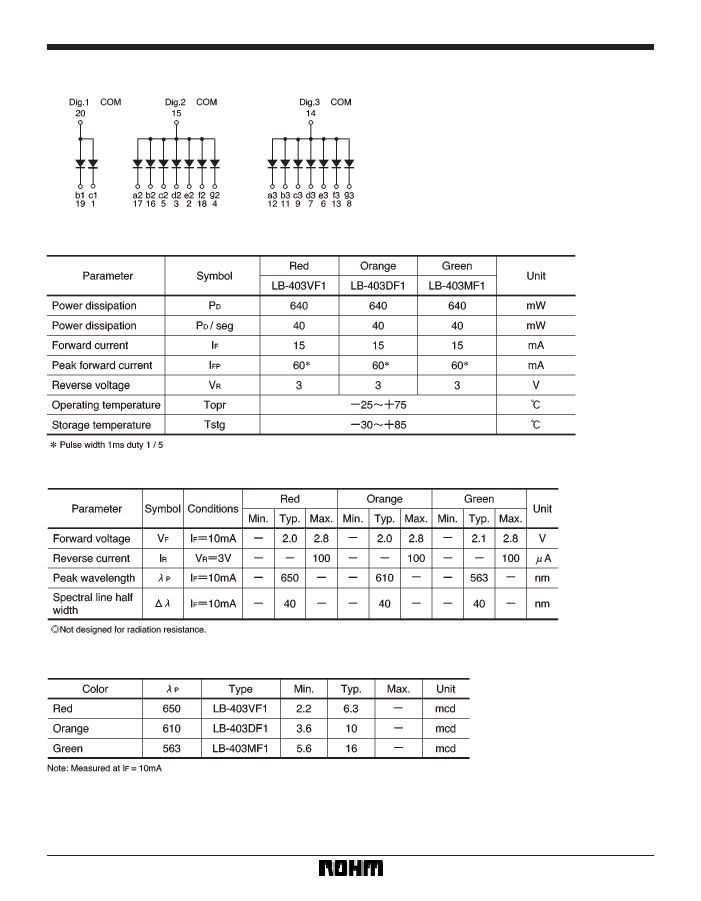

FPin

assignments

216
