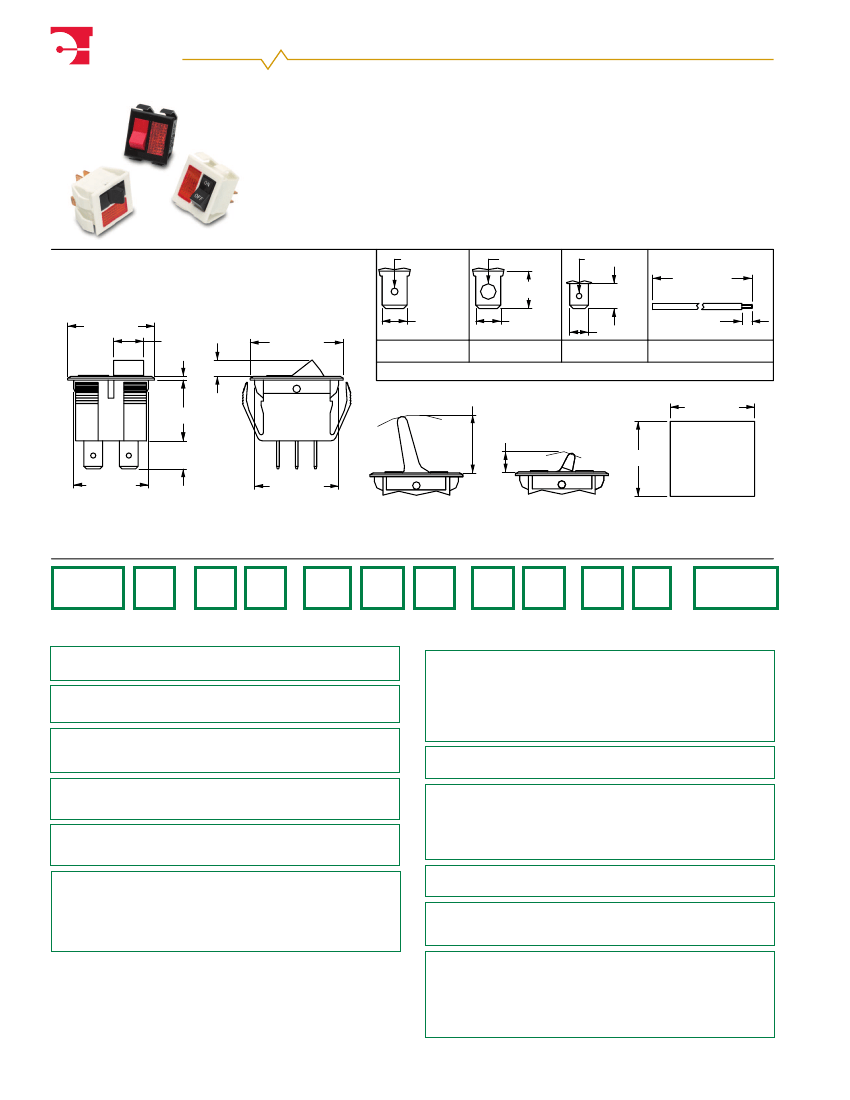

TLG-Series Rocker Switches
™
TLG-Series Rocker Switches
The TLG-Series Mini Tippette snap-in rocker switches are
single pole, rocker or paddle actuated with an adjacent indi-
cator light. These single-actuator-switches are AC rated to
20 amps and are also suitable for low voltage DC applica-
tions, in a wide range of markets including Appliance,
HVAC, Food service and Transportation.
Dielectric Strength
UL/CSA:
1000V - live to dead metal parts
Electrical Life
50,000 cycles- maintained
25,000 cycles- momentary
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 150°F (0°C to +65.6°C)
.069[1.75] DIA
.156[1.75] DIA
.055[1.75] DIA
6.000[152.40]
.375[9.52]
.250[6.35]
.500[12.70]
.187[4.74]
INTEGRATED WIRE LEAD
(no exposed conductors)
1.155[29.33]
.390[9.90]
.050[1.27]
1.240[31.49]
.250[6.35]
.250[6.35]
.250 TAB (Q.C.)
SOLDER LUG
.187 TAB (Q.C.)
TERMINAL TYPE
.220[5.59]
.812[20.62]
.275[6.98]
.375[9.52]
1.000[25.40]
1.120[28.44]
PADDLE
SHORT PADDLE
MOUNTING HOLE
Panel Thickness:
.020[.508] min. to
.250[6.35] max.
.520[13.20]
1.125[28.57]
.994[25.24]
TLG G
-
D R
-
TA 20 1
-
T B
-
B
1
Base Part Number
2
Circuit
3
Lens
Design
4
Lens Color
5
Basic Switch
Number
6
Rating
7
Termination
/ Function
8
Actuator
Style
9
Actuator
Color
10
Base Color
/
125N
11
Lens Color
12
Lamp Voltage
1 BASE PART NUMBER: SERIES
TLG
Single Pole with adjacent Indicator Light
2 CIRCUIT
1

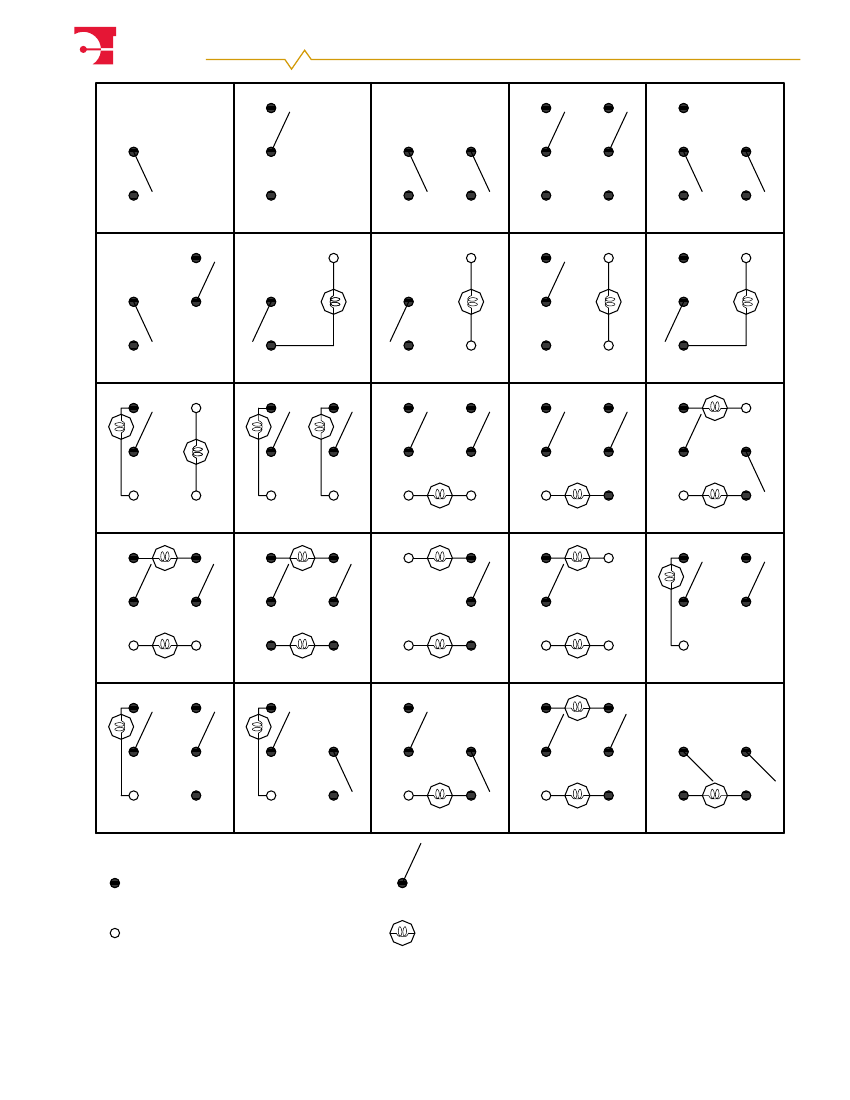

See Circuit Designation Chart Page 17.
3 LENS DESIGN
D
diamond
L
long Line
4 LENS COLOR
A
amber
C
clear
7 TERMINATION/FUNCTION
solder lug
.250 tab QC .187 tab QC
ON-NONE-OFF
0
1
3
(ON)-NONE-OFF
A
B
D
ON-NONE-(OFF)
L
M
R
ON-NONE-ON
0
1
3
ON-NONE-(ON)
A
B
D
ON-OFF-ON
0
1
3
8 ACTUATOR STYLE
P
paddle
PS
T
wire leads
5
F
T
5
F
5
short paddle
rocker
G
R
green
red
W
white
5 BASIC SWITCH NUMBER
4
TA
ON-NONE-OFF
TB
ON-NONE-ON
9 ACTUATOR COLOR
3
unlighted
B
black
W
white
TC
ON-OFF-ON
LTA
OFF-NONE-ON, lighted
10 BASE COLOR
3
B
black
11 LENS COLOR
2,4
A
amber
C
clear
12 LAMP VOLTAGE
incandescent
6V
6 volt
12V
12 volt
18V
18 volt
24V
24 volt
28V
28 volt
lighted
2
A
amber
C
clear
G
green
LU
blue
R
red
6 RATING
10
5A 250VAC, 10A 125VAC, 1/2HP 125-250VAC
11
5A 250VAC, 10A 125VAC, 5A 125VAC L
20
10A 250VAC, 15A 125VAC, 3/4HP 125-250VAC
21
10A 250VAC, 15A 125VAC
22
10A 250VAC, 15A 125VAC, 20A 125-250VAC H, 3/4HP 125-250VAC
NOTES:
Imprinting is available. Consult factory.
Panel Cut-Out Recommendations: For sheet metal panels, switch must enter panel in same direction
as the punch. (Burr on bottom.) Test cut hole in actual material.
1 Available with circuits G, H, I, J, K.
2 Neon lamps (125V or 250V) not recommended with green or blue actuators and lenses.
3 Custom colors are available. Consult factory.
4 Specify lens color only if Basic Switch Number is LTA (lighted). If not, leave blank.
( ) Indicates momentary function.
W
white
G
LU
green
blue
R
W
red
white
neon
2
125N
125 volt neon
250N
250 volt neon
16
