BAV19S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAV19S

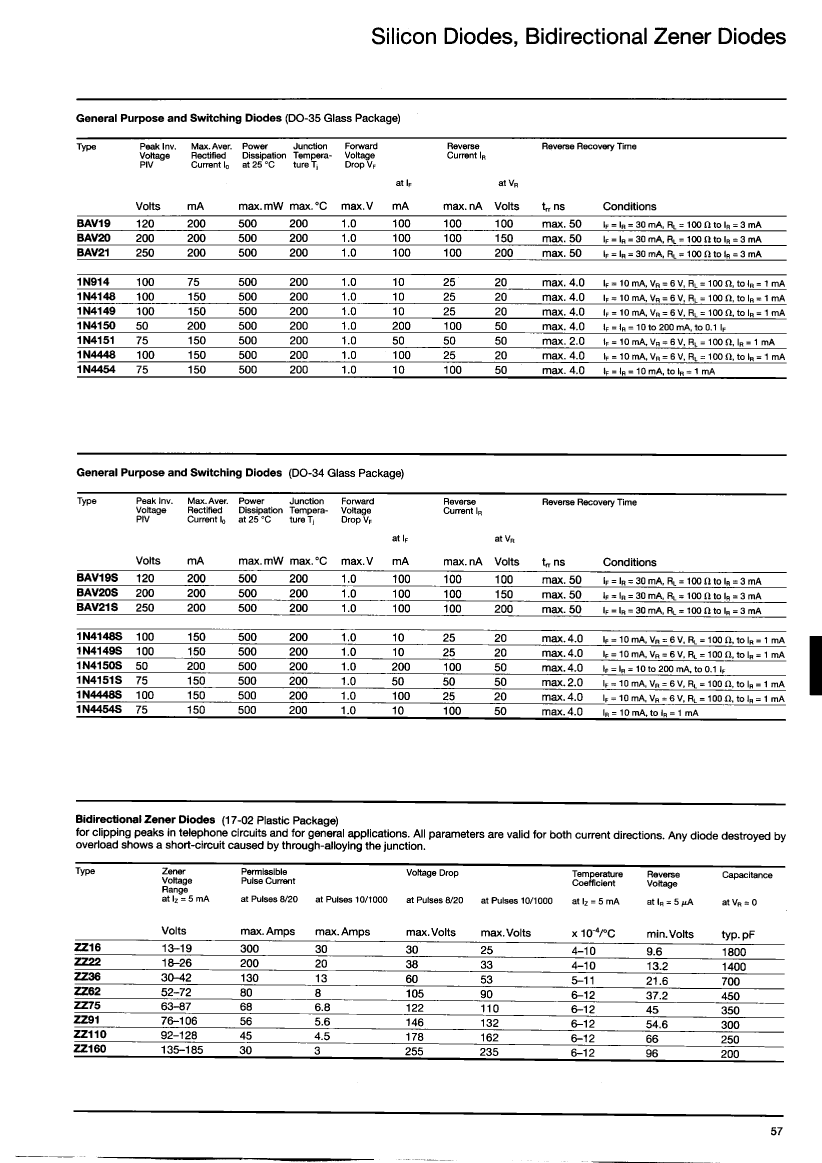

BAV19S: DescriptionRectifier Diode, 1 Element, 0.2A, Silicon; CategoryDiscrete semiconductor diode; File Size49KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

BAV19S Overview

Rectifier Diode, 1 Element, 0.2A, Silicon

BAV19S Parametric

Parameter Name	Attribute value
package instruction	O-LALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JESD-30 code	O-LALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	200 °C
Maximum output current	0.2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.5 W
Certification status	Not Qualified
Maximum reverse current	0.1 µA
Maximum reverse recovery time	0.05 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

BAV19S Related Products

	BAV19S	1N4151S	1N4150S	1N4454S	BAV20S	BAV21S
Description	Rectifier Diode, 1 Element, 0.2A, Silicon	Rectifier Diode, 1 Element, 0.15A, Silicon	Rectifier Diode, 1 Element, 0.2A, Silicon	Rectifier Diode, 1 Element, 0.15A, Silicon	Rectifier Diode, 1 Element, 0.2A, Silicon	Rectifier Diode, 1 Element, 0.2A, Silicon
package instruction	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	1 V	1 V	1 V	1 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Number of components	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	200 °C	200 °C	200 °C	200 °C	200 °C	200 °C
Maximum output current	0.2 A	0.15 A	0.2 A	0.15 A	0.2 A	0.2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum power dissipation	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W	0.5 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.1 µA	0.05 µA	0.1 µA	0.1 µA	0.1 µA	0.1 µA
Maximum reverse recovery time	0.05 µs	0.002 µs	0.004 µs	0.004 µs	0.05 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	1	-	-
