BYW92-200 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYW92-200

Preview

BYW92-200: DescriptionRectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size209KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

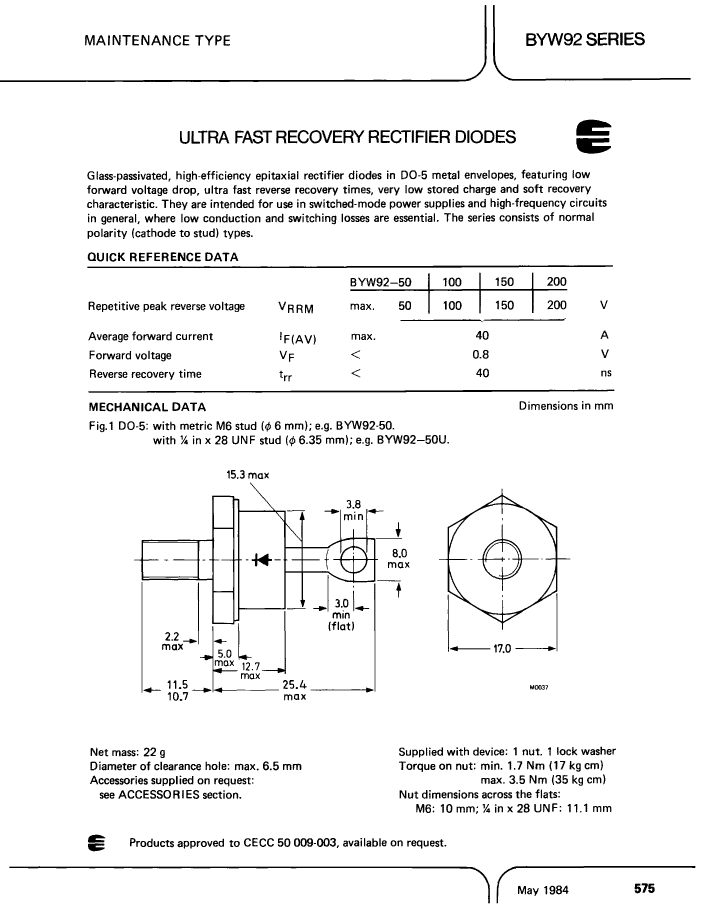

BYW92-200 Overview

Rectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon

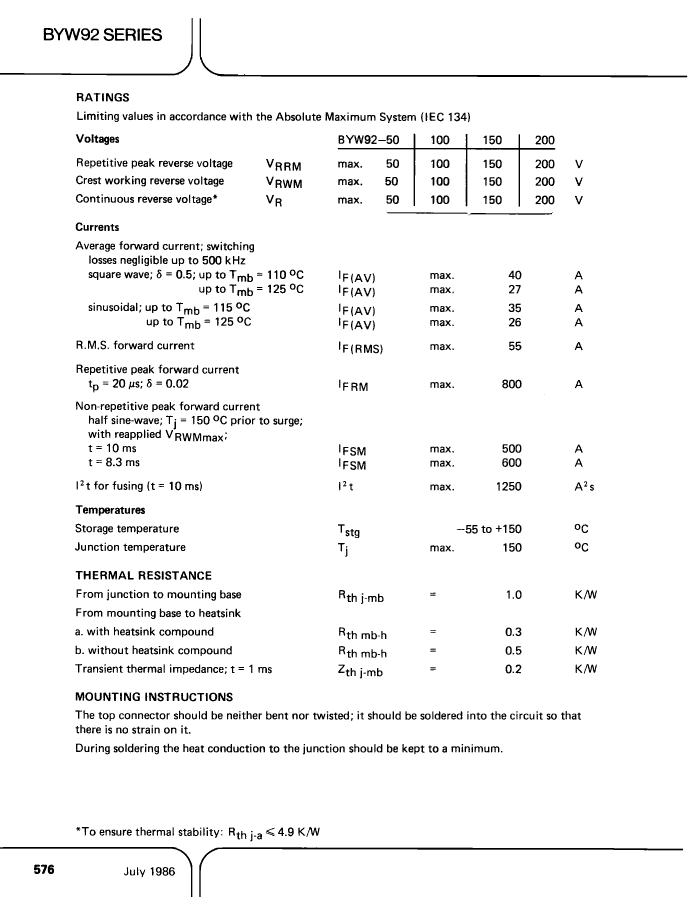

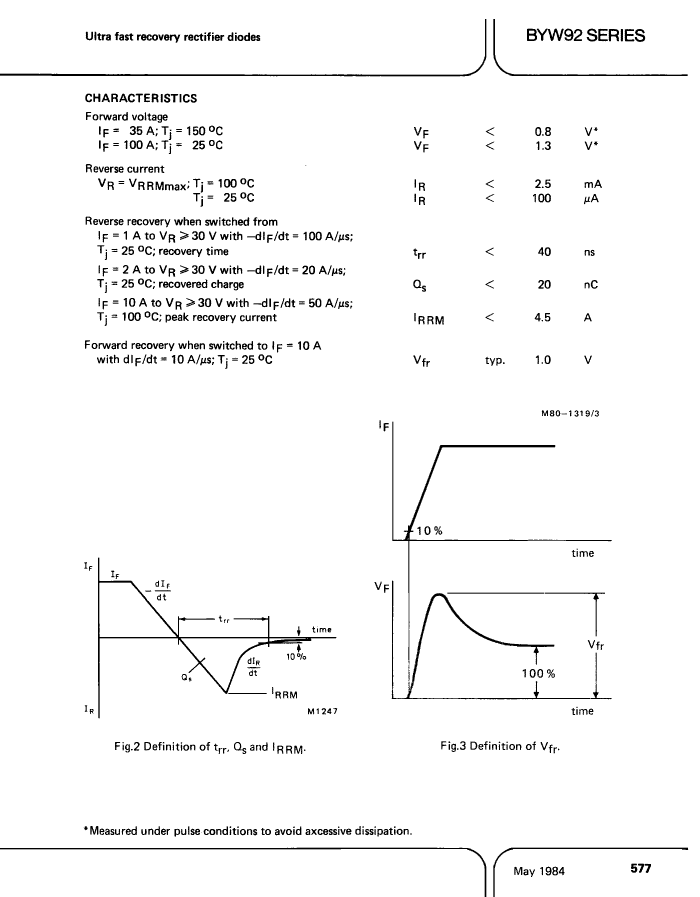

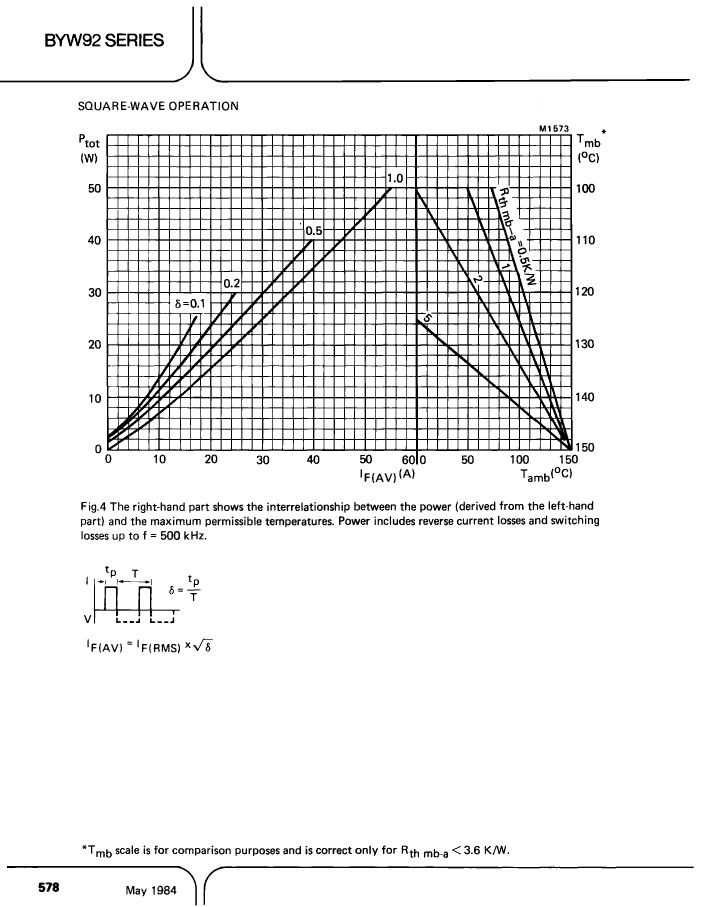

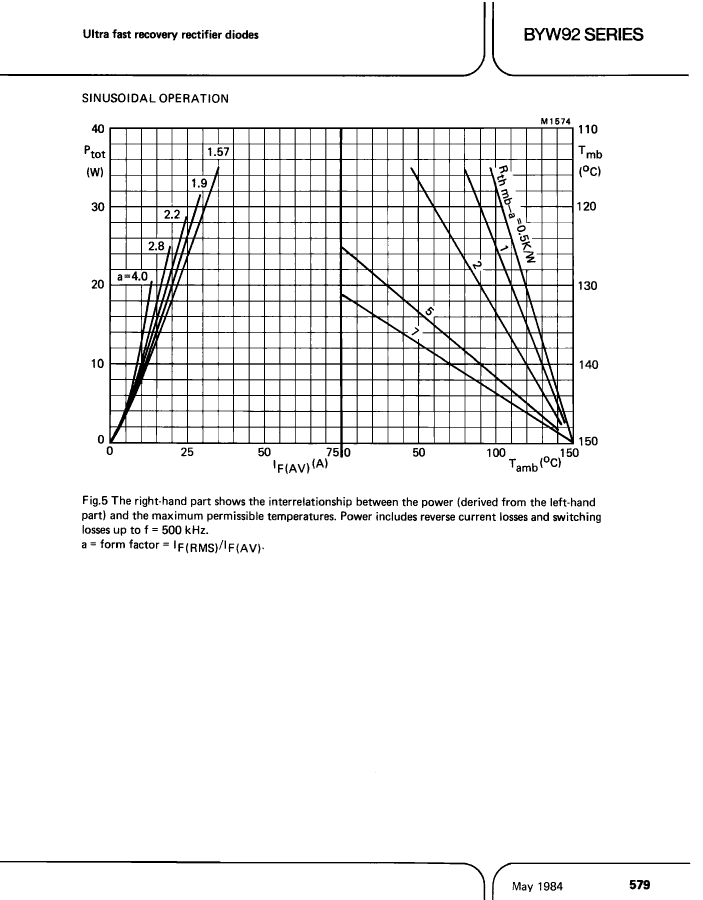

BYW92-200 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	600 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	40 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Guideline	CECC50009-003
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	100 µA
Maximum reverse recovery time	0.04 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

BYW92-200 Related Products

	BYW92-200	BYW92-200U	BYW92-150U	BYW92-50	BYW92-150	BYW92-50U	BYW92-100	BYW92-100U
Description	Rectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 40A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 50V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 40A, 150V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 40A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon	Rectifier Diode, 1 Phase, 1 Element, 40A, 100V V(RRM), Silicon,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	1	1	1	1	1	1	1	1
Phase	1	1	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	40 A	40 A	40 A	40 A	40 A	40 A	40 A	40 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Guideline	CECC50009-003	CECC50009-003	CECC50009-003	CECC50009-003	CECC50009-003	CECC50009-003	CECC50009-003	CECC50009-003
Maximum repetitive peak reverse voltage	200 V	200 V	150 V	50 V	150 V	50 V	100 V	100 V
Maximum reverse current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
Maximum reverse recovery time	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs	0.04 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
