BO2S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> BO2S

BO2S: DescriptionFixed Resistor, Metal Oxide Film, 350V, Through Hole Mount, AXIAL LEADED; CategoryPassive components The resistor; File Size228KB，4 Pages; ManufacturerRoyal Electronic Factory (Thailand) Co., Ltd.

Download Datasheet Parametric View All

BO2S Overview

Fixed Resistor, Metal Oxide Film, 350V, Through Hole Mount, AXIAL LEADED

BO2S Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compliant
Other features	NON-INDUCTIVE AVAILABLE
Manufacturer's serial number	BO2S
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	235 °C
Minimum operating temperature	-55 °C
Package shape	TUBULAR PACKAGE
method of packing	AMMO PACK; BULK; TR
Rated temperature	70 °C
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL OXIDE FILM
Terminal shape	WIRE
Operating Voltage	350 V
Base Number Matches	1

Preview

Download Datasheet

View All

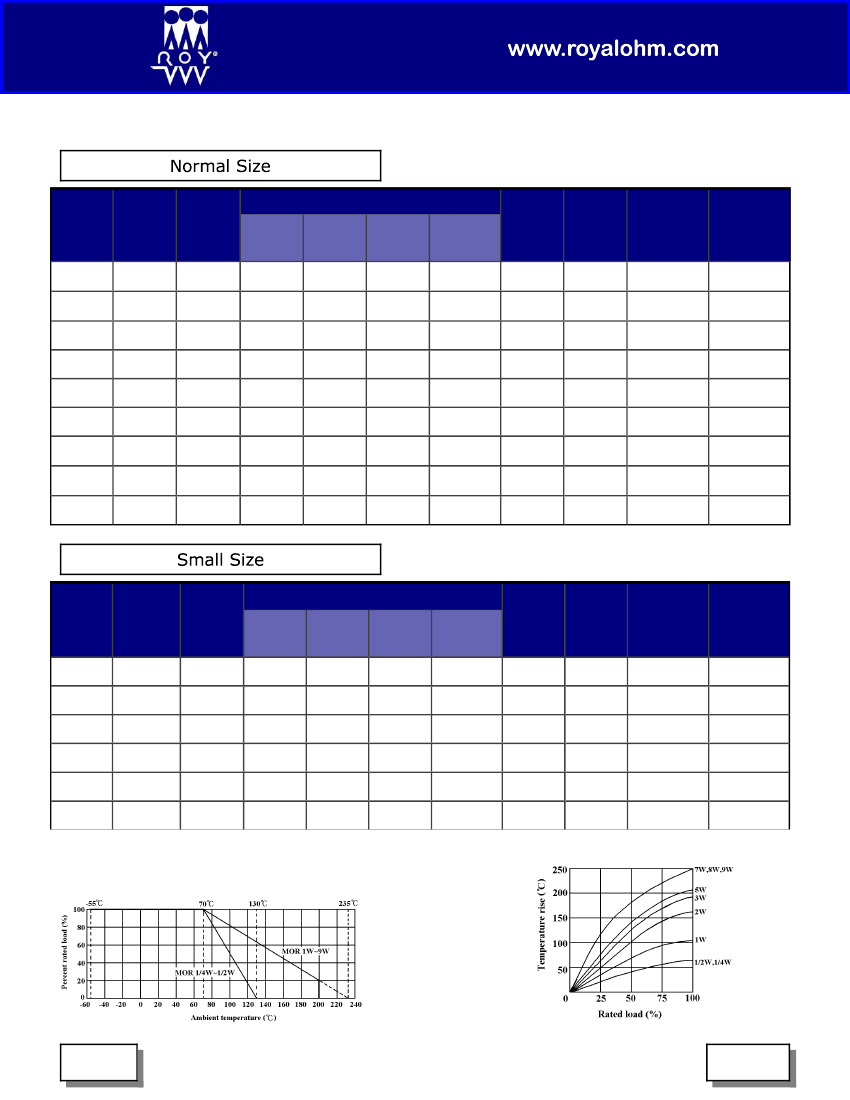

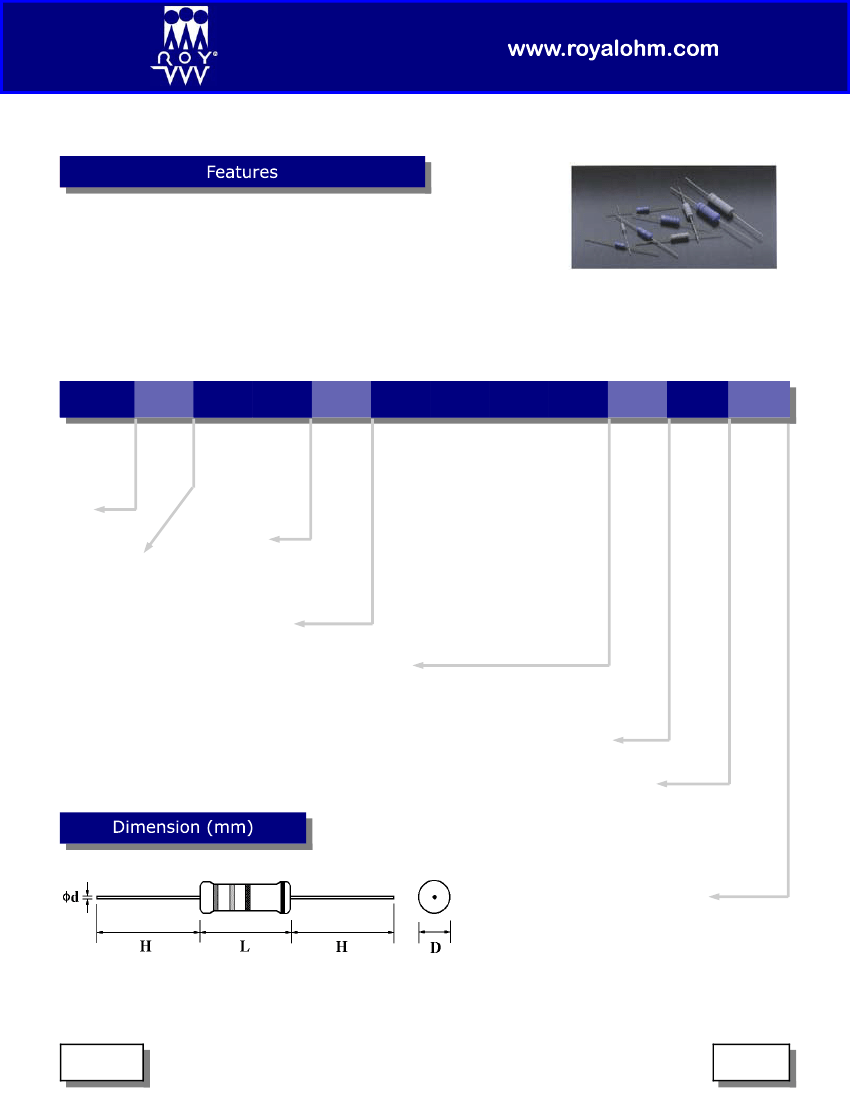

METAL OXIDE FILM FIXED RESISTOR

High safety standard, high purity ceramic core

Excellent non-flaming coating, non-inductive type available

Stable performance in diverse environments, Meet EIAJ-

RC2655A requirements

Too low or too high ohmic value can be supplied on a case-to-case basis

Explanation of Part Number & Ordering Procedure:

Resistor

Type:

Coated

Resistors

W4~1/4W,

W2~1/2W,

1W~1W,

9W~9W,

S2~1/2W-S

5T~5W-SS

1S~1W-S

: :

5S~5W-S

Power Rating:

Resistance Value:

E-6, E-12, E-24 series

a.) Normally for these series, the box

No. 6 is “0”.

b.) Boxes No. 7 & 8 are for the Ohmic

Value.

c.) Box No. 9 is for the multiplier or

indication for no. of zeros.

E-96 series

a.) Boxes No. 6 to 8 are for the Ohmic

Value.

b.) Box No. 9 is for the multiplier or

indication for no. of zeros.

Decimal point is expressed by:

“J”- 0.1, “K”- 0.01, “L”- 0.001

Ex.

2 26 ~ 226K, 226 ~ 2260

Series Code:

Tolerance:

F = ±1%, G = ±2%,

J = ±5%, K = ±10%

O ~ Metal Oxide Film Fixed

Resistors

Note:

Special T.C.R. requirements can be supplied

on a case-to-case basis. Please indicate

when ordering.

Packing Type:

A = Tape / Box

B = Bulk / Box

T = Tape / Reel

Suffix for Special Features:

F ~ F Type, M ~ M Type, T ~ T Type, 7 ~ Lead wire 38 mm

0 ~ PT-52 mm, 1 ~ PT-26 mm, 8 ~ PT-58 mm, 9 ~ PT-64 mm

Assistance Code:

Usually is “0”

As: F(3) Type = 3

AVI(2) = 2 etc.

Page 26

2004 - 2005
