IRM054U7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> IRM054U7

IRM054U7: DescriptionNarrow Band Low Power Amplifier, 2400MHz Min, 2500MHz Max, 3 X 5 MM, 0.75 MM HEIGHT, HQFN-24; CategoryWireless rf/communication Radio frequency and microwave; File Size136KB，3 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric View All

IRM054U7 Overview

Narrow Band Low Power Amplifier, 2400MHz Min, 2500MHz Max, 3 X 5 MM, 0.75 MM HEIGHT, HQFN-24

IRM054U7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	IT CAN ALSO OPERATE AT 4900 TO 5900 MHZ
structure	COMPONENT
Gain	28 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	2500 MHz
Minimum operating frequency	2400 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
RF/Microwave Device Types	NARROW BAND LOW POWER
Base Number Matches	1

Preview

Download Datasheet

View All

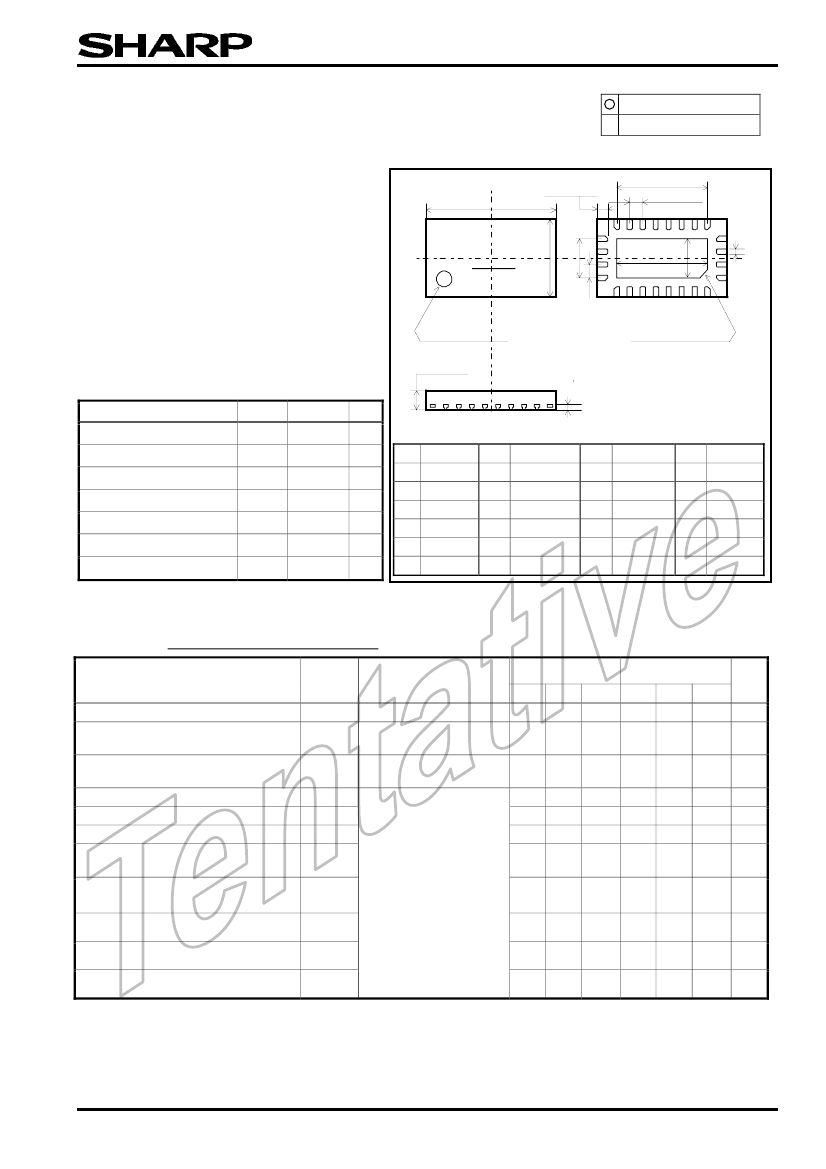

IRM054U7

2.4 / 5 GHz ISM Power Amplifier MMIC

・

Small Package

( 3.0 x 5.0 x 0.75 mm, HQFN24P0305)

・

Fully Integrated Matching Circuit

・

High Linearity

・

High Gain > 28 dB

・

18dBm Output Power for 802.11 a/g

・

Very Low Current Consumption

・

Power Detector embedded

・

Not designed or rated as radiation hardened

■

Absolute Maximum Ratings

( Tc_opr = 25 °C )

Parameters

DC Supply Voltage

Control Voltage

Input RF Power

Peak Supply Current

Total DC Power Dissipation

Storage Temperature

Operating Temperature

Symbol

Vcc

Vbb

Icc

Tstg

Rating

0.4

1.0

Unit

dBm

°C

2.4 / 5 GHz ISM Power Amplifier

Under Development

Ready to Production

5.00±0.15

0.40±0.05

3.50

0.50(typ)

054U7

YMX

#1 pin Indicator

0.75±0.05

3.00±0.15

1.50

3.50

0.50(typ)

0.20±0.05

#1 pin Indicator

unit : mm

-35~+120

Tc_opr -25 ~ +85

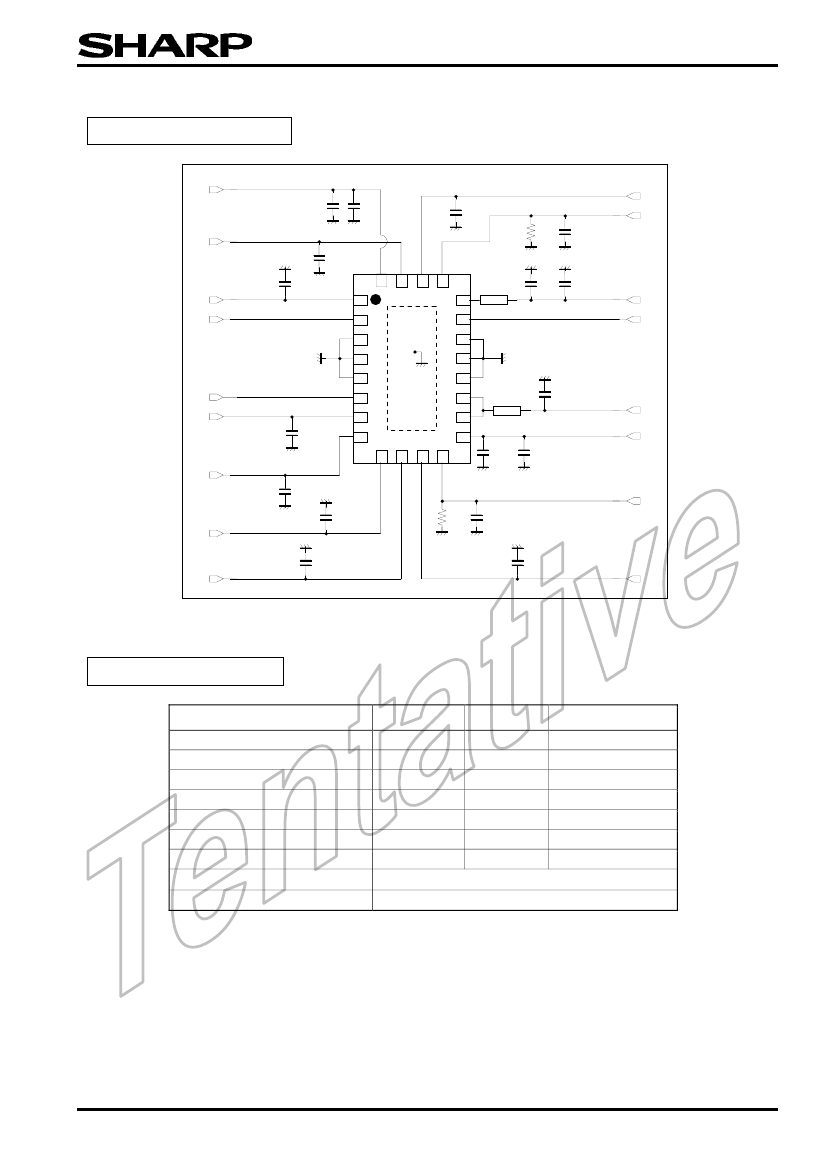

(1) Vbb1-LB (7) Vbb1&2-HB (13) Vcc3-HB (19) RFout-LB

(2) RFin-LB (8) Vcc1-HB (14) RFout-HB (20) Vcc2-LB

(3)

GND

(9) Vcc2-HB (15) RFout-HB (21) Vdet-LB

(4)

GND

(10) Vbb3-HB (16)

GND

(22) Vdd-LB

(5)

GND

(11) Vdd-HB (17)

GND

(23) Vbb2-LB

(6) RFin-HB (12) Vdet-HB (18)

GND

(24) Vcc1-LB

(25)

GND

■

Electrical Characteristics

( Target Specification )

Test condition is Vcc = 3.3 V, Vbb = 2.8 V, Vdd = 2.8 V and Tc_opr = 25 °C. In the case of other condition, it is indicated.

Parameter

Frequency

Leak Current

Idle Current

Output Power Gain

Collector Current

Control Current

Adjacent Channel Power Rejection

Alt. Adjacent Channel Power Rejection

Error Vector Magnitude*

2nd Harmonics

3rd Harmonics

Symbol

Freq

Icc_leak

Icc_idle

Gain

Icc

Ibb

ACPR1

ACPR2

EVM

2fo

3fo

For Freq 4.9 ~ 5.9 GHz

IEEE802.11a Input

(OFDM 64QAM 54Mbps)

Vcc = 6 V, Vbb = 0 V

No RF Input

Vcc = 3.3 V, Vbb = 2.8 V

No RF Input

Vcc = 3.3 V, Vbb = 2.8 V

Vdd = 2.8 V

Pout = 18 dBm

For Freq = 2.4 ~ 2.5 GHz

IEEE802.11g Input

(OFDM 64QAM 54Mbps)

Test Condition

2.4

0.02

120

3.5

- 38

- 56

3.0

- 44

- 37

Low Band

2.5

0.5

150

5.0

High Band

4.9

0.02

150

3.5

- 39

- 55

3.0

- 39

- 48

5.9

0.5

125

180

5.0

Unit

GHz

µA

dBc

Min. Typ. Max. Min. Typ. Max.

* Excluding non-linearity of SG.

* The performance is obtained only with the test jig specified by Sharp Corporation.

Ver.3.6

05/05/20

0.20
