CMD93-22SRUGCTR8: DescriptionDual Color LED, Red/green, Clear, 3.40 X 2.70 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMT, SUBMINIATURE PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size110KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

CMD93-22SRUGCTR8 Overview

Dual Color LED, Red/green, Clear, 3.40 X 2.70 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMT, SUBMINIATURE PACKAGE-4

CMD93-22SRUGCTR8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	3.40 X 2.70 MM, 1.50 MM HEIGHT, ROHS COMPLIANT, SMT, SUBMINIATURE PACKAGE-4
Reach Compliance Code	unknown
color	RED/GREEN
color@wavelength	Green/Red
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A
Maximum forward voltage	2.4 V
Lens type	CLEAR
minimum luminous intensity	125 cd
Nominal luminous intensity	40.0/22.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	DUAL COLOR LED
total height	1.5 mm
method of packing	TAPE AND REEL
peak wavelength	660/565 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
surface mount	YES
perspective	125 deg
Base Number Matches	1

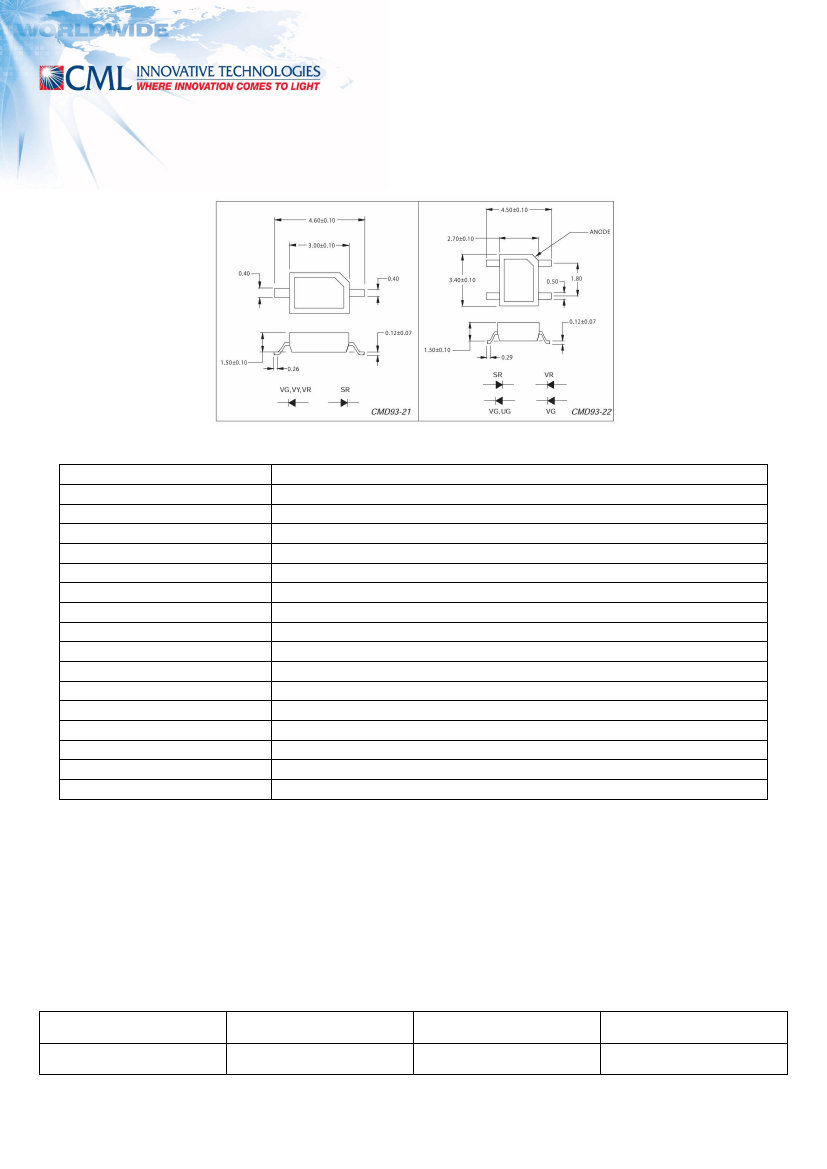

Preview

Download Datasheet

View All

Part Number : CMD93-22SRUGCTR8

Serial Number : CMD93

LEDs

Led type

Industry size

Size (mm)

Output color

Epoxy

Peak Wave Lenght (mA)

Min. Mcd

Typical mcd

Forward volt typ.

Forward volt max.

Rated current (mA)

Viewing angle (°)

Op. temperature (°C)

Storage temperature (°C)

Power Dissipation

Cont forward current max

ROHS Status

SMT

Subminiature

3.4 x 2.7 x 1.5 mm

RED / GREEN

CLEAR

660 / 565

24.0 / 13.5

40.0 / 22.5

1.7 / 2.1

2.4 / 2.8

20

125

-0,3125

-0,277777778

100 / 105

30.0 / 25.0

Yes

Drawn : EQ

Revision :

Ch'd : EQ

Revision date : 2006-03-06

Datasheet : CMD93

Name : EQ

Print date : 06/09/06

Scale :

All data are subject to changes without notices. Information include in datasheet is not binding.
