RN2901(TE85R)

Description
TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, US6, 2-2J1A, 6 PIN, BIP General Purpose Small Signal
CategoryDiscrete semiconductor    The transistor
File Size570KB，7 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Download Datasheet Parametric Compare View All

RN2901(TE85R) Overview

TRANSISTOR 100 mA, 50 V, 2 CHANNEL, PNP, Si, SMALL SIGNAL TRANSISTOR, US6, 2-2J1A, 6 PIN, BIP General Purpose Small Signal

RN2901(TE85R) Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionSMALL OUTLINE, R-PDSO-G6
Contacts6
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresBUILT-IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)30
JESD-30 codeR-PDSO-G6
JESD-609 codee0
Number of components2
Number of terminals6
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)240
Polarity/channel typePNP
Certification statusNot Qualified
surface mountYES
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)200 MHz
Base Number Matches1

Preview

Download Datasheet

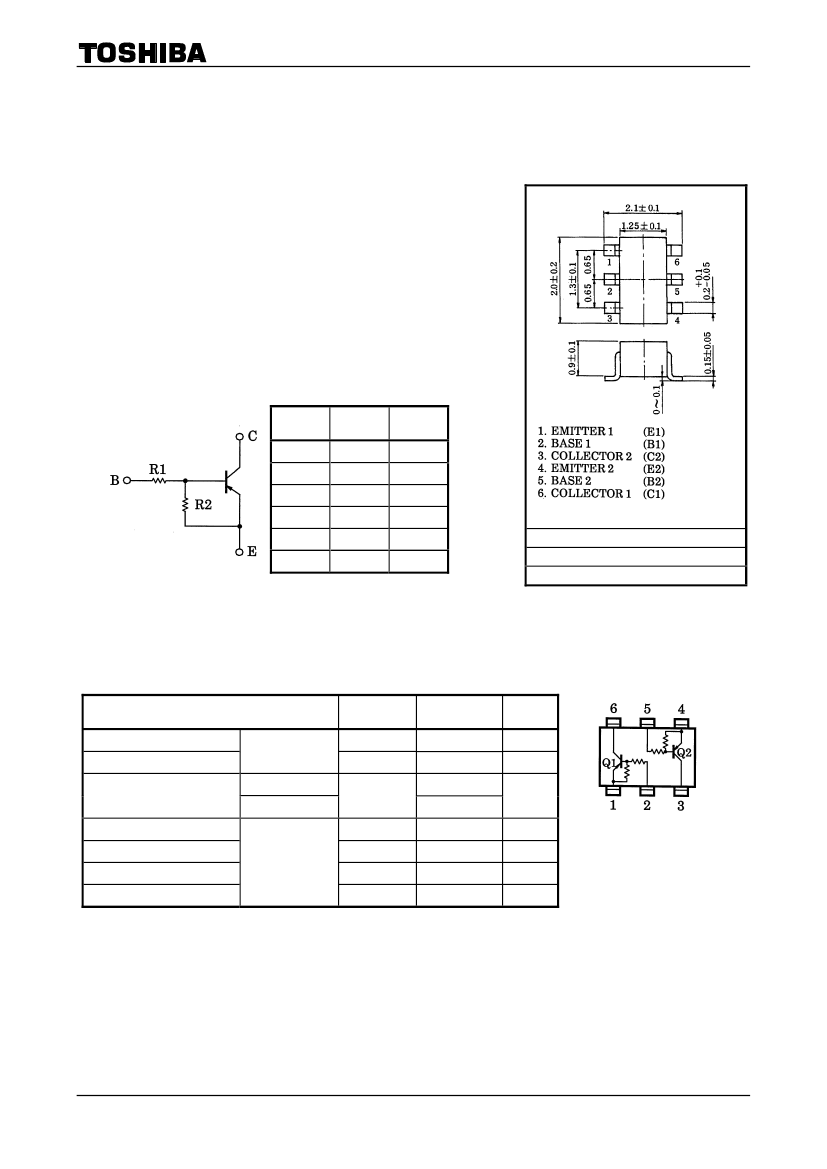

RN2901~RN2906
TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) (Bias Resistor Built-in Transistor)
RN2901,RN2902,RN2903,RN2904,RN2905,RN2906
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Unit : mm
Including two devices in US6 (ultra super mini type with 6 leads)
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
Complementary to RN1901 to RN1906
Equivalent Circuit and Bias Resistor Values
Type No.
RN2901
RN2902
RN2903
RN2904
RN2905
RN2906
R1 (kΩ)
4.7
10
22
47
2.2
4.7
R2 (kΩ)
4.7
10
22
47
47
47
US6
―
JEDEC
―
JEITA
2-2J1A
TOSHIBA
Weight: 6.8 mg (typ.)
Absolute Maximum Ratings
(Ta = 25°C) (Q1, Q2 Common)
Characteristic
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
RN2901 to 2906
RN2901 to 2906
RN2901 to 2904
RN2905, 2906
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
*
T
j
T
stg
Rating
−50
−50
−10
−5
−100
200
150
−55~150
Unit
V
V
V
mA
mW
°C
°C
Equivalent Circuit
(Top View)
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
* : Total rating
1
2010-07-09
