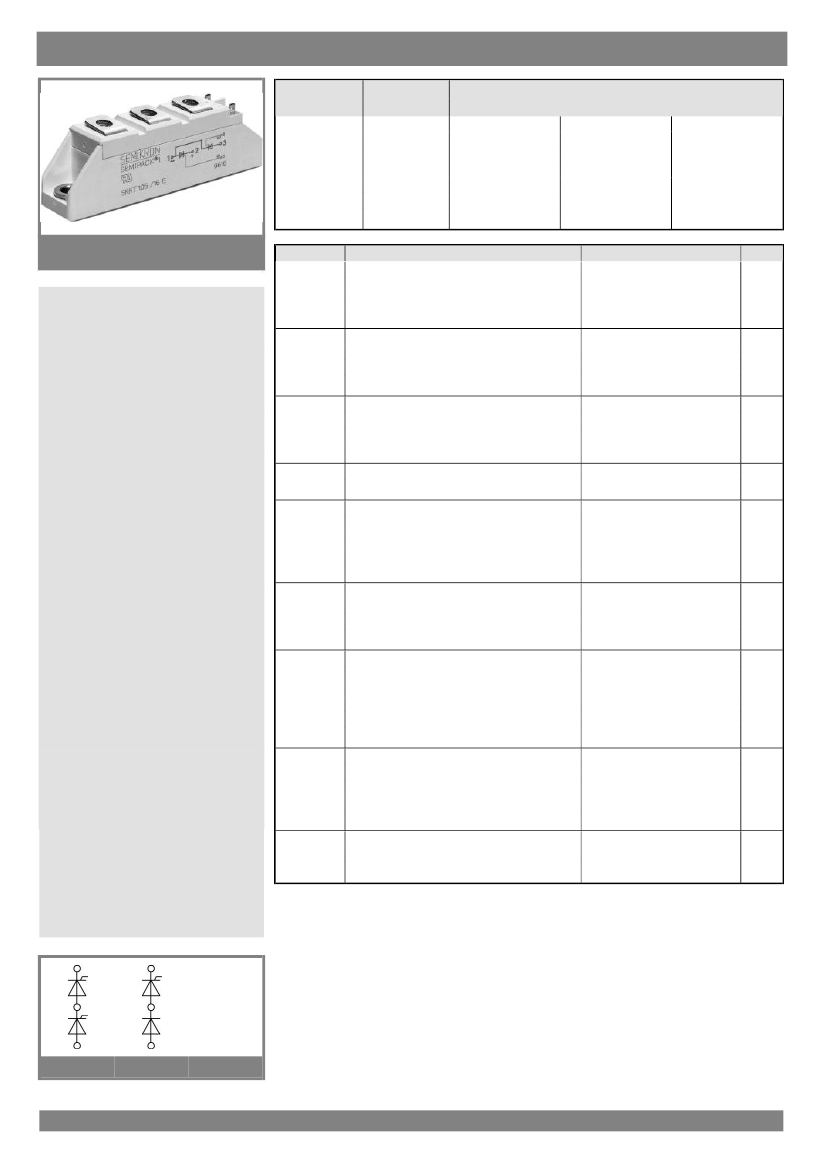

Silicon Controlled Rectifier, 180A I(T)RMS, 106000mA I(T), 400V V(DRM), 400V V(RRM), 1 Element, CERAMIC, CASE A6, SEMIPACK 1, 4 PIN

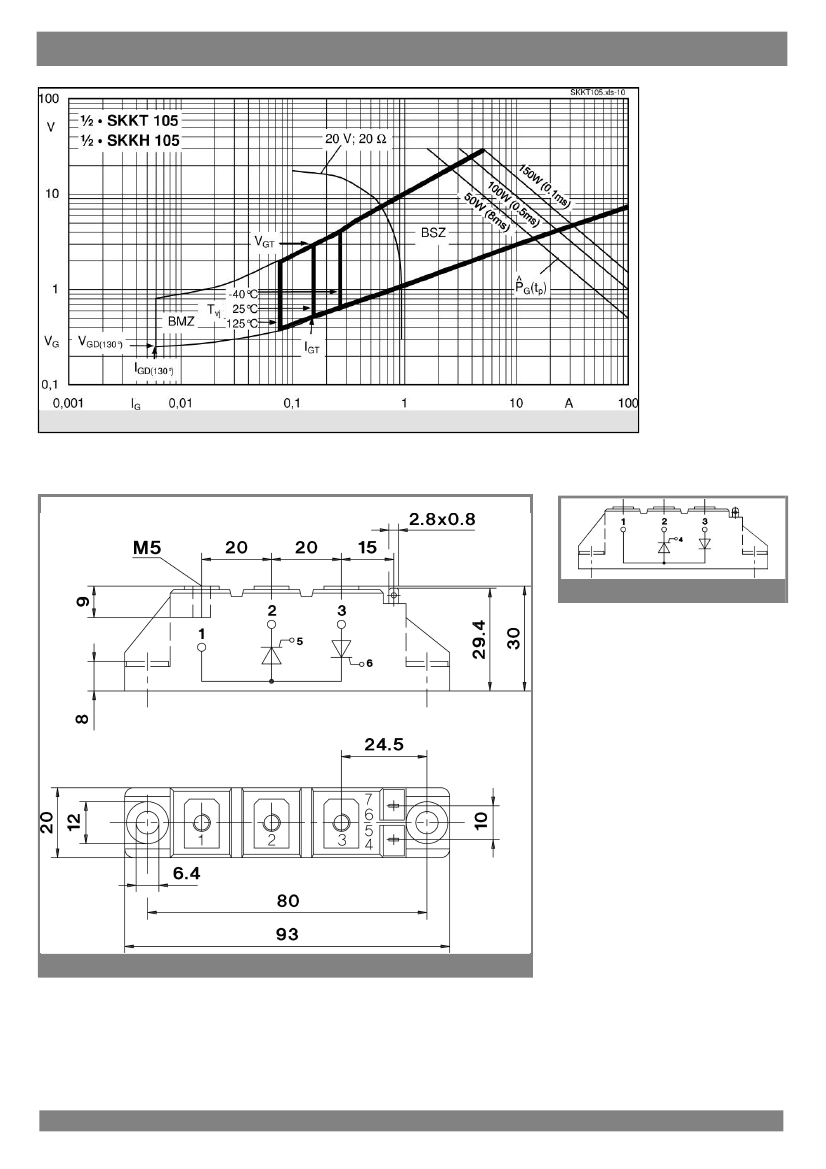

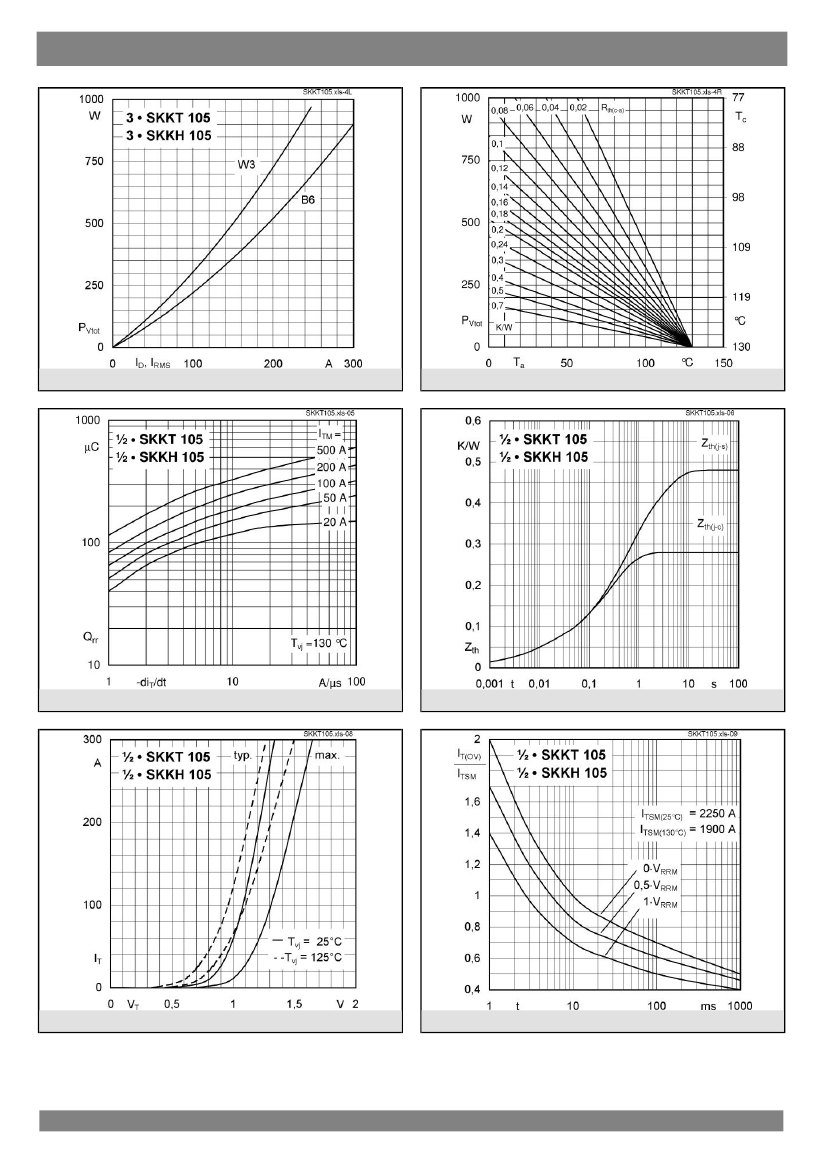

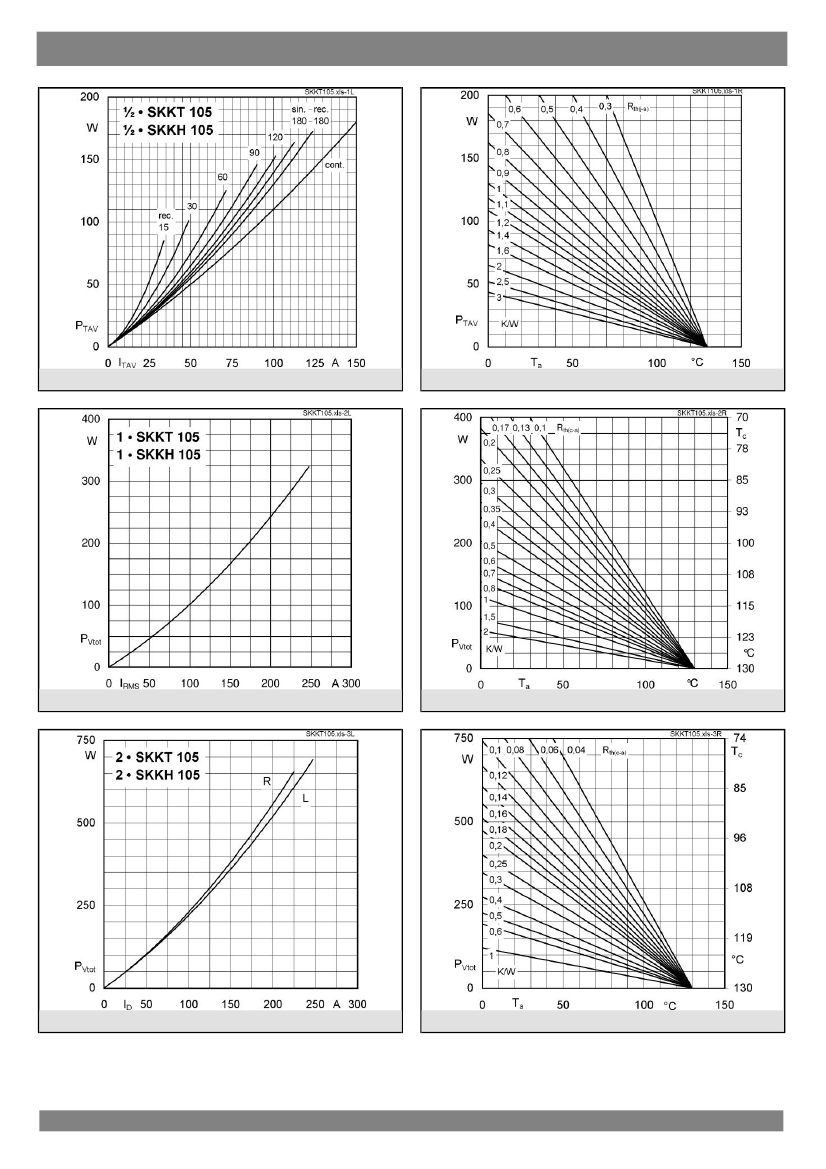

| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| package instruction | FLANGE MOUNT, R-CUFM-X4 |
| Contacts | 4 |
| Manufacturer packaging code | CASE A6 |
| Reach Compliance Code | compliant |
| Other features | HIGH RELIABILITY, UL RECOGNIZED |
| Shell connection | ISOLATED |
| Nominal circuit commutation break time | 150 µs |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Critical rise rate of minimum off-state voltage | 500 V/us |
| Maximum DC gate trigger current | 150 mA |
| Maximum DC gate trigger voltage | 3 V |
| Quick connection description | G |
| Description of screw terminals | A-K-AK |
| Maximum holding current | 250 mA |
| JESD-30 code | R-CUFM-X4 |
| JESD-609 code | e2 |
| Maximum leakage current | 20 mA |
| On-state non-repetitive peak current | 2300 A |
| Number of components | 1 |
| Number of terminals | 4 |
| Maximum on-state current | 106000 A |
| Maximum operating temperature | 130 °C |
| Minimum operating temperature | -40 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum rms on-state current | 180 A |
| Maximum repetitive peak off-state leakage current | 20000 µA |
| Off-state repetitive peak voltage | 400 V |
| Repeated peak reverse voltage | 400 V |
| surface mount | NO |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger device type | SCR |
| Base Number Matches | 1 |
