RN1114FT~RN1118FT
TOSHIBA Transistor
Silicon NPN Epitaxial Type (PCT Process)
RN1114FT, RN1115FT, RN1116FT, RN1117FT, RN1118FT
Switching, Inverter Circuit, Interface Circuit
and Driver Circuit Applications
Built-in bias resistors
Enabling simplified circuit design
Enabling reduction in the quantity of parts and manufacturing process
Complementary to the RN2114FT to 2118FT
Unit: mm
Equivalent Circuit and Bias Resistor Values
Type No.
RN1114FT
RN1115FT
RN1116FT
RN1117FT
RN1118FT
R
1
(kΩ)
1
2.2
4.7
10
47
R
2
(kΩ)
10
10
10
4.7
10
Absolute Maximum Ratings
(Ta = 25°C)
Characteristics
Collector-base voltage
Collector-emitter voltage
RN1114FT to 1118FT
RN1114FT
RN1115FT
Emitter-base voltage
RN1116FT
RN1117FT
RN1118FT
Collector current
Collector power dissipation
Junction temperature
Storage temperature range
RN1114FT to 1118FT
I
C
P
C
T
j
T
stg
V
EBO
Symbol
V
CBO
V
CEO
Rating
50
50
5
6
7
15
25
100
100
150
−55
to 150
JEDEC
―
JEITA
―
TOSHIBA
2-1B1A
Weight: 2.2 mg (typ.)
Unit
V
V
V
mA
mW
°C
°C
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly
even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute
maximum ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
1
2010-04-06

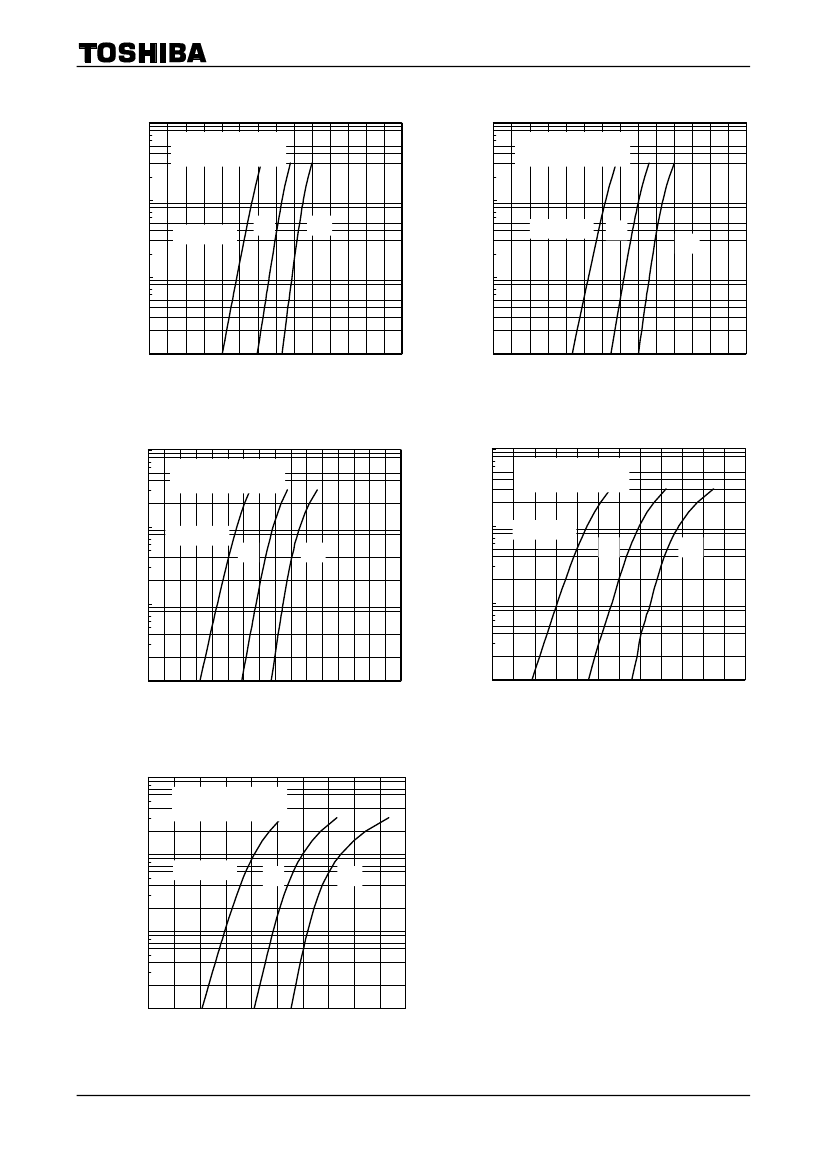

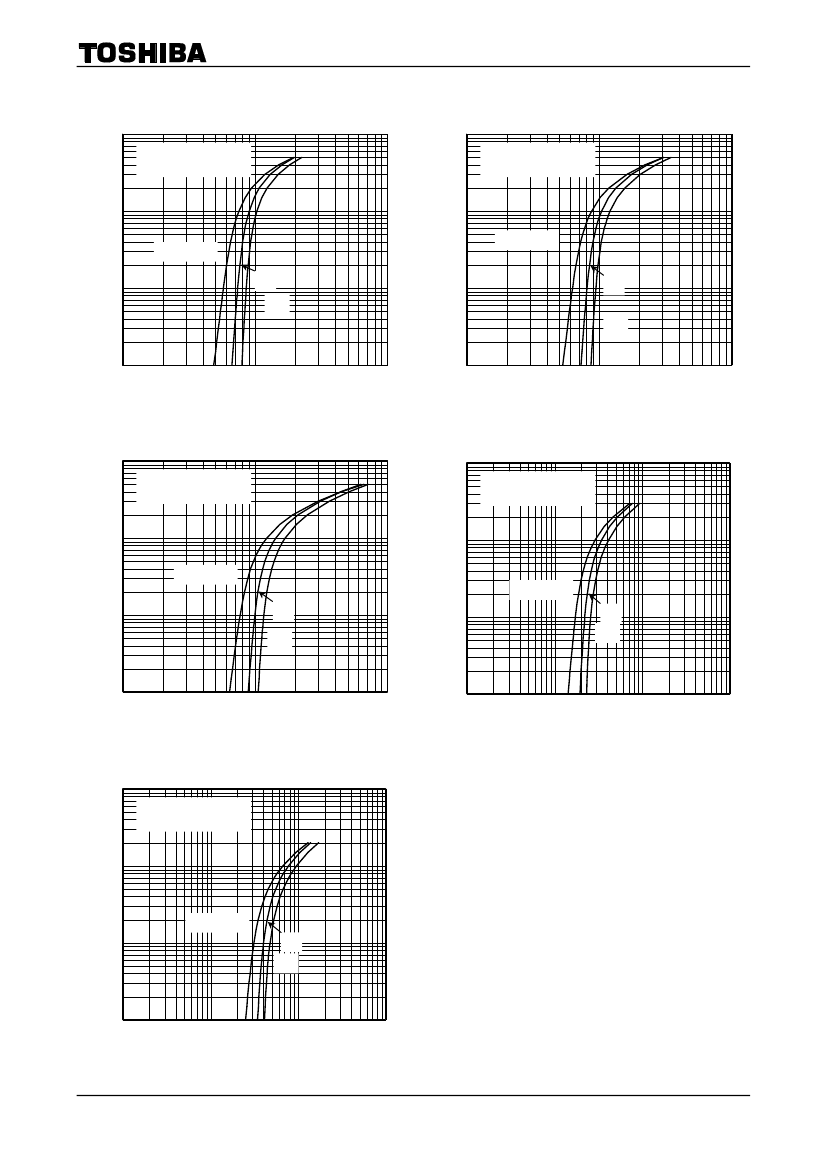

RN1114FT~RN1118FT
RN1114FT
100
COLLECTOR CURRENT
IC
(mA)
IC - VI (ON)
RN1115FT
100
COLLECTOR CURRENT IC (mA)
IC - VI (ON)
COMMON EMITTER
VCE = 0.2V
COMMON EMITTER
VCE = 0.2V
10
Ta = 100°C
1
10
Ta = 100°C
25
-25
1
25
-25
0.1
0.1
1
INPUT VOLTAGE
VI (ON) (V)
10
0.1
0.1
1
INPUT VOLTAGE
VI (ON) (V)
10
RN1116FT
100
COLLECTOR CURRENT IC (mA)
IC - VI (ON)
RN1117FT
100
COLLECTOR CURRENT IC (mA)
IC - VI (ON)
COMMON EMITTER
VCE = 0.2V
COMMON EMITTER
VCE = 0.2V
10
Ta = 100°C
10
Ta = 100°C
1
1
25
-25
25
-25
0.1
0.1
1
INPUT VOLTAGE
VI (ON) (V)
10
0.1
0.1
1
10
100
INPUT VOLTAGE
VI (ON) (V)
RN1118FT
100
COLLECTOR CURRENT IC (mA)
IC - VI (ON)
COMMON EMITTER
VCE = 0.2V
10
Ta = 100°C
1
25
-25
0.1
0.1
1
10
100
INPUT VOLTAGE
VI (ON) (V)
3
2010-04-06
RN1114FT~RN1118FT
RN1114FT
10000
COLLECTOR CURRENT IC (uA)
IC - VI (OFF)
RN1115FT
10000
COLLECTOR CURRENT IC (uA)
IC - VI (OFF)
COMMON EMITTER
VCE = 5V
COMMON EMITTER
VCE = 5V
1000
Ta = 100°C
1000
Ta = 100°C
25
-25
25
-25
100
100
10
0
0.2
0.4
0.6
0.8
1
1.2
1.4
INPUT VOLTAGE
VI (OFF) (V)
10
0
0.2
0.4
0.6
0.8
1
1.2
1.4
INPUT VOLTAGE
VI (OFF) (V)
RN1116FT
10000
COLLECTOR CURRENT IC (uA)
IC - VI (OFF)
RN1117FT
10000
COLLECTOR CURRENT IC (uA)
IC - VI (OFF)
COMMON EMITTER
VCE = 5V
COMMON EMITTER
VCE = 5V
1000
Ta = 100°C
1000
Ta = 100°C
25
-25
25
-25
100
100
10
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
INPUT VOLTAGE
VI (OFF) (V)
10
0.8
1.2
1.6
2
2.4
2.8
3.2
INPUT VOLTAGE
VI (OFF) (V)
RN1118FT
10000
COLLECTOR CURRENT IC (uA)
IC - VI (OFF)
COMMON EMITTER
VCE = 5V
1000
Ta = 100°C
25
-25
100
10
1
2
3
4
5
6
INPUT VOLTAGE
VI (OFF) (V)
4
