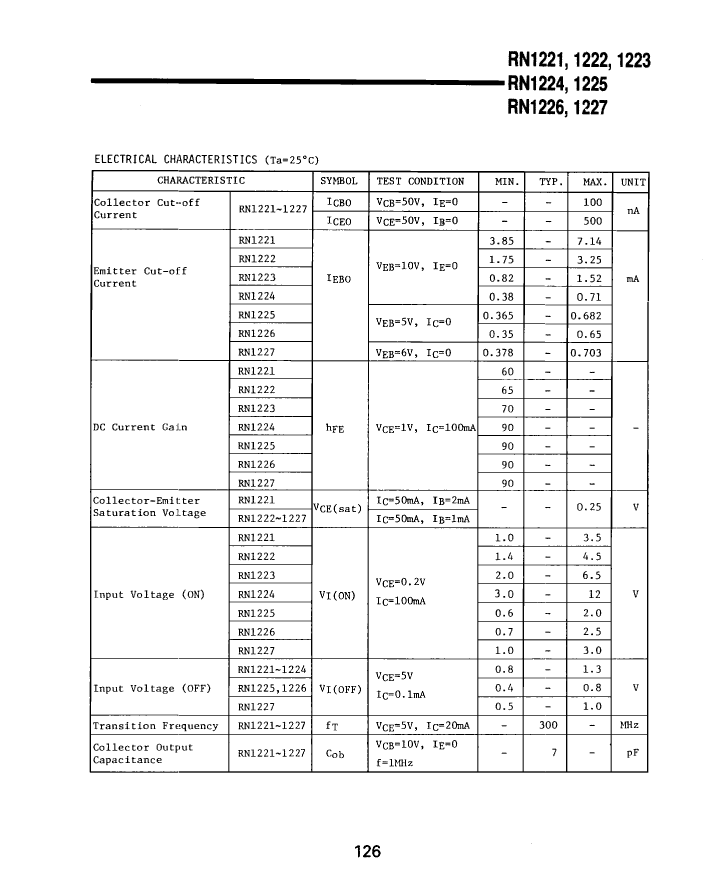

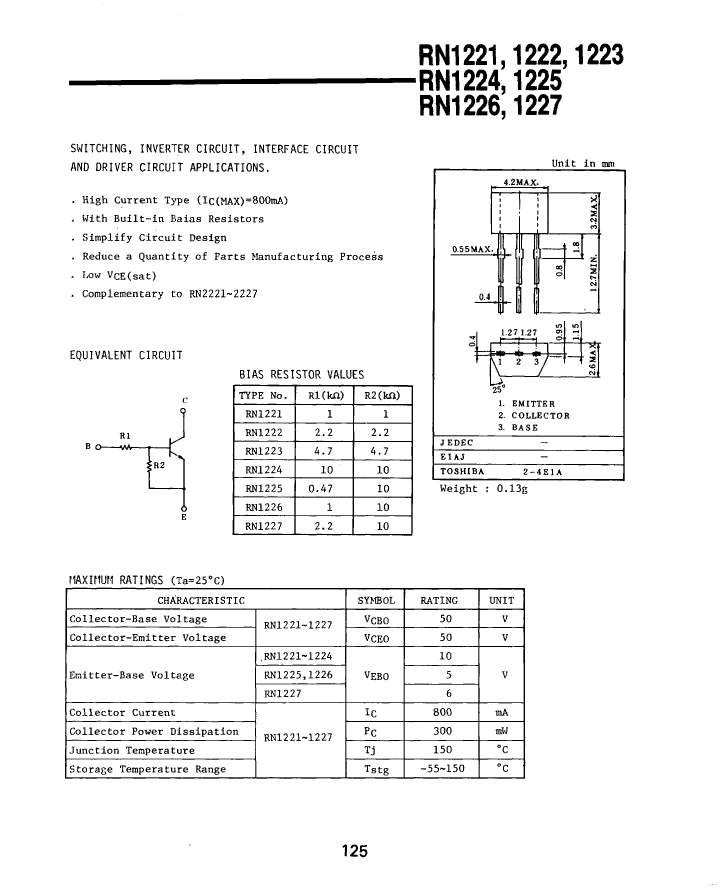

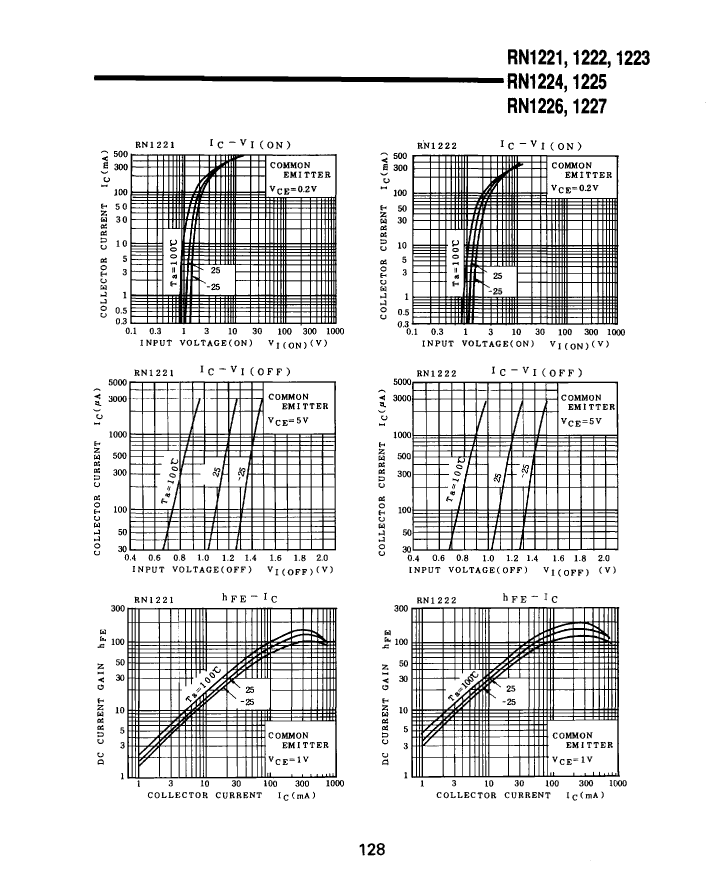

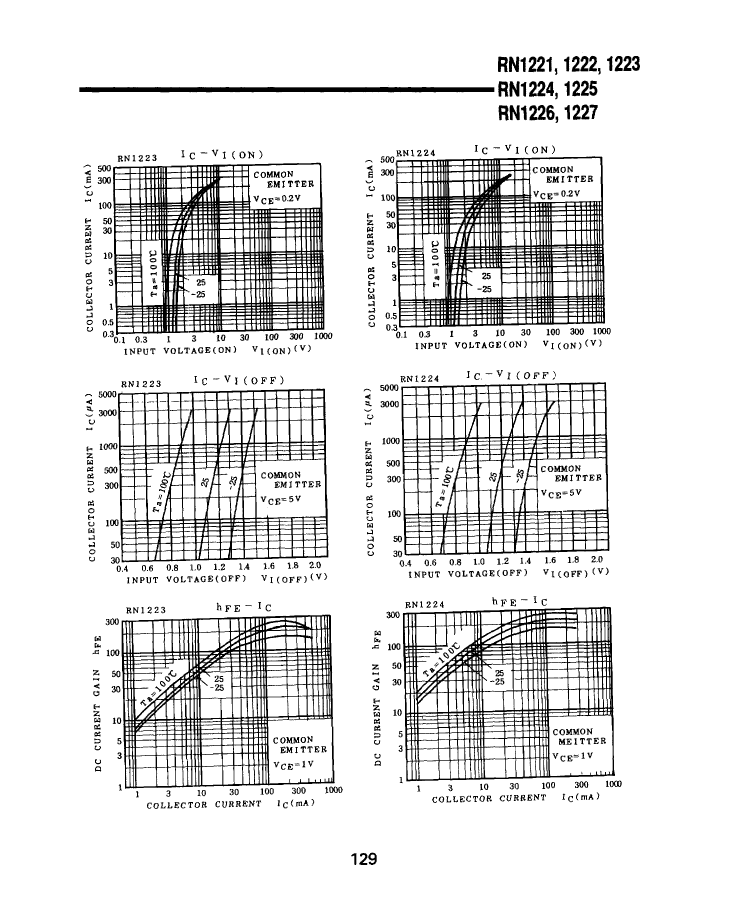

TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal
| Parameter Name | Attribute value |
| package instruction | IN-LINE, R-PSIP-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 1 |
| Maximum collector current (IC) | 0.8 A |
| Collector-emitter maximum voltage | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 65 |
| JESD-30 code | R-PSIP-T3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Polarity/channel type | NPN |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Nominal transition frequency (fT) | 300 MHz |
| Base Number Matches | 1 |
| RN1222(TPE4) | RN1227(TPE4) | RN1226(TPE4) | RN1223(TPE4) | RN1225(TPE4) | RN1224(TPE4) | |
|---|---|---|---|---|---|---|
| Description | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal | TRANSISTOR 800 mA, 50 V, NPN, Si, SMALL SIGNAL TRANSISTOR, 2-4E1A, 3 PIN, BIP General Purpose Small Signal |
| package instruction | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 | IN-LINE, R-PSIP-T3 |
| Contacts | 3 | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknow | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 0.22 | BUILT-IN BIAS RESISTOR RATIO IS 0.1 | BUILT-IN BIAS RESISTOR RATIO IS 1 | BUILT-IN BIAS RESISTOR RATIO IS 0.047 | BUILT-IN BIAS RESISTOR RATIO IS 1 |
| Maximum collector current (IC) | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A | 0.8 A |
| Collector-emitter maximum voltage | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Configuration | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR | SINGLE WITH BUILT-IN RESISTOR |
| Minimum DC current gain (hFE) | 65 | 90 | 90 | 70 | 90 | 90 |
| JESD-30 code | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 | R-PSIP-T3 |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Polarity/channel type | NPN | NPN | NPN | NPN | NPN | NPN |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Nominal transition frequency (fT) | 300 MHz | 300 MHz | 300 MHz | 300 MHz | 300 MHz | 300 MHz |
| Maker | - | Toshiba Semiconductor | - | Toshiba Semiconductor | Toshiba Semiconductor | Toshiba Semiconductor |
