108477096009050 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 108477096009050

108477096009050: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

108477096009050 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Plug, ROHS COMPLIANT

108477096009050 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1546727293
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.9
Other features	STANDARD: DIN 41612, POLARIZED
body width	0.433 inch
body length	3.736 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.2 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL, CSA
Terminal length	0.346 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N

Preview

Download Datasheet

View All

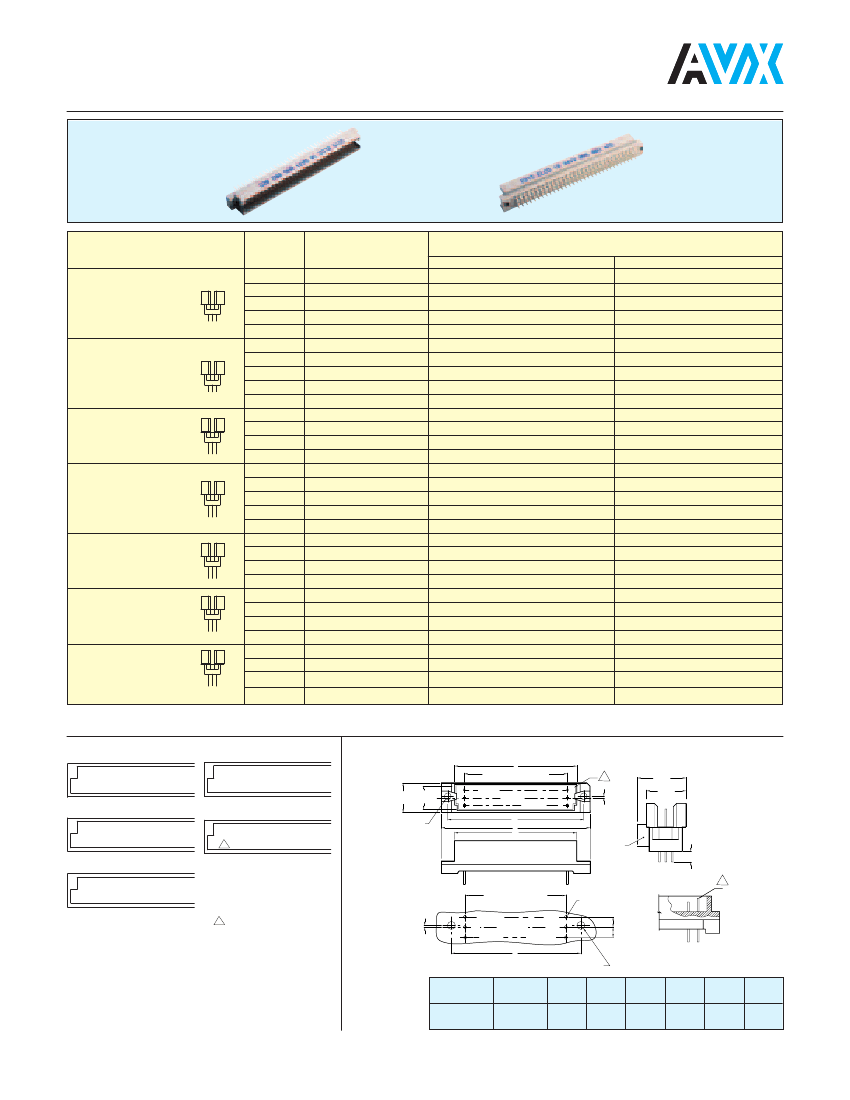

Male Style R

Series 8477 – 3 rows (3 x 32) Inverted

Contact Design

and

Termination Length

Number of

Contacts

94 + 2

Loading Description

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

fully loaded + ground

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

a + b + c fully loaded

a + c fully loaded

a + c even loading

a loading only

2.9 mm (Y)

Straight

4.5 mm (Y)

Straight

9.5 mm (Y)

Straight

13.0 mm (Y)

Straight

14.9 mm (Y)

Straight

8.8, 11.5, 8.8 mm (Y)

Solder Hole

7.5, 10.2, 7.5 mm (Y)

Solder Loop

Part Number

Performance classes according to DIN 41612

8477 096 001 025

10 8477 096 001

8477 096 001 026

10 8477 096 001

8477 096 001 033

10 8477 096 001

8477 096 001 027

10 8477 096 001

8477 096 101 025

10 8477 096 101

8477 096 002 025

10 8477 096 002

8477 096 002 026

10 8477 096 002

8477 096 002 033

10 8477 096 002

8477 096 002 027

10 8477 096 002

8477 096 102 025

10 8477 096 102

8477 096 005 025

10 8477 096 005

8477 096 005 026

10 8477 096 005

8477 096 005 033

10 8477 096 005

8477 096 005 027

10 8477 096 005

8477 096 006 025

10 8477 096 006

8477 096 006 026

10 8477 096 006

8477 096 006 033

10 8477 096 006

8477 096 006 027

10 8477 096 006

8477 096 106 025

10 8477 096 106

8477 096 007 025

10 8477 096 007

8477 096 007 026

10 8477 096 007

8477 096 007 033

10 8477 096 007

8477 096 007 027

10 8477 096 007

8477 096 009 025

10 8477 096 009

8477 096 009 026

10 8477 096 009

8477 096 009 033

10 8477 096 009

8477 096 009 027

10 8477 096 009

8477 096 010 025

10 8477 096 010

8477 096 010 026

10 8477 096 010

8477 096 010 033

10 8477 096 010

049

050

057

051

049

050

057

051

049

050

057

051

049

050

057

051

049

050

057

051

049

050

057

051

049

050

057

10 8477 096 010 027

10 8477 096 010 051

NB: Alternative Prefix Variations Available: 12, 14, 15, 16 & 17, please refer to Page 10.

Additional Plating & Loading Variations: Please contact your local AVX sales office or distributor.

LOADING DESCRIPTION

●

DIMENSIONS

●

11.0

[0.433]

8.74

[0.344]

A EQ SP @ 2.54 [0.100] = B

ROW A

ROW B

ROW C

KEYING

13.6

[0.535]

11.0

[0.433]

96 contacts,

rows a + b + c fully loaded

●

32 contacts, row a loading only

●

0.30

[0.012]

2.80 DIA.

[0.110]

64 contacts,

rows a + c fully loaded

●

For Y dimension

see contact design

94 + 2 contacts, fully loaded

with ground in A1 & A32

denotes ground pin

ROW B

0.30

[0.012]

HOLE PATTERN

2.84 DIA.

[0.112]

ROW C

2.54

[0.100]

A EQ SP @ 2.54 [0.100] = B

1.02 DIA.

[0.040]

ROW A

GROUND

CONTACT

32 contacts,

rows a + c even loading

Unit: millimeters (inches)

85.29

(3.358)

87.91

(3.461)

No. Contact

Positions

Contact

Rows

3 (3 x 32)

78.74

(3.100)

89.99 94.89

(3.543) (3.736)
