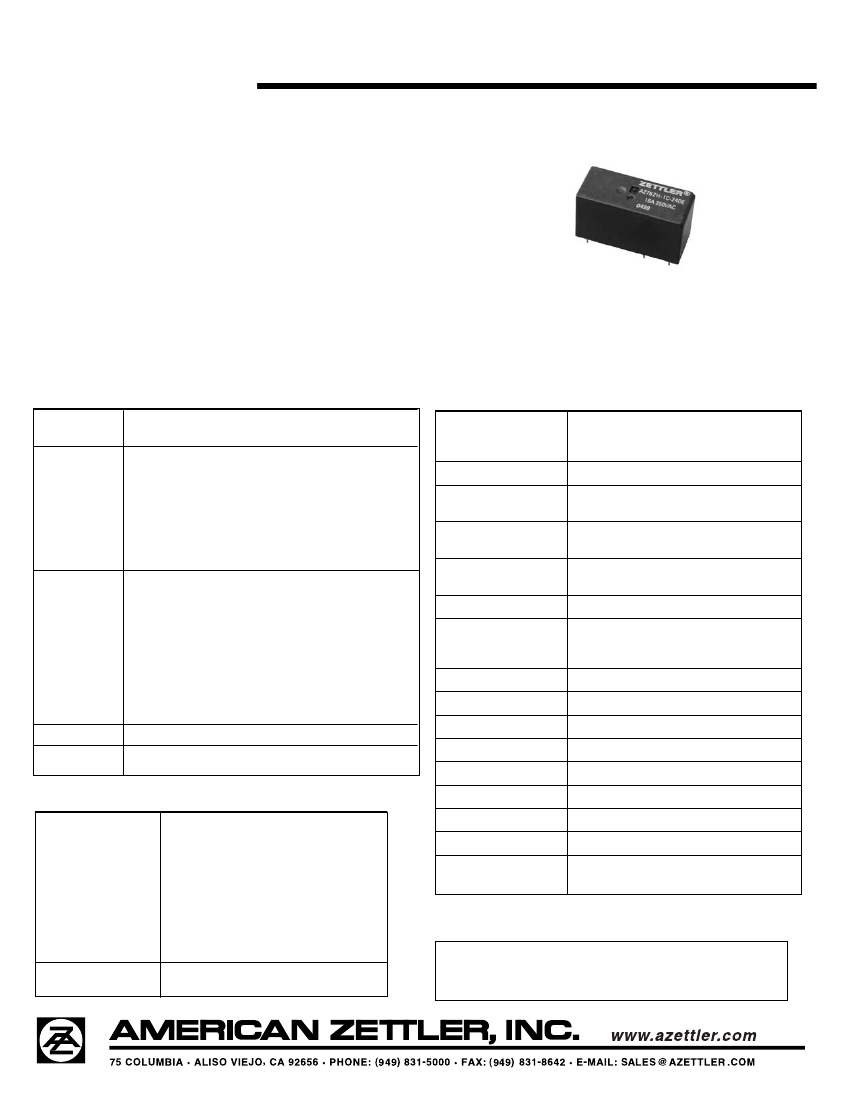

AZ762H
AZ
16 A SPDT MINIATURE HIGH
TEMPERATURE POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
High ambient operating temperature (105°C)
Dielectric strength 5000 Vrms
Low cost
Epoxy sealed versions available
16 Amp switching (standard coil only)
Class F system standard
Isolation spacing greater than 10 mm
UL, CUR file E44211, VDE40006031
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A)
Resistive load:
Max. switched power: 4000 VA
(Sensitve Version: 2500 VA)
Max. switched current: 16 A
(Sensitive version: 10A)
Max. switched voltage: 125* VDC or 440 VAC
*
Note: If switching voltage is greater than 30 VDC, special precau-
GENERAL DATA
Life Expectancy
Mechanical
Electrical
OperateTime (typical)
ReleaseTime (typical)
Dielectric Strength
(at sea level for1min.)
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Minimum operations
1 x 10
7
1 x 10
5
at 16 A 277 VAC general use
7 ms at nominal coil voltage
3 ms at nominal coil voltage
(with no coil suppression)
5000 Vrms coil to contact
1000 Vrms between open contacts
1000 megohms min. at 20°C
500 VDC 50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 105°C (221°F)
-40°C (-40°F) to 155°C (266°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P. C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
14 grams
tions must be taken. Please contact the factory.
Rated Load
UL, CUR
(Standard Coil)
18.4 A at 250 VAC resistive, 20k cycles (NO only) 105°C
16 A at 277 VAC general use, 100k cycles 105°C
5 A at 30 VDC resistive 100k cycles 105°C
(Sensitive Coil)
10 A at 277 VAC general use, 100k cycles 105°C
16 A at 250 VAC resistive, 105°C
Standard coils Class F Only
10 A at 250 VAC resistive, 105°C
Sensitive coils Class F Only
Silver nickel. Gold plating available
< 50 milliohms initially (using 6 V 1 A method)
VDE
Material
Resistance
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
196 mW Standard
140 mW Sensitive
1.7 W at 20°C (68°F) ambient
26°C (47°F) at nominal coil voltage
(standard coil)
17°C (31°F) at nominal coil voltage
(sensitive coil)
Max. Temperature
155°C (311°F) Class F
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
Weight
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
10/3/13
