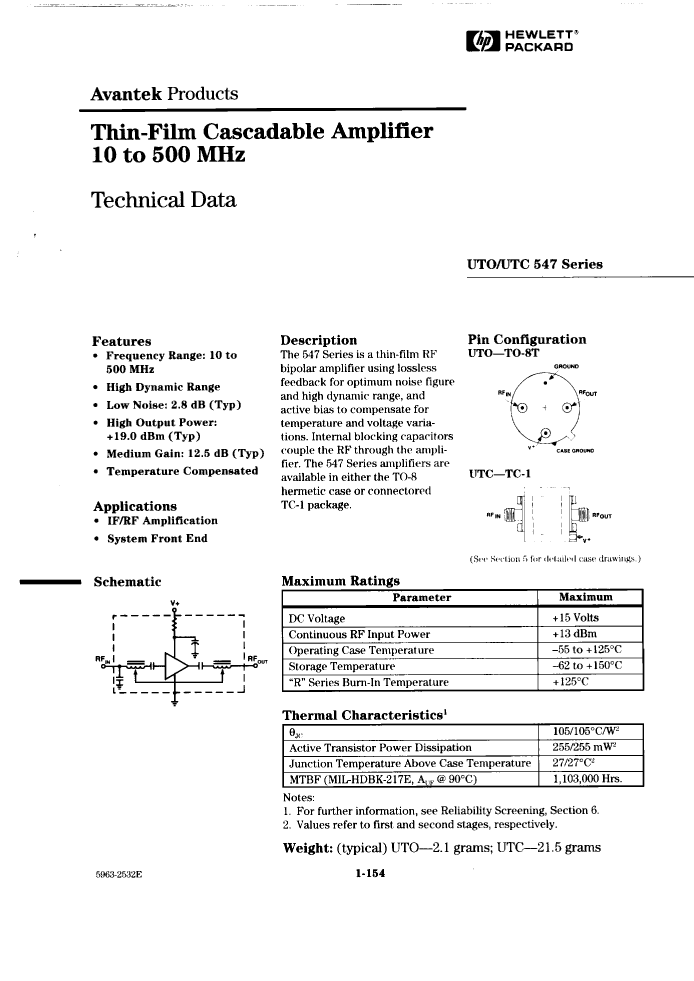

UTC-547-1 datasheet, PDF - EEWORLD Datasheet

UTC-547-1: DescriptionWide Band Low Power Amplifier, 10MHz Min, 500MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size102KB，3 Pages; ManufacturerHewlett Packard Co.

Download Datasheet Parametric Compare View All

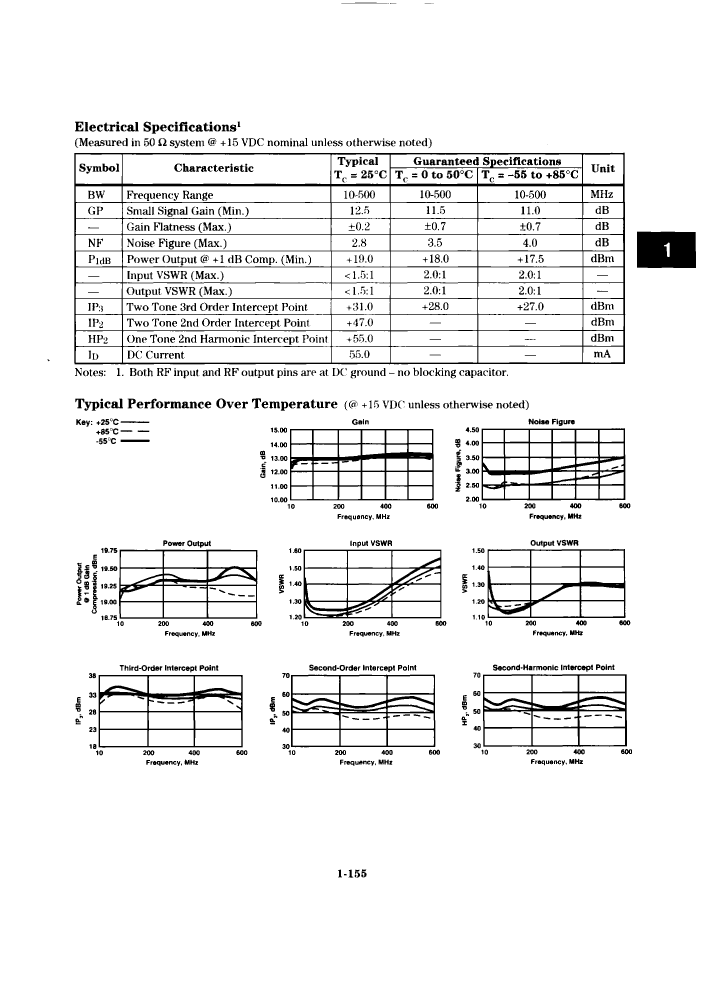

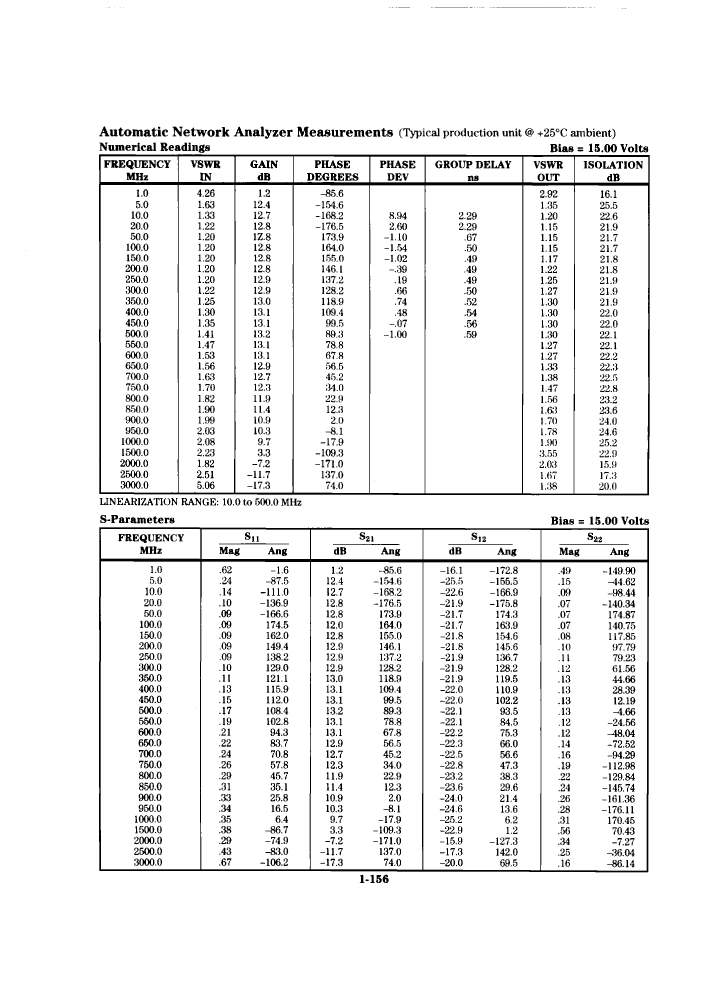

UTC-547-1 Overview

Wide Band Low Power Amplifier, 10MHz Min, 500MHz Max,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Characteristic impedance	50 Ω
structure	MODULE
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

	UTC-547-1	UTO-547	UTO-547R
Description	Wide Band Low Power Amplifier, 10MHz Min, 500MHz Max,	Wide Band Low Power Amplifier, 10MHz Min, 500MHz Max, 1 Func, Hybrid,	Wide Band Low Power Amplifier, 10MHz Min, 500MHz Max, 1 Func, Hybrid,
Reach Compliance Code	unknown	unknown	unknown
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	MODULE	MODULE	MODULE
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	500 MHz	500 MHz	500 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
Is it Rohs certified?	-	incompatible	incompatible
Maker	-	Hewlett Packard Co.	Hewlett Packard Co.
package instruction	-	CAN4,.3	CAN4,.3
JESD-609 code	-	e0	e0
Number of functions	-	1	1
Number of terminals	-	4	4
Package body material	-	METAL	METAL
Encapsulate equivalent code	-	CAN4,.3	CAN4,.3
power supply	-	15 V	15 V
technology	-	HYBRID	HYBRID
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
