Thin-Film Cascadable Amplifier
10 to 100 MHz
Technical Data
UTO/UTC 111 Series
Features
• Frequency Range: 10 to
100 MHz
• Low Noise: 1.4 dB (Typ)
• Medium Power: 16.8 dBm
(Typ)
• Temperature Compensated
Description
The 111 Series is a single-stage,
high-gain silicon bipolar amplifier
that incorporates thin-film tech-
nology. Low noise figure and high
efficiency are the result of an
output transformer coupling
design. Active bias circuits
provide temperature compensa-
tion and increased immunity to
bias voltage variations. Blocking
capacitors couple the RF through
the amplifier, while a low VSWR is
maintained through unique
transformer designs. The 111
Series is available in either the
TO-8 hermetic package or the
connectored TC-1A package.
Pin Configuration
UTO—TO-8T
GROUND
RF IN
RFOUT
V+
CASE GROUND
Applications
• Low Frequency IF Stages
• Medical Instruments:
Ultra-Sound, Magnetic
Resonance
• High Efficiency or Battery
Powered Systems
UTC—TC-1A
RF IN
RF OUT
V+
Schematic
V+
Maximum Ratings
Parameter
DC Voltage
Continuous RF Input Power
Operating Case Temperature
Storage Temperature
“R” Series Burn-In Temperature
Maximum
17 Volts
+13 dBm
–55 to +125°C
–62 to +150°C
+125°C
RF
IN
RF
OUT
Thermal Characteristics
1
θ
JC
Active Transistor Power Dissipation
Junction Temperature Above Case Temperature
MTBF (MIL-HDBK-217E, A
UF
@ 90°C)
105°C/W
110 mW
12°C
848,400 Hrs.
Weight:
(typical) UTO — 2.1 grams; UTC — 21.5 grams
2
Electrical Specifications
(Measured in 50
Ω
system @ +15 VDC nominal)
Symbol
BW
GP
—
NF
P
1dB
—
—
IP
3
IP
2
HP
2
I
D
Characteristic
Frequency Range
Small Signal Gain (Min.)
Gain Flatness (Max.)
Noise Figure (Max.)
Power Output @ +1 dB Comp. (Min.)
Input VSWR (Max.)
Output VSWR (Max.)
Two Tone 3rd Order Intercept Point
Two Tone 2nd Order Intercept Point
One Tone 2nd Harmonic Intercept Point
DC Current
Typical
Guaranteed Specifications
T
C
= 25°C T
C
= 0 to 50°C T
C
= –55 to +85°C
10-100
11.5
±
0.1
1.4
+16.8
1.4:1
1.3:1
+33.0
+47.0
+53.0
14
10-100
10.5
±
0.3
1.7
+15.5
2.0:1
2.0:1
+28.0
—
—
—
10-100
10.0
±0.5
2.0
+15.5
2.0:1
2.0:1
+28.0
—
—
—
Unit
MHz
dB
dB
dB
dBm
—
—
dBm
dBm
dBm
mA

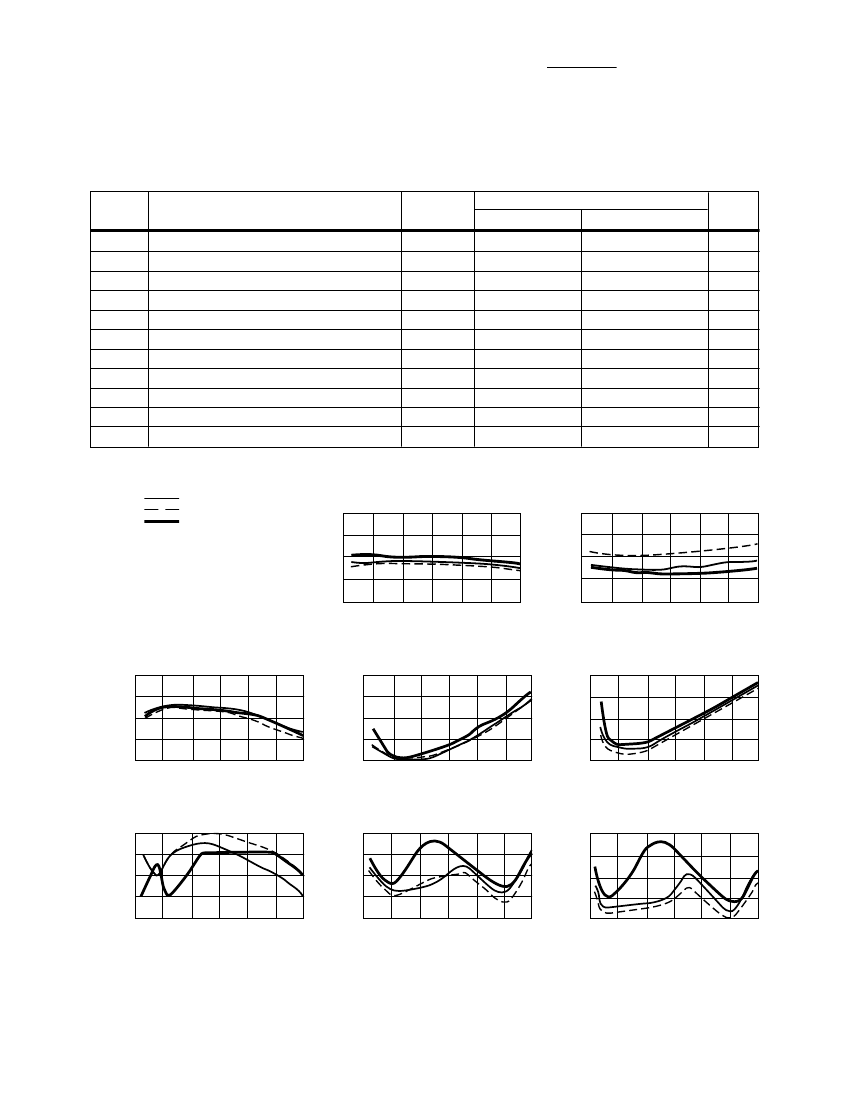

Typical Performance Over Temperature
(@ +15 VDC unless otherwise noted)
Noise Figure, dB
Key: +25
°
C
+85
°
C
-55
°
C
Gain, dB
Gain
14
13
12
11
10
0
50
100
150
Frequency, MHz
2.5
2.0
1.5
1.0
0.5
0
Noise Figure
T
50
100
150
Frequency, MHz
Power Output
Power Output
@ 1 dB Gain
Compression, dBm
Input VSWR
2.0
1.8
VSWR
VSWR
Output VSWR
1.8
1.6
1.4
1.2
19
18
17
16
15
0
50
100
150
1.6
1.4
1.2
0
50
100
150
1.0
0
50
100
150
Frequency, MHz
Frequency, MHz
Frequency, MHz
Third-Order Intercept Point
35
34
33
32
31
0
50
100
Frequency, MHz
150
60
55
50
45
40
0
Second-Order Intercept Point
65
HP
2
, dBm
Second-Harmonic Intercept Point
61
57
53
IP
3
, dBm
IP
2
, dBm
50
100
Frequency, MHz
150
49
0
50
100
Frequency, MHz
150
4
Product Options
UTO – 509R
Model Number Prefix
UTO-
UTM-
PPA-
Screening Option
Blank = No Screening
R = R-Series Screening
For more information on R-Series screening,
see Reliability Screening, Pub. 5963-3240E.
Model Number
UTC – 509-1
Model Number Prefix
UTC-
Connector Option
For TC-1 case the only connector option
available is the -1. The -1 option consists
of a SMA Female connector on both the
input and output (see note).
Model Number
Note: R-Series screening is not available in the TC-1 case as the case is non-hermetic.
